Supero X7DVL-3 User Manual

Chapter 2: Installation
2-15
LAN1
®
S
UPER X7DVL-3
FP Control
Fan3
IDE1
Fan4
SATA3
SATA5
PCI 33 MHz
Battery
GLAN
CTRLR
North Bridge
COM1
ATX PWR
8-Pin
PWR
24-Pin
CPU2
South
Bridge
Fan1
SATA2
SATA4
SATA1
SATA0
Slot1
PCI-X 133 MHz
JPL2
Slot5
DIMM
1A (B
ank 1)
DIMM 1B (Bank 1)
DIMM 1C
(B
ank 1)
DIMM 2A (Bank 2)
DIMM 2B (Bank 2)
DIMM 2C
(B
ank 2)
JBT1
JCOM2
KB/
Mouse
USB 0/1
5000V
LAN2
Fan5
Fan6
JPWF
JAR
PWR
I
2
C
VGA
Slot6
PCI-X 133 MHz
PCI-E x8
JPG1
JWD
Printer
JPL1
JI
2
C1
JI
2
C2
JWOR
JWOL
Fan2
CPU1
LE2
LE3
LE1
LE5
LE4
SAS0
USB2/3
JPF
Buzzer
ESB2
VGA
CTRLR
T-SGPIO1
JL1
D31
I-Button
SIMLP
Floppy
USB4/5
T-SGPIO0
JD1
BIOS
SAS1
SAS2
SAS3
SAS4
SAS5
SAS6
SAS7
CPU VRM
CPU VRM
Graphics
Memory
S I/O
LSI SAS
Contro
ller
JF1
3-SGPIO1
3-SGPIO0
JPA2
JPA1

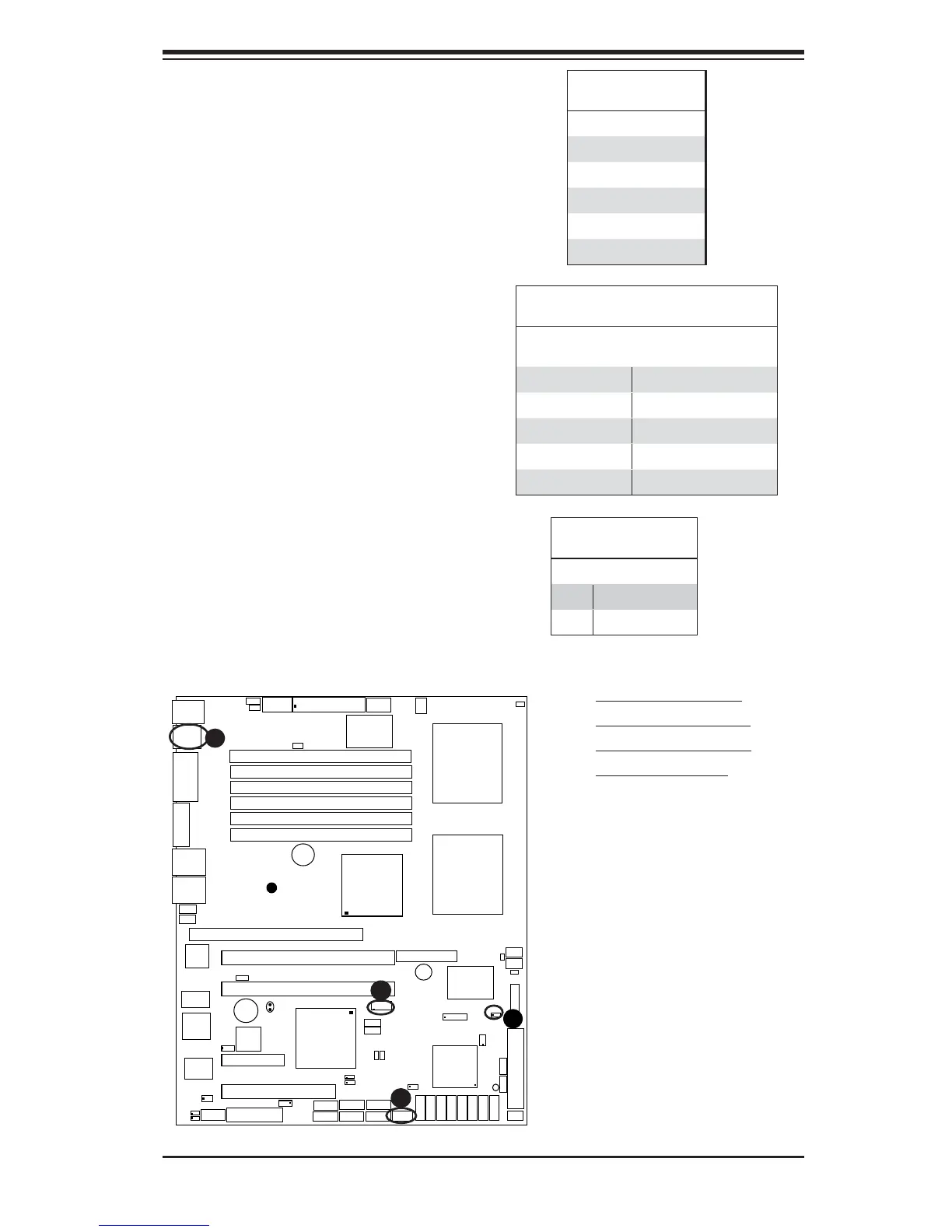

Universal Serial Bus (USB)
There are six USB 2.0 (Universal
Serial Bus) ports/headers on the
motherboard. Two of them are Back
Panel USB ports (USB#0/1:J20), and
the other four are Front Panel USB
headers (JUSB1: USB#2/3 JUSB2
USB#4/#5). See the tables on the
right for pin defi nitions.
Chassis Intrusion
A Chassis Intrusion header is located
at JL1 on the motherboard. Attach the
appropriate cable from the chassis to
inform you of a chassis intrusion when
the chassis is opened.
Chassis Intrusion
Pin Defi nitions (JL1)
Pin# Defi nition
1 Intrusion Input
2 Ground
A
B
C
A. Backpanel USB 0/1
B. Front Panel USB 2/3
C. Front Panel USB 4/5
D. Chassis Intrusion
Back Panel USB
(USB0/1)
Pin# Defi nitions
1+5V
2PO-
3PO+
4 Ground
5N/A
Front Panel USB
Pin Defi nitions (USB2/3/4/5)
USB2/3
Pin # Defi nition
USB4/5
Pin # Defi nition
1 +5V 1 +5V
2 PO- 2 PO-
3 PO+ 3 PO+
4 Ground 4 Ground
5 Key 5 No connection
D
