4-4
X7DVL-3/X7DVL-i User's Manual
IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave, SATA
Port2 and SATA Port3
These settings allow the user to set the parameters of IDE Channel 0 Master/
Slave, IDE Channel 1 Master/Slave, IDE Channel 2 Master, IDE Channel 3 Master
slots. Hit <Enter> to activate the following sub-menu screen for detailed options
of these items. Set the correct confi gurations accordingly. The items included in
the sub-menu are:

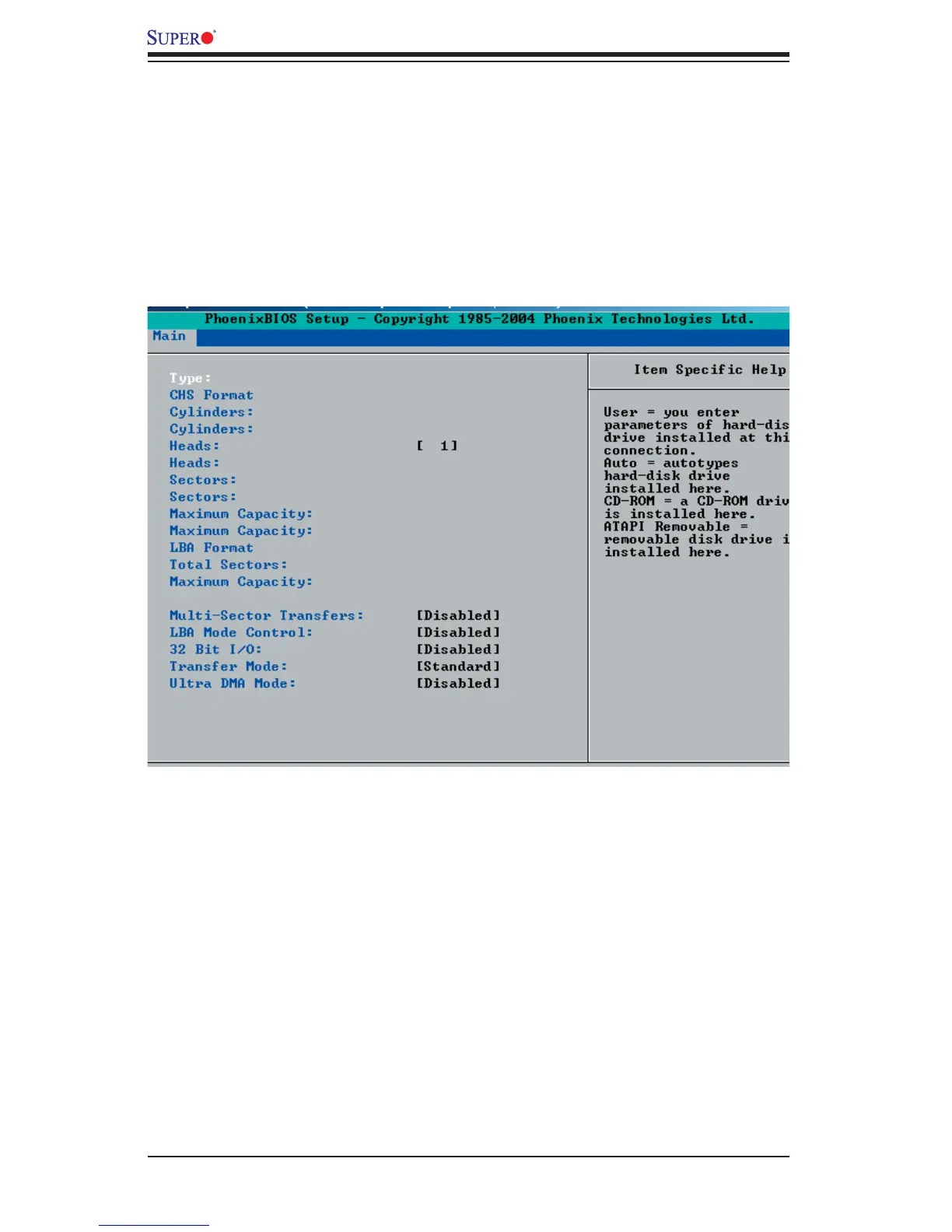

Type
This option allows the user to select the type of IDE hard drive. The option
Auto will allow the BIOS to automatically confi gure the parameters of the
HDD installed at the connection. Enter a number between 1 to 39 to select a
predetermined HDD type. Select User to allow the user to enter the parameters
of the HDD installed. Select CDROM if a CDROM drive is installed. Select ATAPI
if a removable disk drive is installed.
