Chapter 1: Introduction
1-3

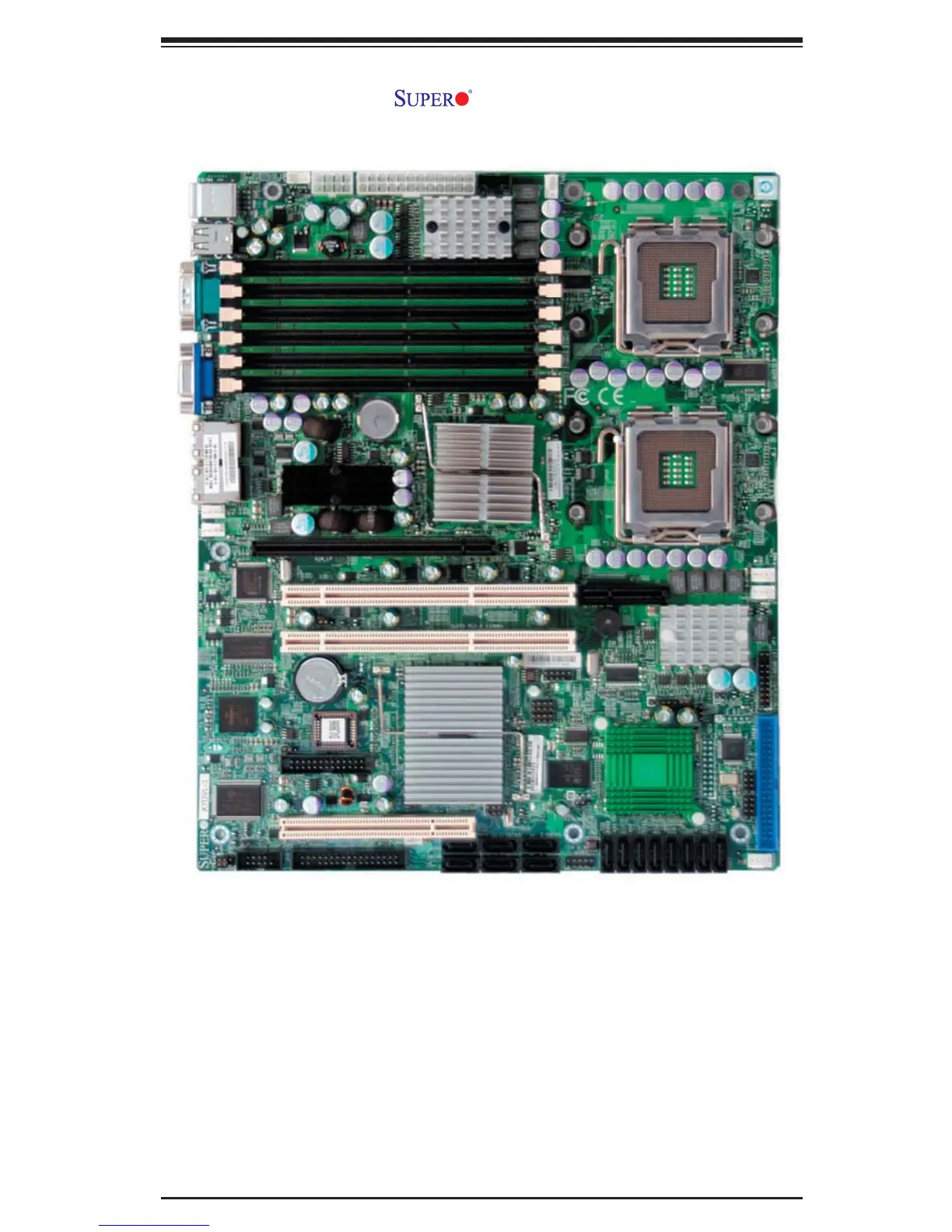

Figure 1-1. X7DVL-3/X7DVL-i Image
*Note: The drawings and pictures shown in this manual were based on the
latest PCB Revision available at the time of publishing of the manual. The
motherboard you’ve received may or may not look exactly the same as the
graphics shown in the manual.
