2. Brief Introduction
2.1 Operating Principle
 Wheel Loader Weigher is a dynamic weighing and auto-totalizing equipment installed on wheel
loader without changing the original structure of wheel loader.
 When the lift-arm of wheel loader lifted to a certain height, the position sensor will trigger the
weighing process, and the weighing indicator will collect the oil pressure signal from lower and upper
oil chambers of arm-lifting oil cylinder. After signal processing and compensating,
Single-bucket-loading-weight will be got and totalized to Totalized Loading Weight automatically,
and the Deviation Value between Totalized Loading Weight and Setpoint, alarm messages will be
displayed. The operator can judge if the present Single-bucket-loading-weight is valid according to
the alarm messages, and confirm the loading weight of last bucket according to Negative Deviation
Value for avoiding overloading. After Totalized Loading Weight reached setpoint, the operator should
stop loading process, save and print Loading Records.

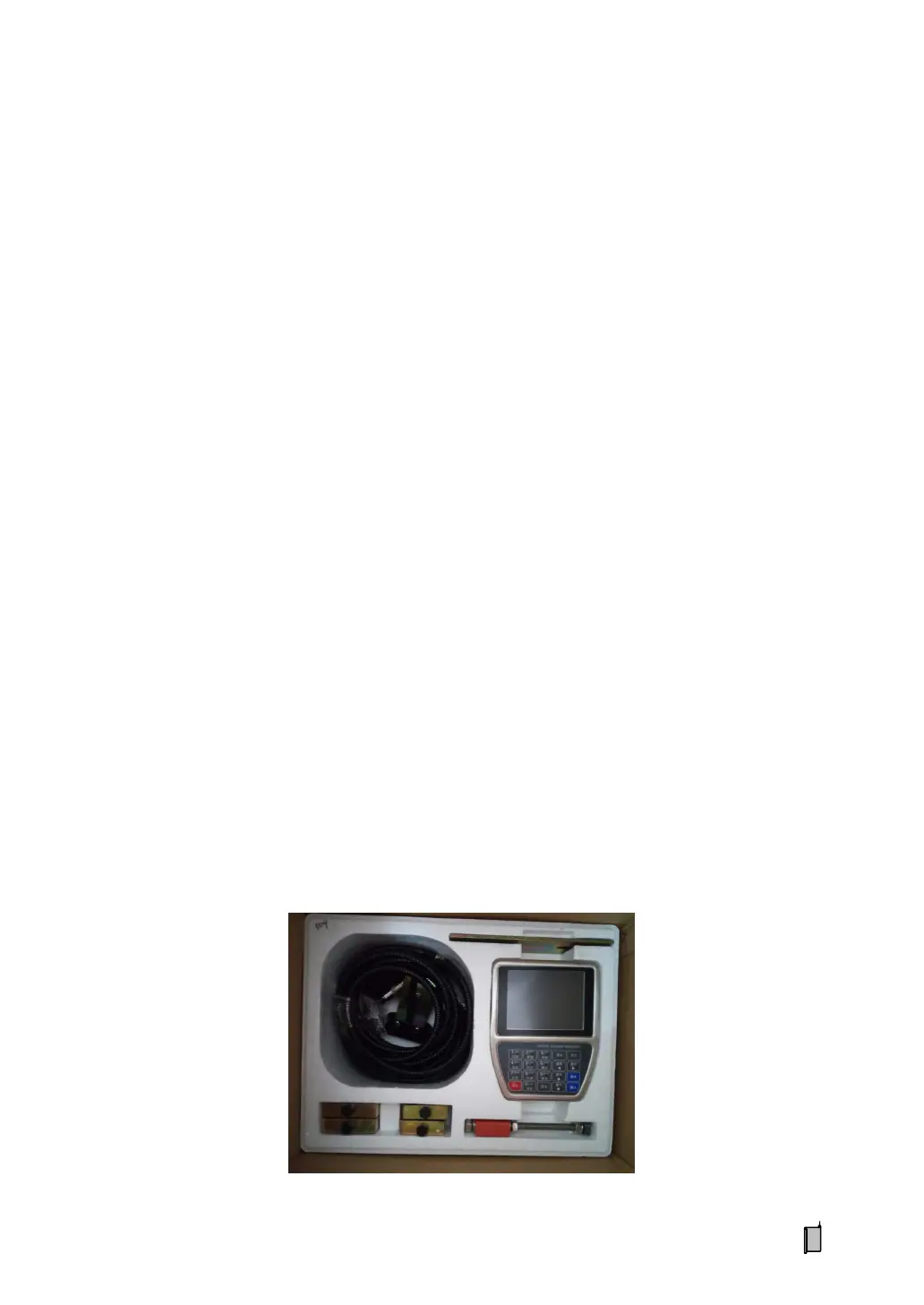

2.2 System Configuration
 1 Weighing Indicator with Thermal Printer.
 1 Position Sensor.
 2 Oil Pressure Sensors.
 2 Plate Type Three-way Joints.
 1 Mounting Fitting.
2.3 Applicable Wheel Loaders
Suitable for the wheel loader series with loading capacity 1~12t.
