Section 8
8-14

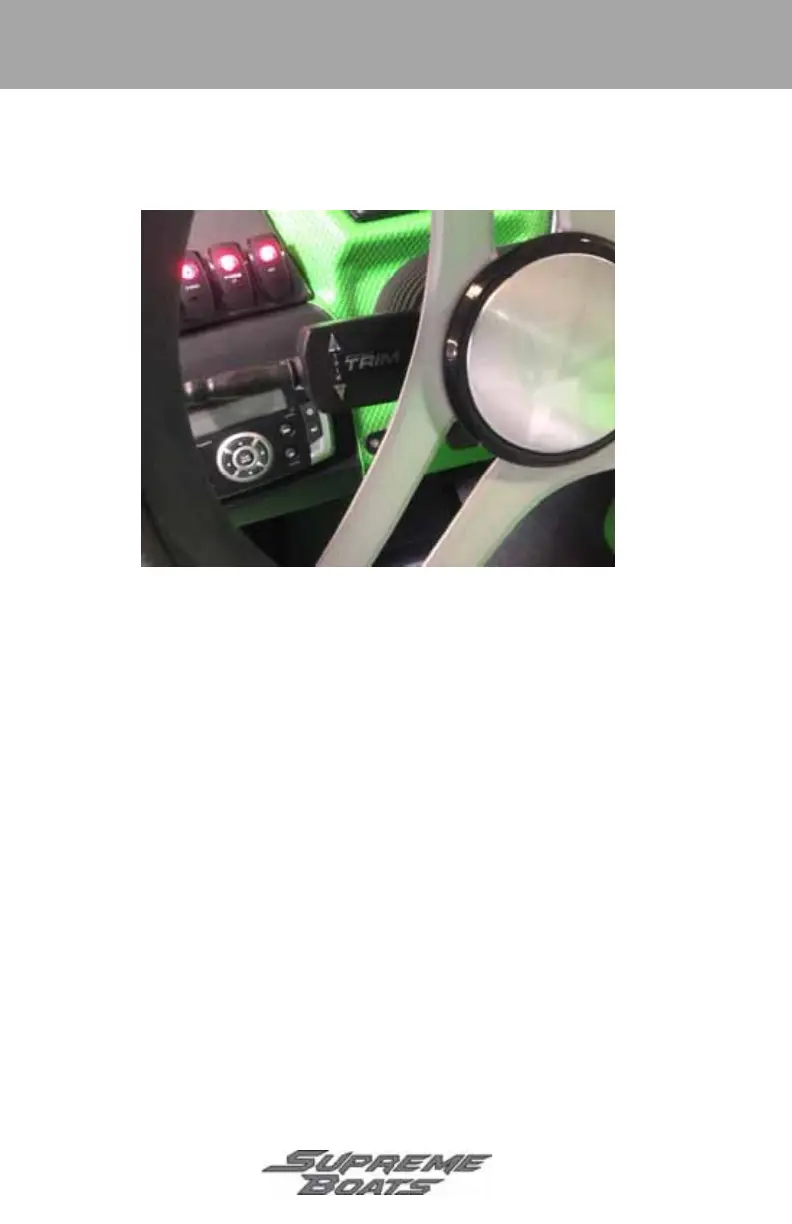

Trim Tab Switch (Optional)
The trim tab switch controls the up or down movement of the stinger wake plate.
Figure 14
Figure 8-14
Ballast Tank Switch (Optional)
Ballast tank filling and draining is controlled by the Touch Vision II system. See
separate Owner’s Manual for operation.
Cockpit Heater Switch (Optional)
The heater switch turns on the optional cockpit area heater blower. For additional
information on the cockpit heater system, see Cockpit Heater System
(Optional) on page 8-25 and the Heater System Operator’s manual.
FUEL SYSTEM
Basic fuel systems consist of one or more fuel tanks, tank vents, a level sensor
and gauge, lines, pumps and valves.
Each tank has an antisiphon valve to prevent fuel from leaking out of the tank
should a break occur in the system at a point other than the tank.
