Audio Output

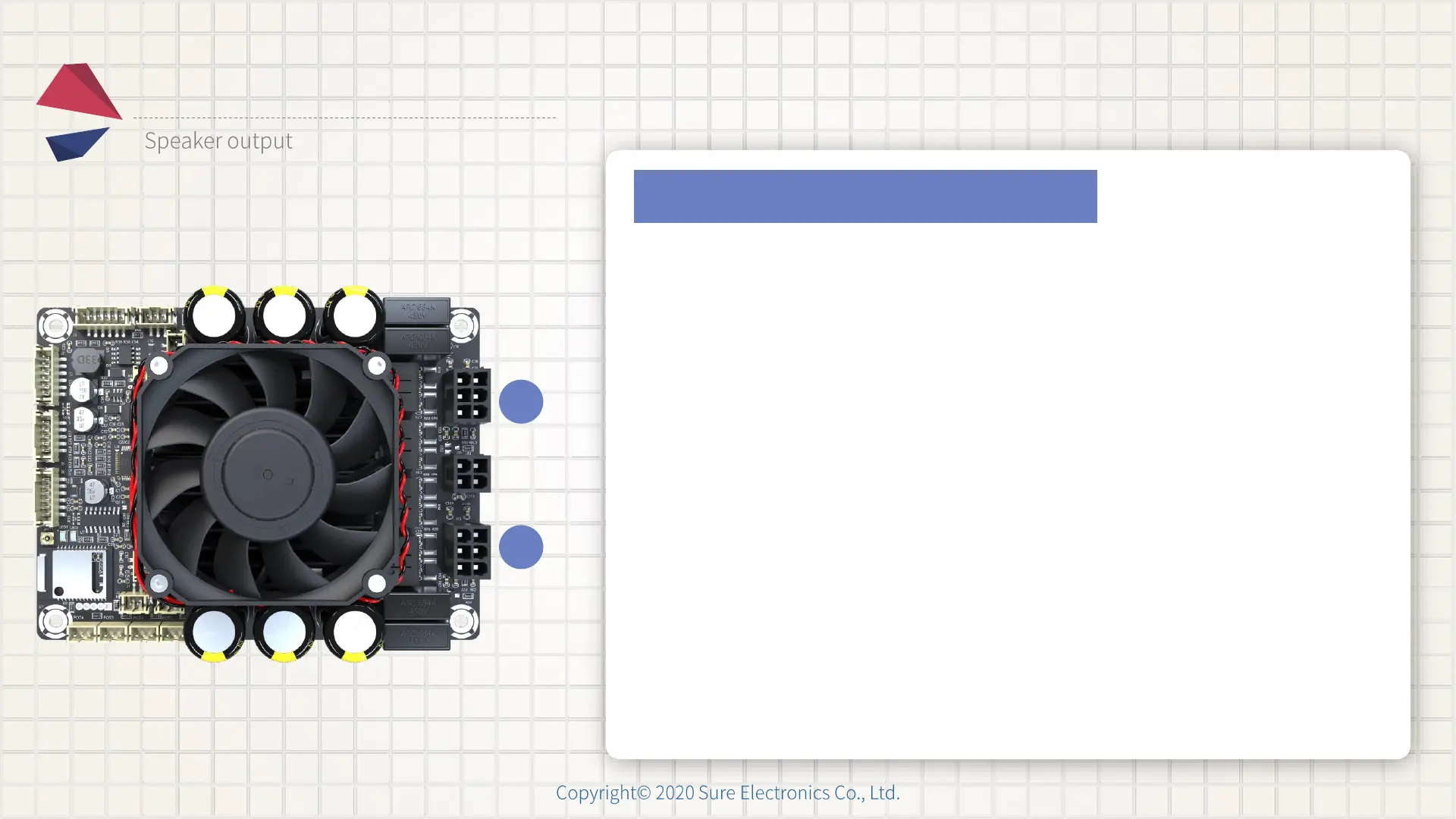

5. Stereo speaker output – J13, J14
JAB5 works as 4 x 100W. It also supports configured as 2.0 /
0.2 mode (2 x 200W) or 2.1 mode (2 x 100W + 1 x 200W).
The switching is achieved by automatic cables
identification.
If you want to use JAB5 as 0.2 mode, you need to set
frequency in the PC UI. 0.2 mode is not supported when
using hardware control.
The terminal blocks used for speaker output is Molex-
MiniFit-2x3Pos-4.2mm.
Two speaker cables come with JAB5 as the basic cables.
5
5
J14
J13
