2.3 Output Connections
You can use either terminal blocks or banana connectors(optional) to output audio
signal.

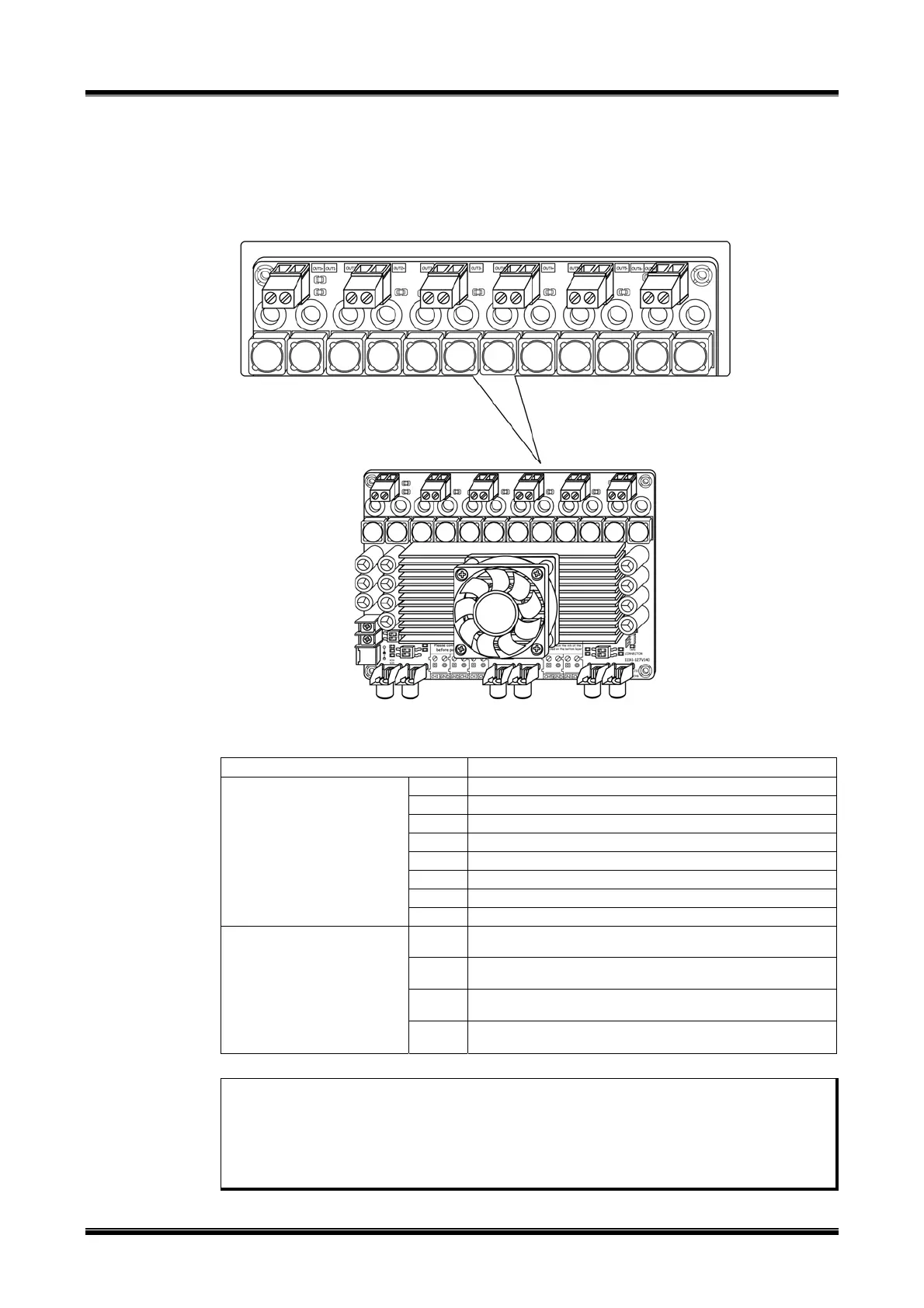

FIGURE 2-3 OUTPUT CONNECTION
TABLE 2-3 OUTPUT CONNECTION
Connector Mark Description
J21 Positive Output of Channel 1
J22 Negative Output of Channel 1
J23 Positive Output of Channel 2
J24 Negative Output of Channel 2
J29 Positive Output of Channel 5
J30 Negative Output of Channel 5
J31 Negative Output of Channel 6
Banana Connectors
J32 Positive Output of Channel 6
J15 Output of Channel 1
J16 Output of Channel 2
J19 Output of Channel 5
Terminal blocks*
J20 Output of Channel 6
Note:
1. Never connect more than one group of speaker to the audio output
2. Never connect CH1_OUT- 、CH2_OUT- 、CH5_OUT-、CH6_OUT- together
since they belong to different NETs.
3. Refer to on-board descriptions for connection details.
