2.2 Input Connections
You may use RCA connectors to input audio signal.

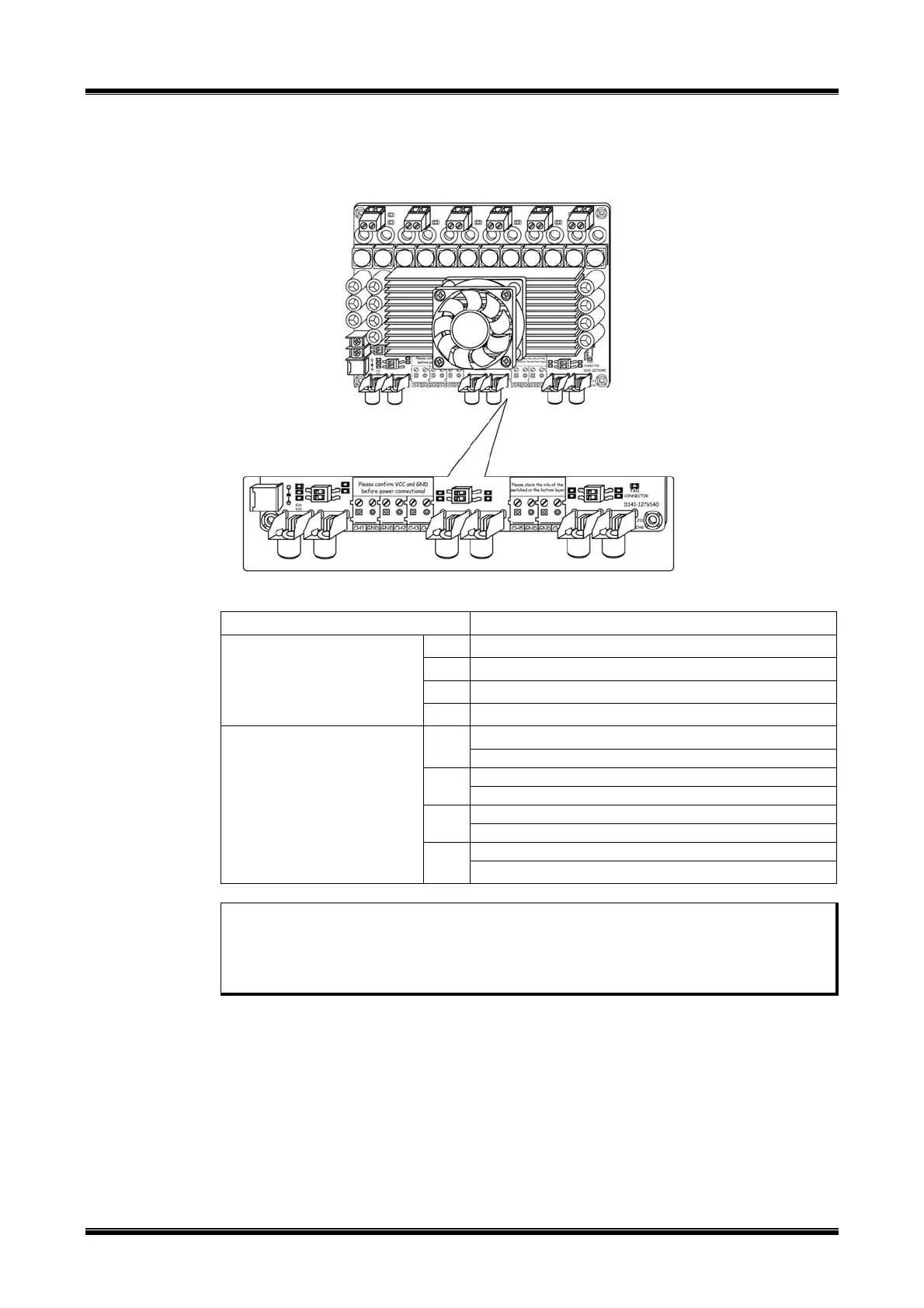

FIGURE 2-2 INPUT CONNECTION
TABLE 2-2 INPUT CONNECTION
Connector Mark Channel Description
J6 Channel 1 Input
J7 Channel 2 Input
J10 Channel 5 Input
RCA connector
J11 Channel 6 Input
Channel 1 Input
J1
GND
GND
J2
Channel 2 Input
Channel 5 Input
J4
GND
GND
Terminal Blocks（Optional）
J5
Channel 6 Input
Warning:
1.You are allowed to feed only one group (dual channel) of audio signal to the
amplifier board at a time.
2.Never plug in or unplug RCA connectors when the amplifier is powered. Or the
amplifier will be damaged permanently.
