Sure Electronics TPA3110 - 1.4 Applications; 1.5 Benefits; 1.6 Quick Start

2 X 8Watt Class D Audio Amplifier Board - TPA3110
© 2004-2012 Sure Electronics Inc.
A
A-AB32231_Ver1.0_Page10
y High Output Power
5W @ 8Ω, < 10.0% THD+N
8W @ 4Ω, < 10.0% THD+N
y High Efficiency
92% @ 4W 8Ω
85% @ 6W 4Ω
y Audiophile Quality Sound
0.1% THD+N @ 3W 8Ω
0.1% THD+N @ 6W 4Ω
y Over/under voltage protection
y Over current protection
y Over temperature protection
1.4 Applications
y Active subwoofer
y Home DIY
y Multiple-channel Distribution
y Active DVD System
y Mini/Micro Systems
1.5 Benefits
y Mounting holes facilitate installation and fixing
y Several wiring methods facilitate connection：RCA Socket (Default),Terminal
Block(Optional)
y Excellent heat dissipation eliminates the requirement of an extra heat sink.
1.6 Quick Start

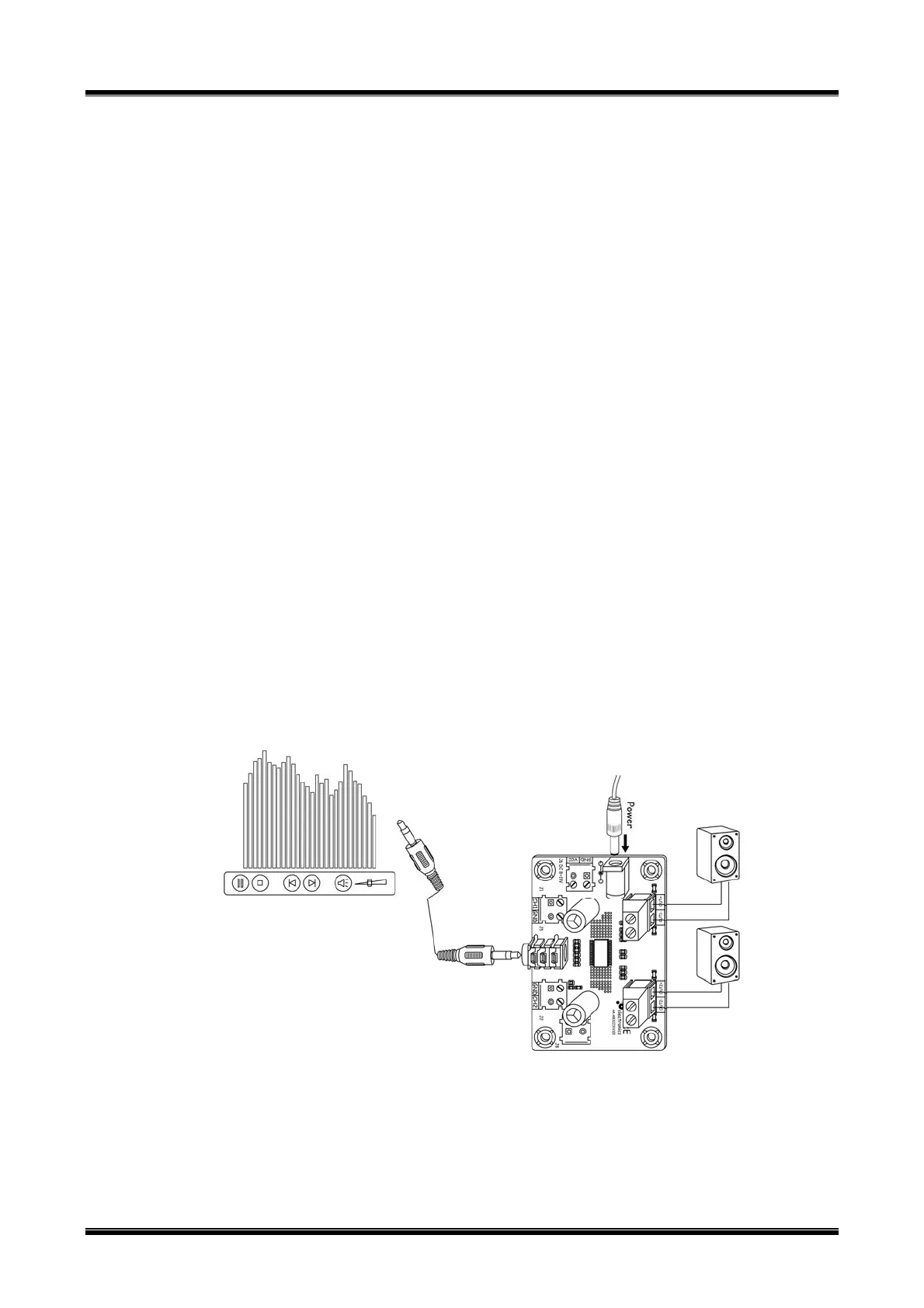

Suggested connection is shown in figure 1-3.
FIGURE 1-3 CONNECTION SCHEMATIC
