Sure Electronics Wondom ICP3 - Connecting ICP3 to APM2;JAB3; Programming Port Connection

Connect ICP3

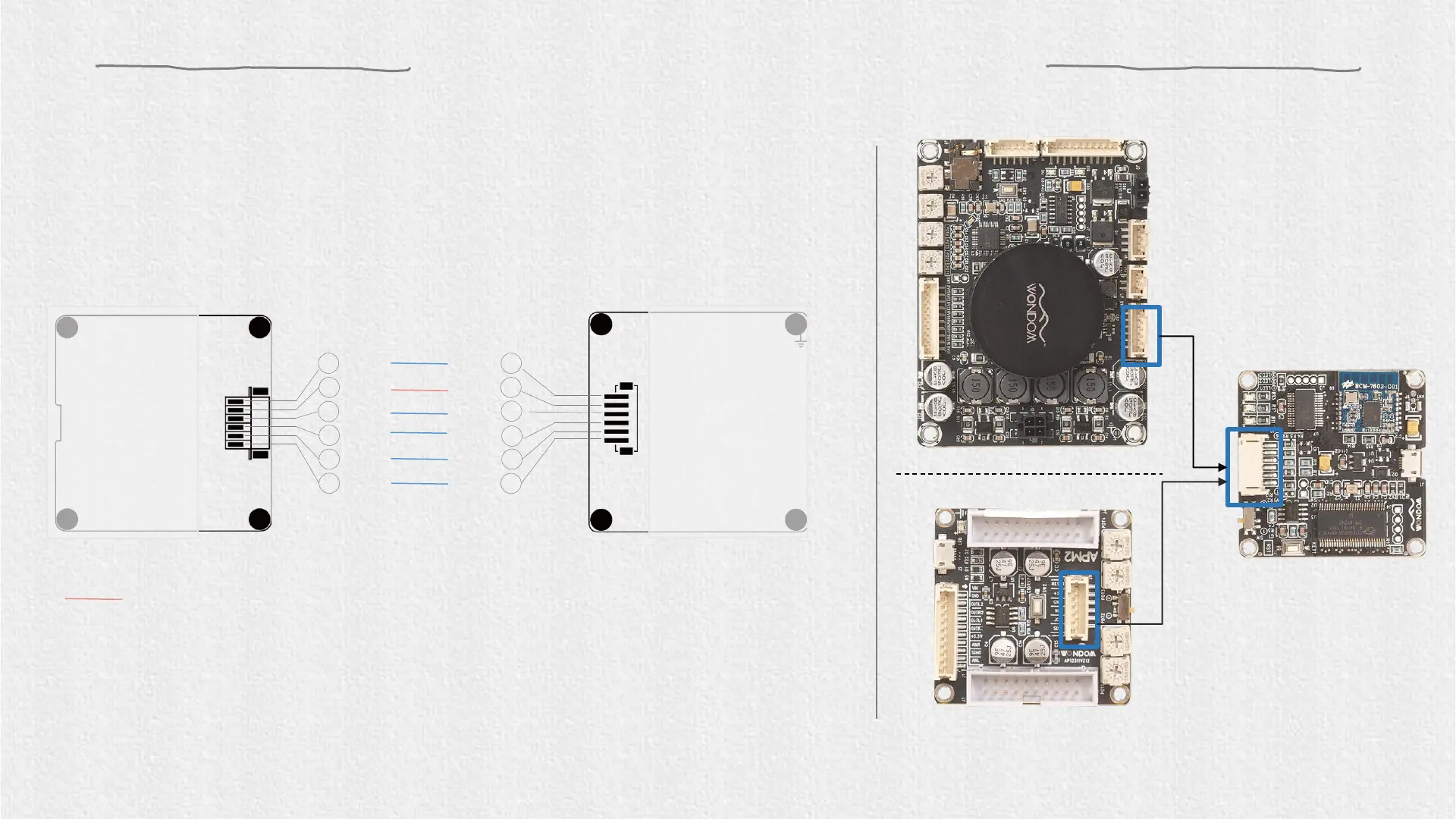

1. Connect ICP3 to the APM2/JAB3 through the programming port with
a 6-pin cable.
1
RST
2
VIN
3
GND
4
WP
5
SCL
6
SDA
Programming
Port of DSP/JAB3
RST
1
2
+5V
3
GND
4
5
6
WP
SCL
SDA
Pin to Pin
Note:
When ICP3 is connected to APM2/JAB3 pin to pin, it will
be powered by APM2/JAB3 directly. No extra power
supply is needed.
