CM2020 Ampliﬁer - Installaon Manual

4. Decide where to route the cables between the

exterior antenna and the ampliﬁer and

between the ampliﬁer and interior antennas.

5. Install the antennas as described in their

respecve Installaon Manuals.

6. Route the cables to the ampliﬁer locaon.

7. Install the ampliﬁer as described in this man-

ual.

8. Power on the ampliﬁer and perform the con-

ﬁguraon and tesng as described in this

manual.

3.2 - Exterior Antenna

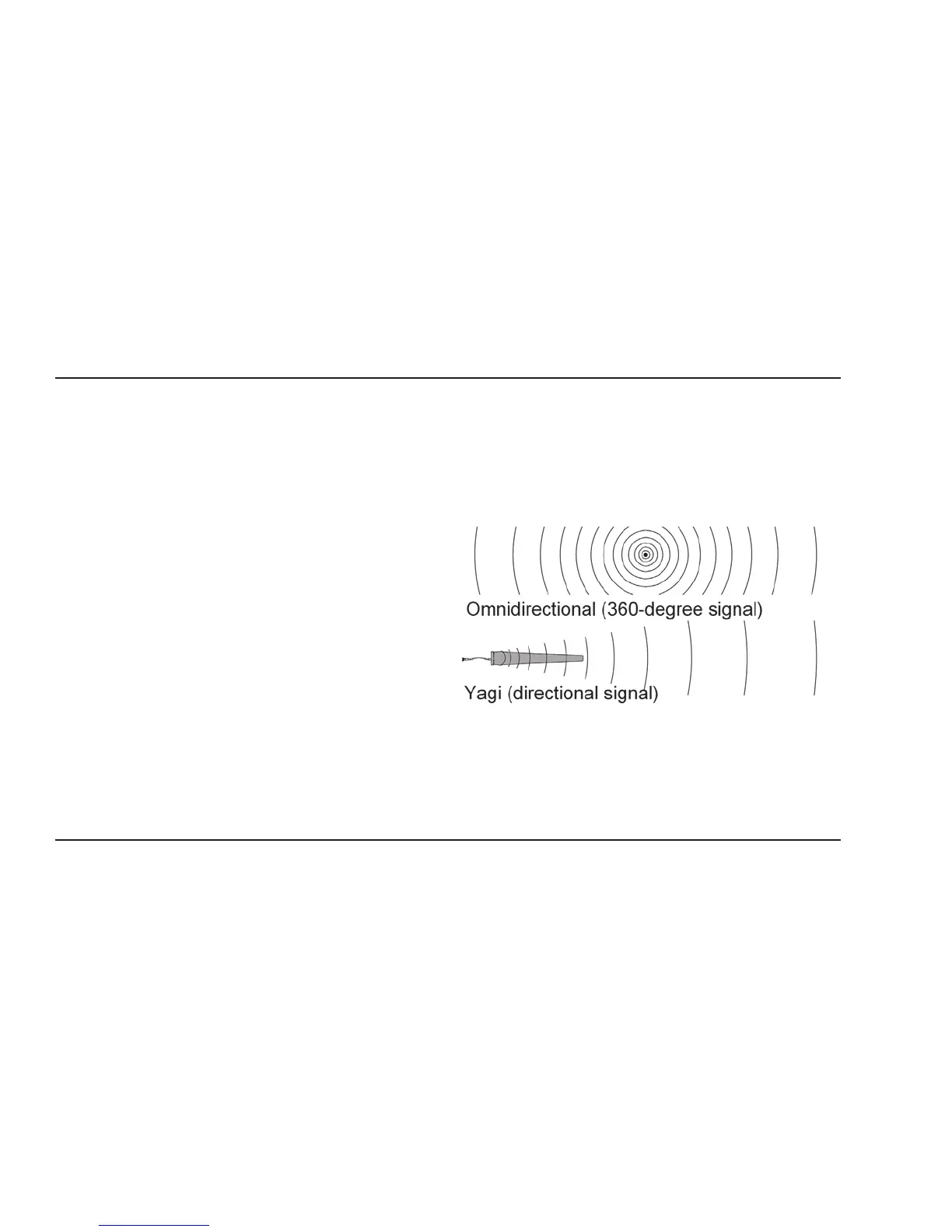

You may use either an omnidireconal antenna

such as the CM100-L (ﬂat area with no obstruc-

ons) or a direconal Yagi antenna such as the

CM230W (to point directly at the tower). The

omnidireconal antenna receives and transmits

signals over a horizontal 360-degree circle while

the Yagi antenna receives and transmits signals

over a focused area and must be aimed directly

(line of sight) toward the cellular tower that pro-

vides the best signal to the building.

The exterior antenna and mast (if any) must be

mounted in a locaon that meets all of the follow-

ing criteria:

• Best signal strength.
