CHAPTER 3: Planning
Copyright 2011 Cellphone-Mate, Inc. All rights reserved.
9
• Not collocated with other antennas or used in
conjuncon with other antennas.
• Away from all power lines.
• 6’ from lightning rod antennas.
• 24” from all persons.
These distances are general guidelines only; refer
to the applicable building and electrical codes in
your area to determine local requirements.
3.3 - Interior Antennas
You may use any combinaon of omnidireconal
(dome) and/or direconal (flat panel) interior
antennas needed to obtain opmal signal
strength throughout the building or installaon
area.Dome antennas such as the CM222W, CM223,
and CM224 provide 360-degree hemispherical
coverage suitable for mostly square areas while
flat panel antennas such as the CM248W provide
a focused zone of coverage suitable for long narrow

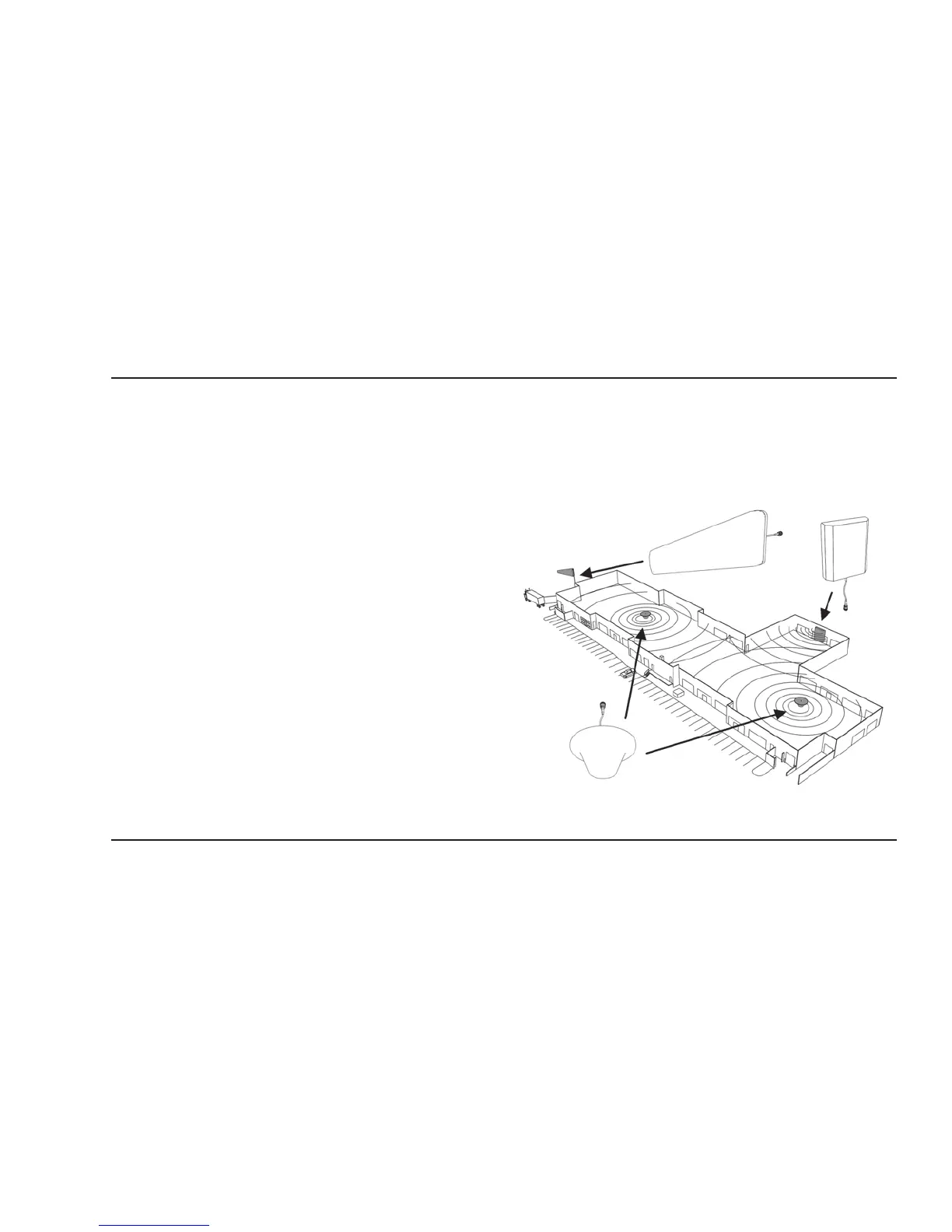

areas. The following example uses two dome
antennas and one panel antenna to provide full
coverage (exterior Yagi antenna also shown):
