Installing Your Hardware
Step 3: Attach the N-Female connection from the interior antenna to the cable leading
to the connector labeled INSIDE, on your booster.
Step 4: Tighten xing nut to secure antenna (do not over-tighten).
• Storage and transportation: Store and place in non-extreme room-temperature
and dry environment
• Attention: This antenna should not be used near open re or ame
The SC-222W multi-band plastic antenna is an omni-directional interior antenna
that gathers signals from all sides. Range of antenna is dependent on three factors:
1) physical obstructions, 2) power generated by booster and 3) reception from
outside signal received and distributed by outside antenna.
Besides the antenna itself, parts include mounting
equipment for either a at horizontal surface or a
wall. It should be mounted in an upright position
for best results. You can also install your interior
antenna above the ceiling panel provided your
ceiling isn’t made of a material that could obstruct
signals from the booster.

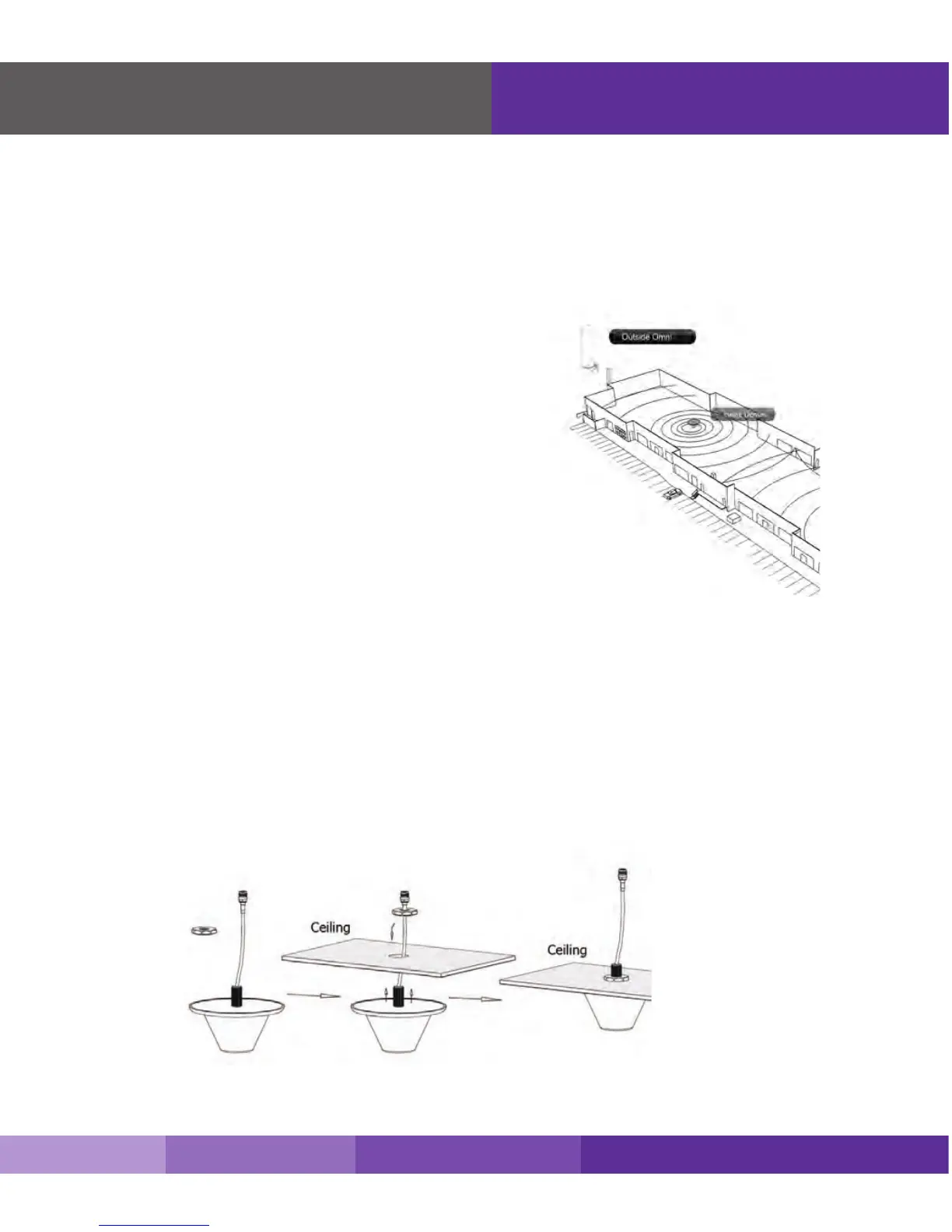

Step 1: Drill a 35mm diameter hole in the ceiling. The ceiling
thickness should be 20mm, maximum.
Step 2: Unscrew xing nut from antenna. Place antenna cable
through hole. Screw the xing nut back onto antenna
and cable on crawl space side of ceiling and fasten.
