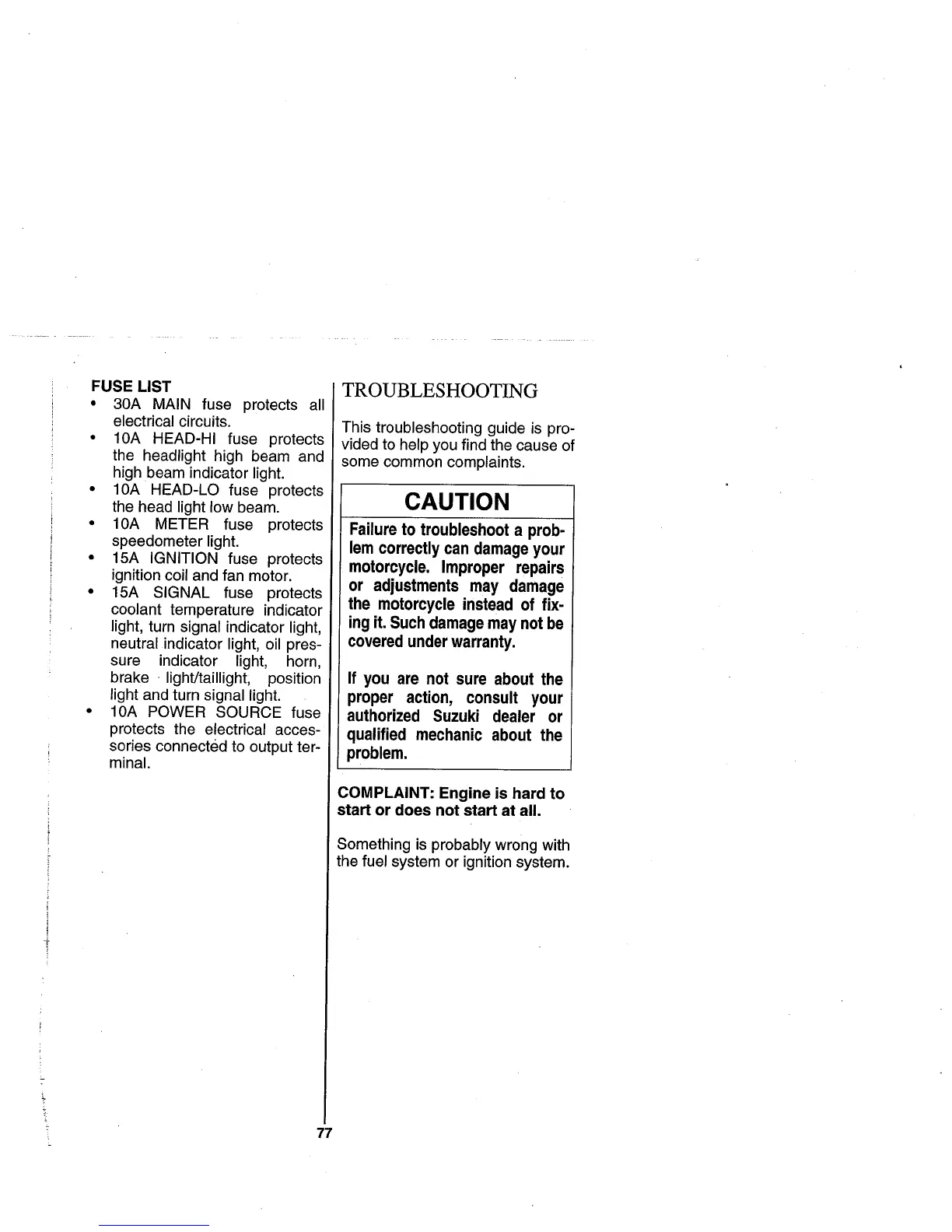

FUSE LIST
. 30A MAIN fuse protects all
electrical circuits.
. 10A HEAD-HI fuse protects
the headlight high beam and
high beam indicator light.
. 10A HEAD-LO fuse protects
the head light low beam.
. 10A METER fuse protects
speedometer light.
. 15A IGNITION fuse protects
ignition coil and fan motor.
. 15A SIGNAL fuse protects
coolant temperature indicator
light, turn signal indicator light,
neutral
indicator light, oil pres-
sure indicator light, horn,
brake. lighVtaillight, position
light and turn signal
light.
. 10A POWER SOURCE fuse
protects the electrical acces-
sories connectéd to output ter-
minaL.
TROUBLESHOOTING
This troubleshooting guide is pro-
vided to help you find the cause of
some common complaints.
CAUTION
Failure to troubleshoot a prob-
lem correctly can damage your
motorcycle. Improper repairs
or adjustments may damage
the motorcycle instead of fix-
ing it. Such damage may not be
covered under warranty.
If you are not sure about the
proper action, consult your
authorized Suzuki dealer or
qualified mechanic about the
problem.
COMPLAINT: Engine is hard to
start or does not start at all.
Something is probably wrong with
the fuel system or ignition system.
77
