Suzuki AY50 - CDI;Ignition Coil; Regulator;Rectifier

11-16 AY50K1 K2/WRK1 K2 (’01 ’02-MODEL)

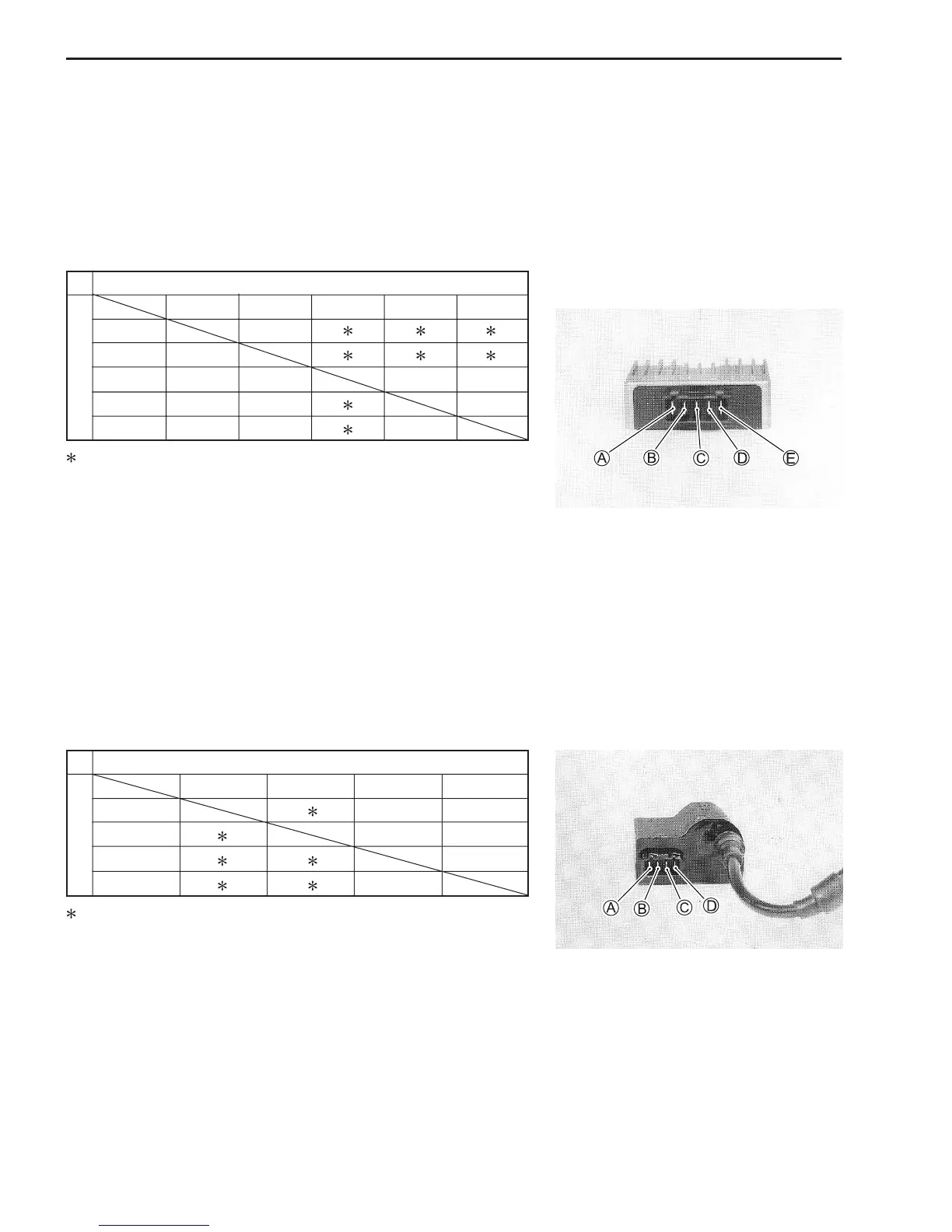

REGULATOR/RECTIFIER
Measure the voltage between the terminals using the multi circuit
tester, as indicated in the table below. If the voltage is not within
the specified value, replace the regulator/rectifier with a new one.
# 09900-25008: Multi circuit tester set
% Tester knob indication: Diode test (
&&
&&
&)
Unit: V
+ Tester probe
ABCDE
A 0
B 0
C 1.0 – 1.2 1.0 – 1.2 0.9 – 1.1 0.5 – 0.7
D 1.2 – 1.4 1.2 – 1.4
1.0 – 1.2
E 0.5 – 0.7 0.5 – 0.7
0.4 – 0.6
More than 1.4 V (tester’s battery voltage)
NOTE:
If the tester reads under 1.4 V, disconnect the tester probes from
the wire leads, and then replace the multi circuit tester’s battery.
- Tester probe
CDI/IGNITION COIL
Measure the voltage between the terminals using the multi circut
tester, as indicated in the table below. If the voltage is not within
the specified value, replace the CDI/ignition coil with a new one.
# 09900-25008: Multi circuit tester set
% Tester knob indication: Diode test (
&&
&&
&)
Unit: V
+ Tester probe
ABCD
A
1.2 – 1.4 1.2 – 1.4
B
0.8 – 1.0 0.8 – 1.0
C
0.03 – 0.3
D
0.03 – 0.3
More than 1.4 V (tester’s battery voltage)
NOTE:
If the tester reads under 1.4 V, disconnect the tester probes from
the wire leads, and then replace the multi circuit tester’s battery.
- Tester probe
