Suzuki DF9.9A - Wiring Diagrams; Recoil Starter Model Wiring Diagram

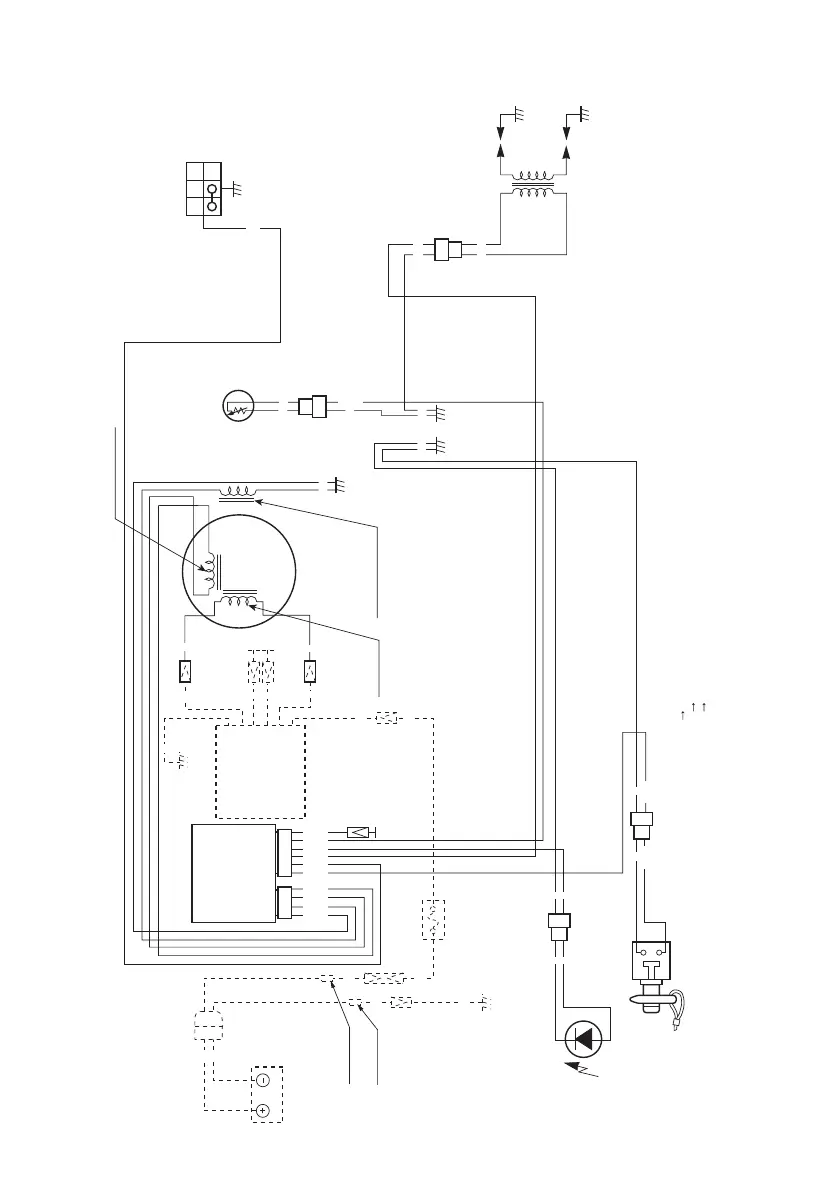

WIRING DIAGRAM
DF8A/DF9.9A (RECOIL STARTER MODEL)
Y
HI
LO
CDI UNIT
B
P
B
Bl/R
B
Bl/R
B
P
B
OO
B
Y Y
Y
R R
B
B
B
MAGNETO
CYLINDER TEMP SENSOR
Bl
IGNITION COIL
SPARK PLUG
BATTERY
Y-TUBE
PLUG
R-TUBE
FUSE 20A
B
W
W
WW
W
B
OIL PRESSURE SWITCH
B
R/B
G
B/R
Bl/R
Bl
O
P
Lg/W
Y/B
B
Lg/W
B
B
B
WIRE COLOR B.......... Black Bl......... Blue G.......... Green O.......... Orange
P........... Pink R.......... Red W......... White Y........... Yellow
B/R....... Black/Red BI/R...... Blue/Red R/B....... Red/Black Y/B....... Yellow/Black Lg/W.... Light green/White
EMERGENCY STOP & ENGINE STOP SWITCH Emergency stop switch: Lock plate IN RUN Lock plate OUT STOP Engine stop switch: Button pushed STOP
CAUTION LAMP
(OIL PRESSURE)
CONDENSER CHARGE COIL
BATTERY CHARGE COIL
B
PULSER COIL
RECTIFIER & REGULATOR
