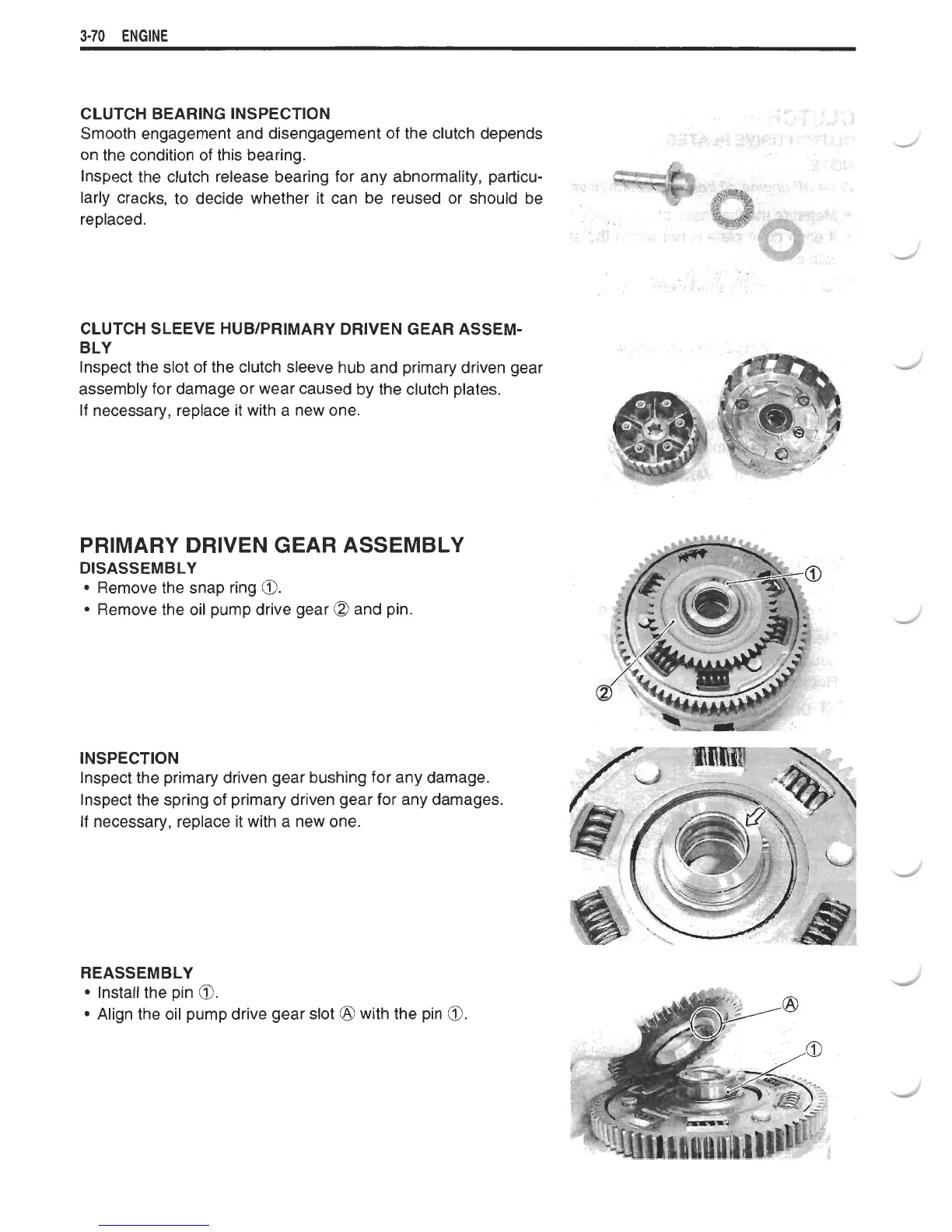

3-70
ENGINE
CLUTCH BEARING INSPECTION
Smooth engagement and disengagement of the clutch depends
on the condition of this bearing.
lnspect the clutch release bearing for any abnormality, particu-
larly cracks, to decide whether it can be reused or should be
replaced.
CLUTCH SLEEVE HUBIPRIMARY DRIVEN GEAR ASSEM-
BLY
lnspect the slot of the clutch sleeve hub and primary driven gear
assembly for damage or wear caused by the clutch plates.
If necessary, replace it with a new one.
PRIMARY DRIVEN GEAR ASSEMBLY
DISASSEMBLY
Remove the snap ring
@.
Remove the oil pump drive gear
@
and pin.
INSPECTION
lnspect the primary driven gear bushing for any damage.
lnspect the spring of primary driven gear for any damages.
If necessary, replace it with a new one.
REASSEMBLY
Install the pin
0.
Align the oil pump drive gear slot
@
with the pin
0.
