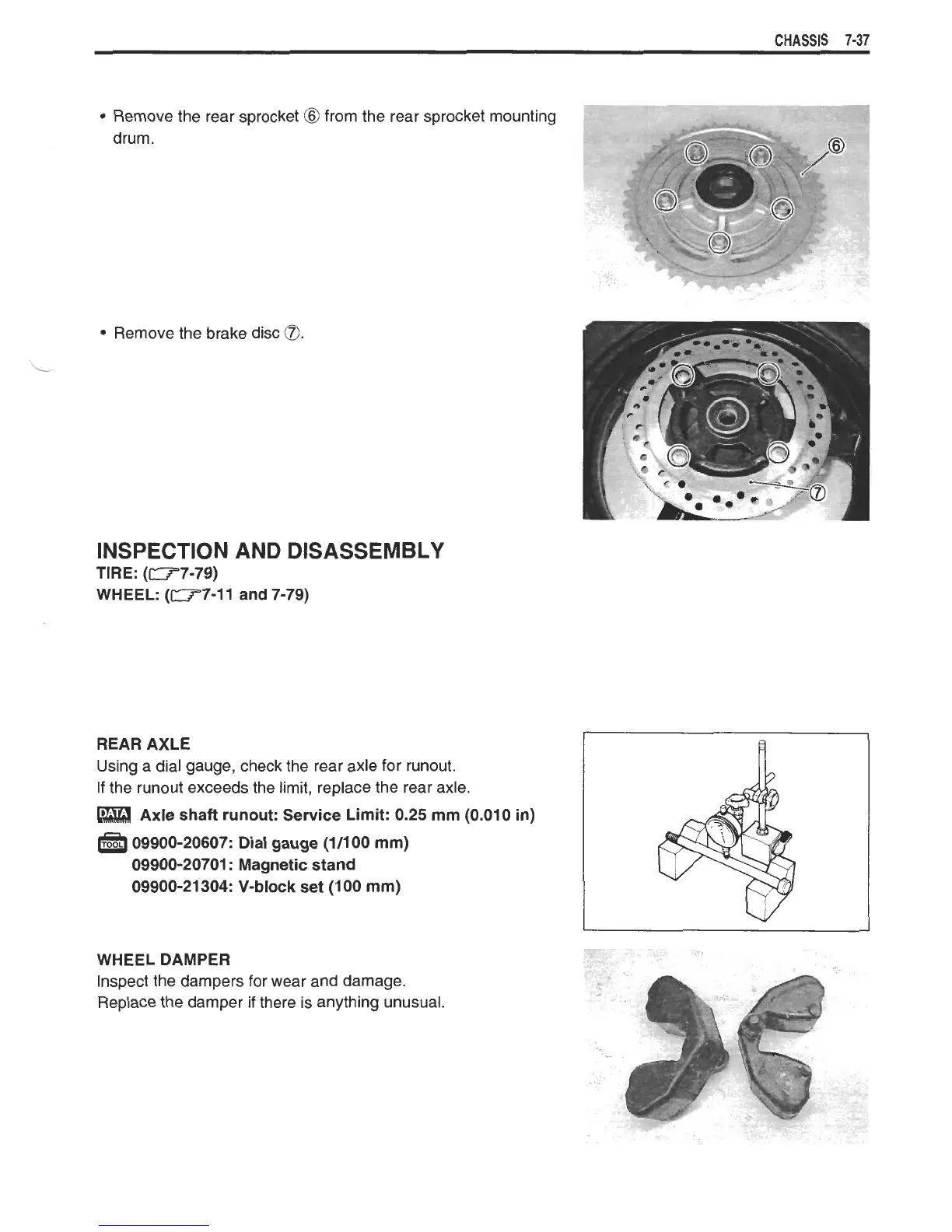

CHASSIS
7-37
Remove the rear sprocket
@
from the rear sprocket mounting
drum.
Remove the brake disc
a.
-
INSPECTION AND DISASSEMBLY
TIRE: (-7-79)
WHEEL: (-7-1 1 and 7-79)
REAR AXLE
Using a dial gauge, check the rear axle for runout.
If the runout exceeds the limit, replace the rear axle.
Axle shaft runout: Service Limit: 0.25 mm (0.010 in)
a
09900-20607: Dial gauge (111 00 mm)
09900-20701
:
Magnetic stand
09900-21 304: V-block set (1 00 mm)
WHEEL DAMPER
Inspect the dampers for wear and damage.
Replace the damper
if
there is anything unusual.
