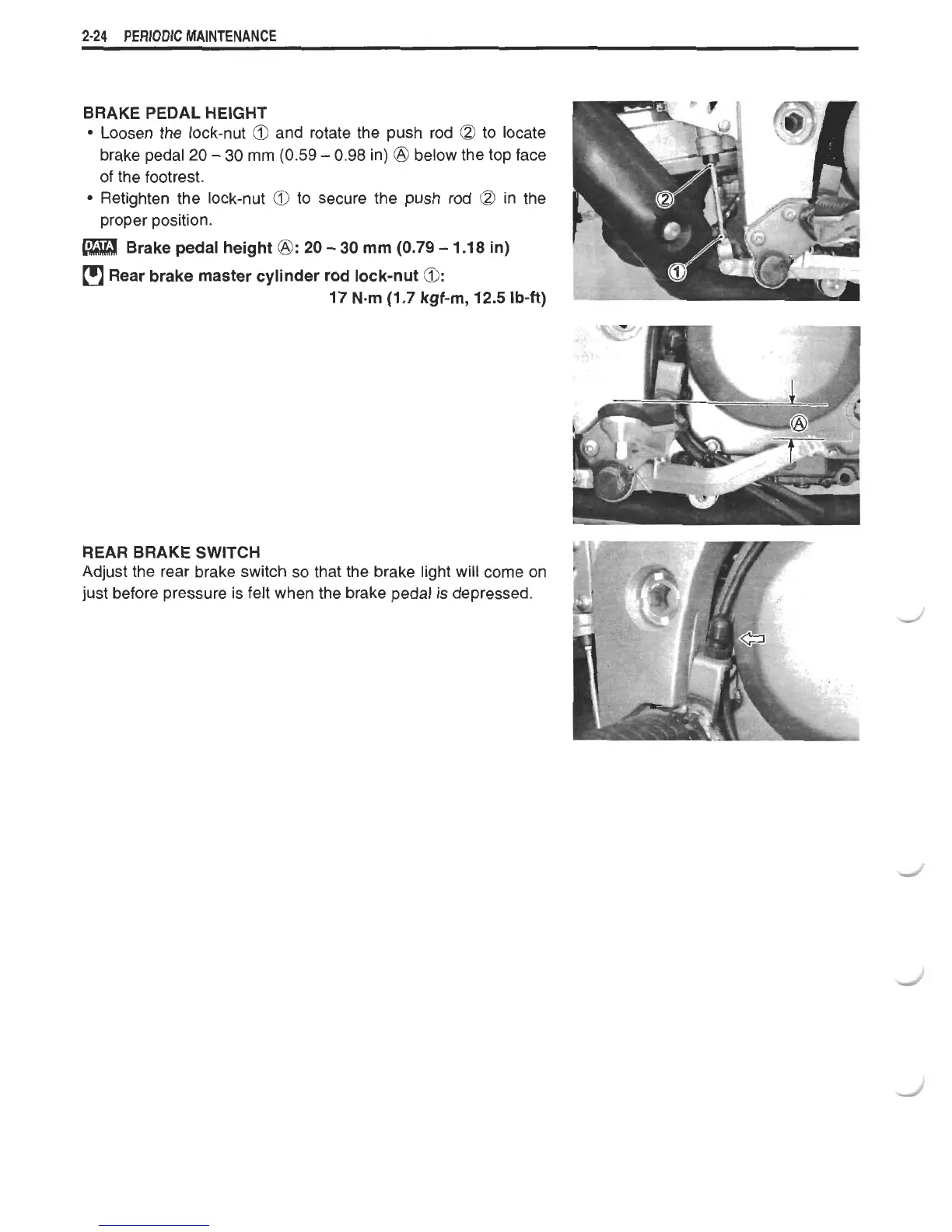

2-24 PERIODIC MAINTENANCE
BRAKE PEDAL HEIGHT
Loosen the lock-nut @ and rotate the push rod a to locate
brake pedal 20
- 30 mm (0.59 - 0.98 in) @ below the top face
of the footrest.
Retighten the lock-nut
@ to secure the push rod a in the
proper position.
Brake pedal height @: 20 - 30 mm (0.79 - 1 .I8 in)
Rear brake master cylinder rod lock-nut 0:
17 N-rn (1.7 kgf-m, 12.5 Ib-ft)
REAR BRAKE SWITCH
Adjust the rear brake switch so that the brake light will come on
just before pressure is felt when the brake pedal is depressed.
