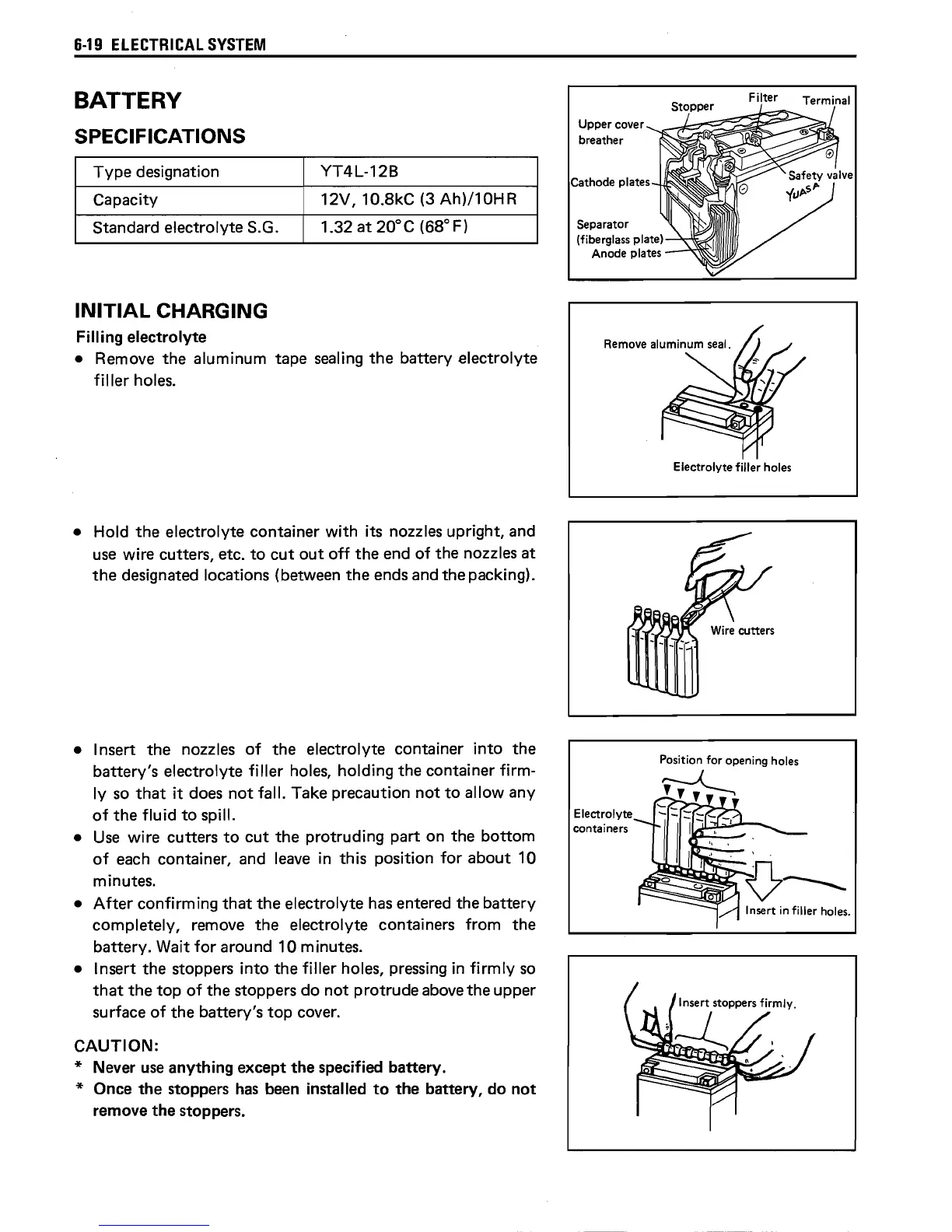

6-19
ELECTRICAL
SYSTEM
BATTERY
SPECIFICATIONS
Type
designation
Capacity
Standard electrolyte S.G.
INITIAL CHARGING
Filling electrolyte
YT4L-12B
12V, 10.8kC
(3
Ah)/10HR
1.32
at
20
0
C (68
0
F)
• Remove
the
aluminum tape sealing
the
battery electrolyte
filler holes.
• Hold
the
electrolyte container with its nozzles upright, and
use wire cutters, etc.
to
cut
out
off
the
end
of
the
nozzles
at
the
designated locations (between
the
ends and
the
packing).
• I nsert
the
nozzles
of
the
electrolyte container into
the
battery's
electrolyte filler holes, holding
the
container firm-
ly so
that
it does
not
fall. Take precaution
not
to
allow any
of
the
fluid
to
spill.
• Use wire cutters
to
cut
the
protruding
part
on
the
bottom
of
each container, and leave
in
this position for
about
10
minutes.
•
After
confirming
that
the
electrolyte has entered
the
battery
completely, remove
the
electrolyte containers from
the
battery.
Wait for around
10
minutes.
• Insert
the
stoppers into
the
filler holes, pressing
in
firmly so
that
the
top
of
the
stoppers do
not
protrude
above
the
upper
surface
of
the
battery's
top
cover.
CAUTION:
* Never use anything
except
the
specified battery.
* Once
the
stoppers has been installed
to
the
battery, do
not
remove
the
stoppers.
Upper cover
breather
Cathode plates
Separator
(fiberglass plate)
Anode plates
Electrolyte
containers
Electrolyte filler holes
Insert
in
filler holes.
To Next Page
