10-25
EMERGENCY SERVICE
69TB-01E
69T100070

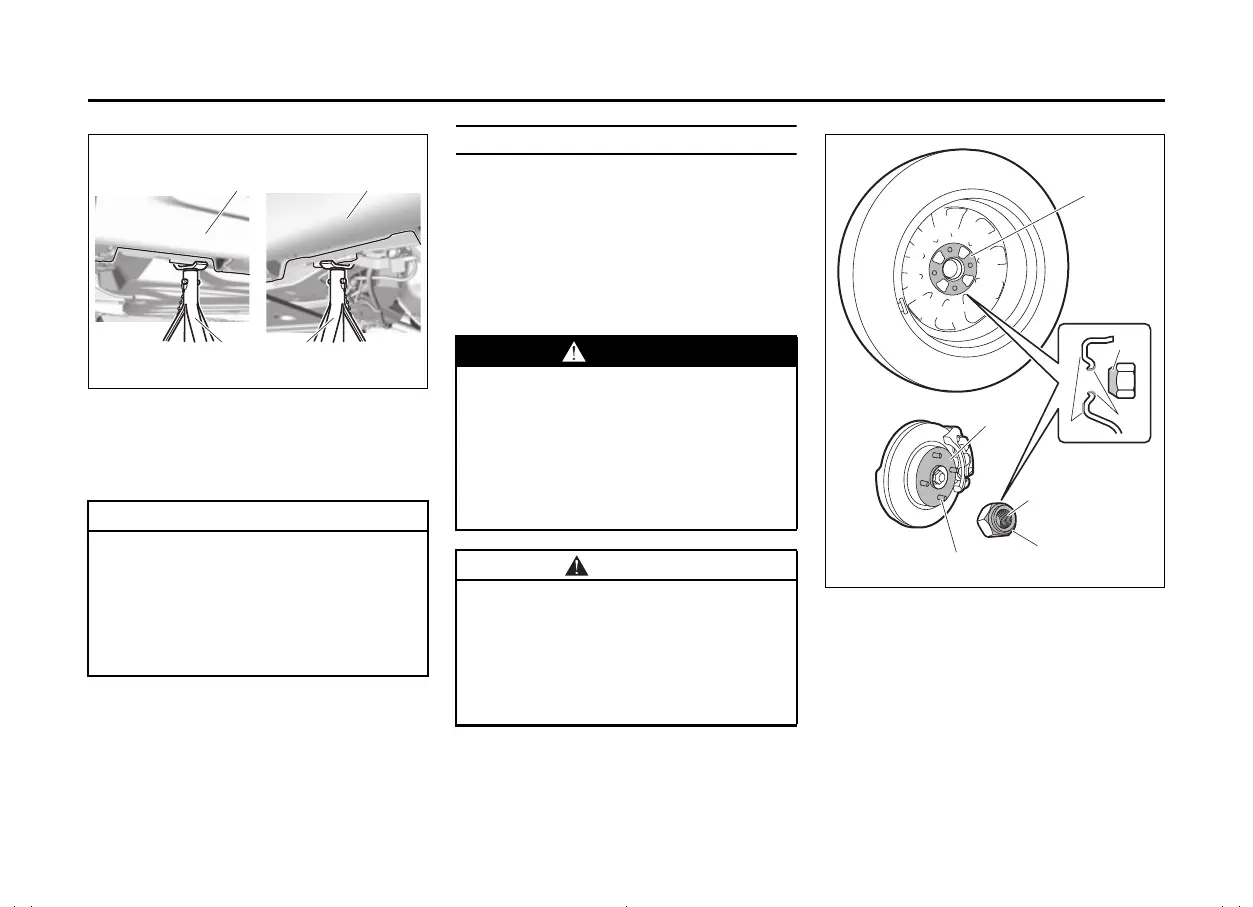

(a) Specified position of jack stand for the
front side
(b) Specified position of jack stand for the
rear side
NOTE:
For more details, contact an authorized
SUZUKI dealer or a qualified workshop.
Changing wheels
To change a wheel, use the following pro-
cedure:
1) Prepare the jack (if equipped), tools
and spare tyre (if equipped).
2) Loosen, but do not remove the wheel
nuts.
3) Jack up the vehicle (follow the jacking
instructions in this section).
4) Remove the wheel nuts and wheel.
84S08170
5) Clean any mud or dirt off from the sur-
face of the wheel (1), hub (2), thread
part (3), surface of the wheel nuts (4)
and surface of the wheel holes (5) with
a clean cloth.
Clean the hub carefully; it may be hot
from driving.
NOTICE
If you use the jack stand (2) in the
condition that it touches the side
skirt (6), the side skirt may be broken
or damaged.
When using the jack stand, make
sure that it does not touch the side
skirt.
(6)
(2)
(6)
(2)
(a) (b)
WARNING
• Shift into “P” (Park) for a CVT, or into
“R” (Reverse) for a manual transmis-
sion vehicle when you jack up the
vehicle.
• Never jack up the vehicle with the
transmission in “N” (Neutral). Oth-
erwise, unstable jack may cause an
accident.
CAUTION
Immediately after the vehicle has been
driven, the wheels, the wheel nuts and
the area around the brakes might be
extremely hot. Touching these areas
may cause burn injury. Do not touch
these areas, immediately after the
vehicle has been driven.
(4)
(5)
(2)
(4)
(1)
(3)
(3)
(1)
