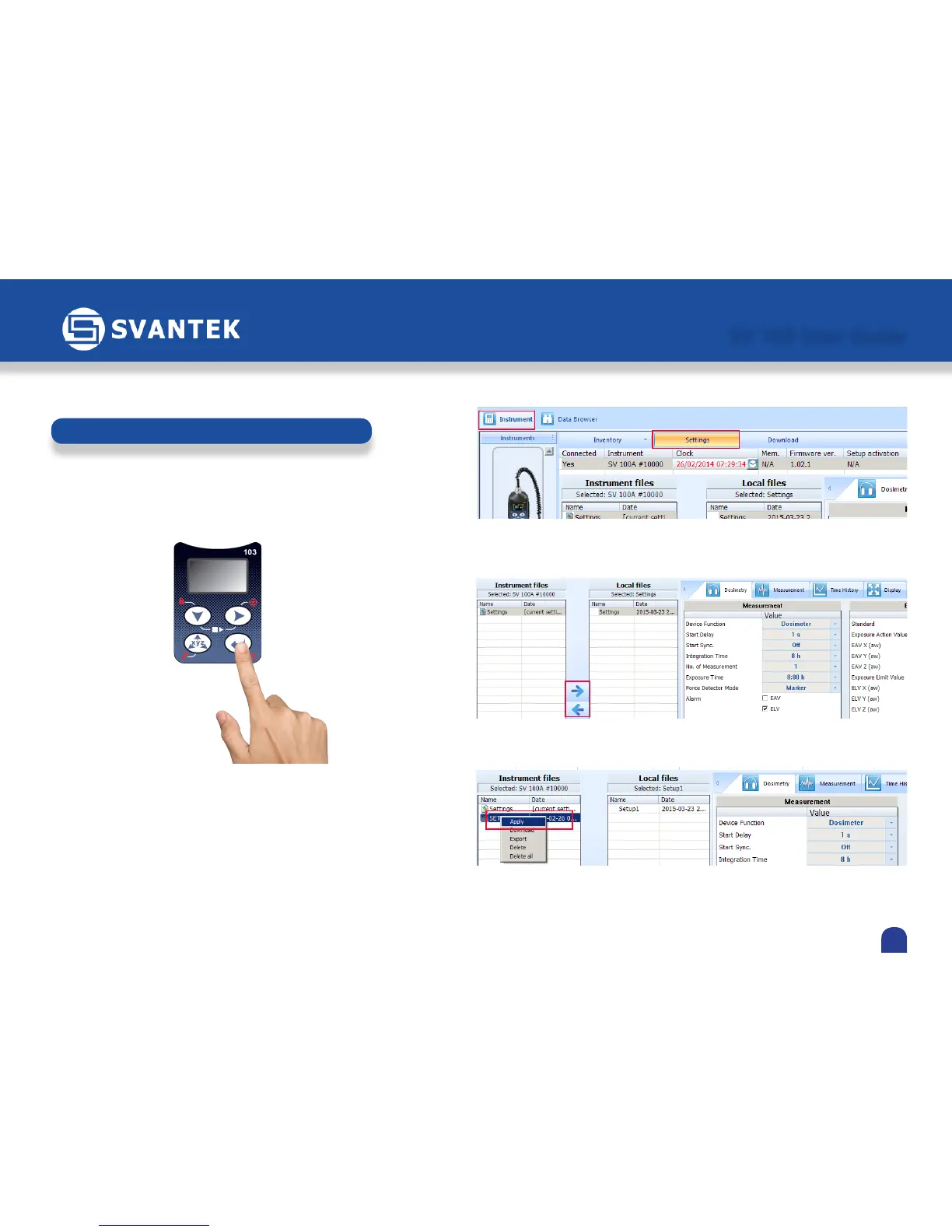

Configuration with Supervisor software
1) To switch the power on hold the <ENTER> button for a couple
of seconds.
Configuration set-up
5) Download current Settings from Instrument files to Local Files using right
arrow and edit SV103 settings using panels on the right hand side
8) Disconnect the USB cable. Instrument is ready to measure.
SV 103 User Guide
4
2) Connect the USB cable to PC. Make sure the Supervisor
software and USB drivers are previously installed on the PC.
6) Save settings file under new name
7) Upload the file to the Instrument Files using left arrow and select Apply
3) Open the Supervisor software and go to the Instrument tab.
4) Select Settings
To Next Page
