ENG
3
HT-210
Operation Manual
• Built-in player for audio les from
external storage devices
• Wireless signal transmission via
Bluetooth
• Optical and coaxial inputs
• Remote control
• Wall mountable satellites
• Wooden (MDF) subwoofer and
satellites cabinets
HTSS design
Subwoofer control panels
a VFD display
b IR: IR receiver
c SD/MMC CARD: slot for SD/MMC cards*
containing МР3 audio files
d USB: slot for a USB flash device* containing
МР3 audio files
e /СН-: previous track (pressed short
in the Player mode);
previous station*
* (pressed short in the Tuner
mode)
f /AUTO: play/pause (pressed short in the
Player mode);
start/stop auto scan (pressed short in the Tuner
mode);
g / СН+: next track (pressed short in the Player
mode);
next station
** (pressed short in the Tuner mode)
h INPUT/VOLUME -/+: turn on (turn knob to the
right / left) and volume control;
turn off (long press);
input switching, OPT / COX / DVD / AUX / PC / FM /
MP3 / Bluetooth (short press)
i OPTICAL INPUT: connector for optical input
a b c d e
VOLUME
INPUT
CH-
IR
SD/MMC
CARD
USB
CH+AUTO
MHz
FM AUTO SLEEP
kHz
f g h

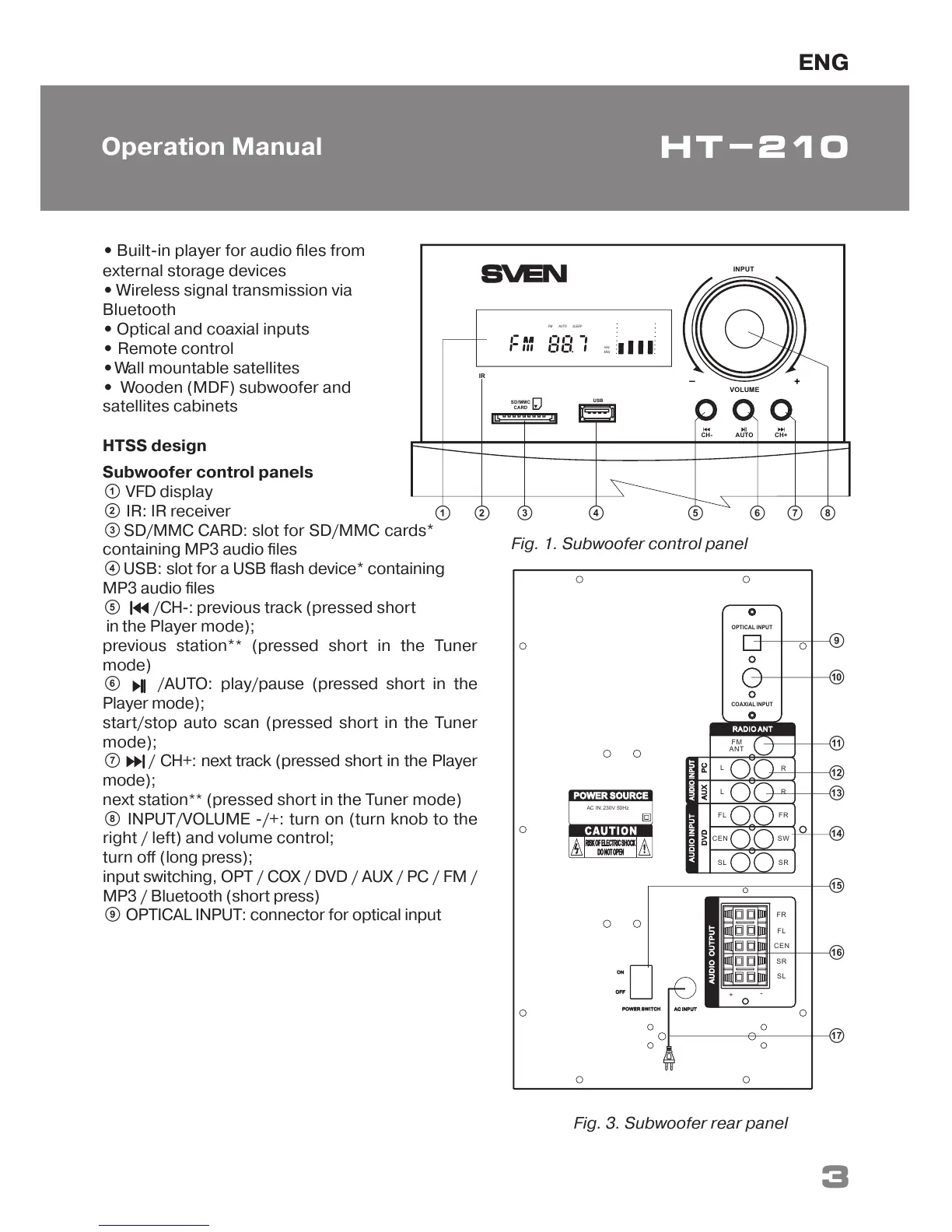

Fig. 1. Subwoofer control panel
Fig. 3. Subwoofer rear panel
OPTICAL INPUT
COAXIAL INPUT
L
L
FL
CEN
SL
R
R
SW
FR
SR
FR
FL
CEN
SR
SL
+
-
RADIO A NT
PC
AU X
DV
D
AU
DIO
INP
U
T
A
UDIO IN
P
U
T
AUDI
O
OU T
P
UT
AC I NP UT
PO WE R SWITC H
ON
OF F
RA DIO A NT
FM
ANT
AC IN: 230V 50Hz
i
j
k
l
m
n
p
q
o
