swaploader SL-160 - EHV Installation (Option)

Section II: Installation
2.0.INS.SL-160
EHV INSTALLATION (OPTION)
6. Review all directions and diagrams provided before starting the Electric over Hydraulic Valve
Installation.

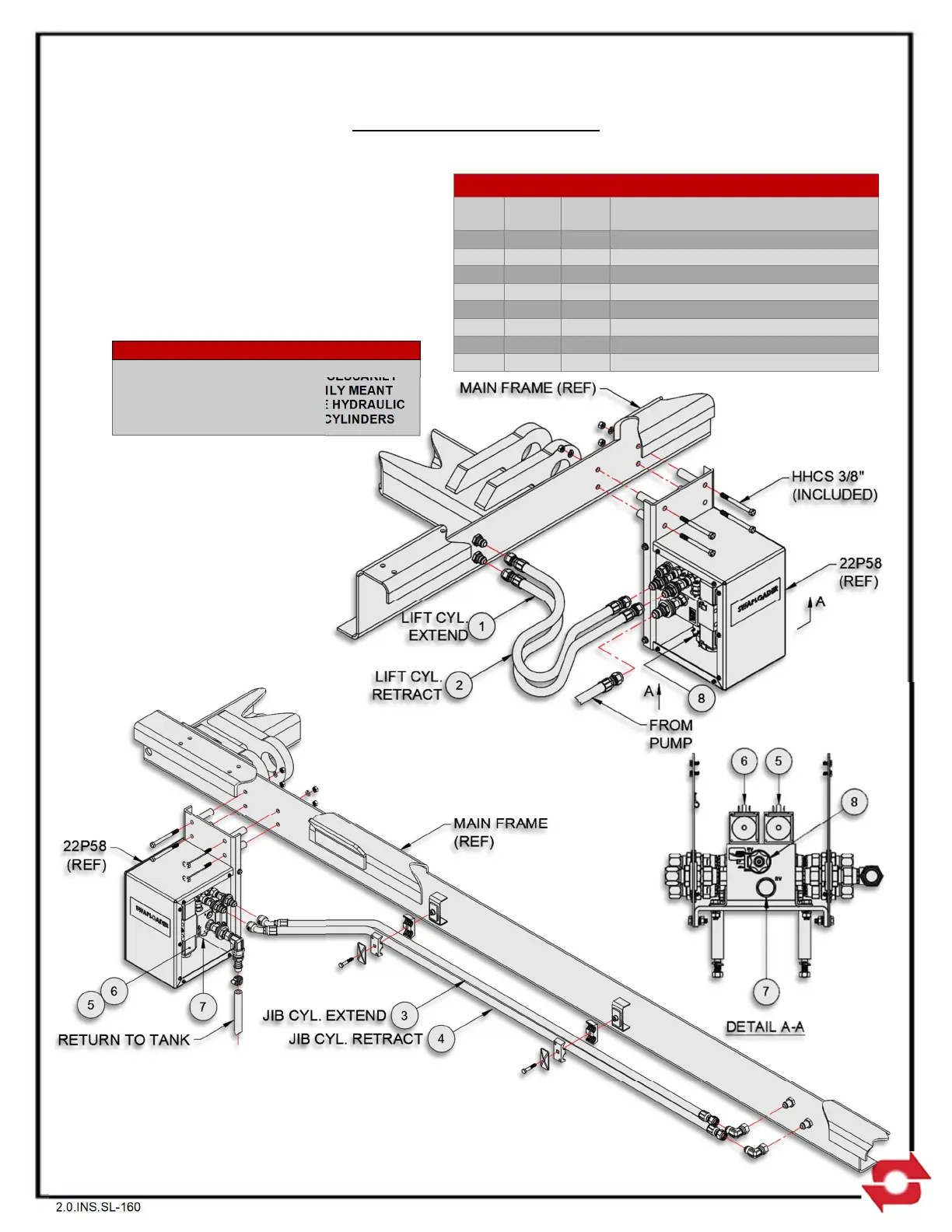

7. Mount the 22P58 EHV to the hoist’s
Main Frame and attach all hoses, hose
clamp assemblies and fittings as
shown on Pgs. 6-5 through 6-7 (also
see Illustrations).
Electric Over Hyd. Valve - SERVICE PARTS SL-160
ITEM
PART
#
QTY DESCRIPTION
1 12P53 1
Hose Assy 21 08-08FJ/08FJ90
2 12P59 1 Hose Assy 20 08-08FJ/08FJ45
3
13P
25
1
Hose Assy 58 08-08FJ/08FJ45
4
13P3
2
1
Hose Assy 60 08-08FJ/08FJ45
5
22P82
1
Solenoid Operated Valve, Coil
6
22P83
1
Solenoid Operated Valve, Spool
7
22P84
1
Relief Valve Cartridge (3250)
8
22P85
1
Dump Valve
NOTE:
THE FIGURES BELOW DO NOT NECESSARILY
DEPICT YOUR HOIST AND ARE ONLY MEANT
TO ILLUSTRATE ROUTING OF THE HYDRAULIC
LINES FROM THE VALVE TO THE CYLINDERS
2-72-7
