swaploader SL-160 - Parts Identification; Base Hoist Assembly Parts

Section V: Parts
5.0.PAR.SL-160
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400

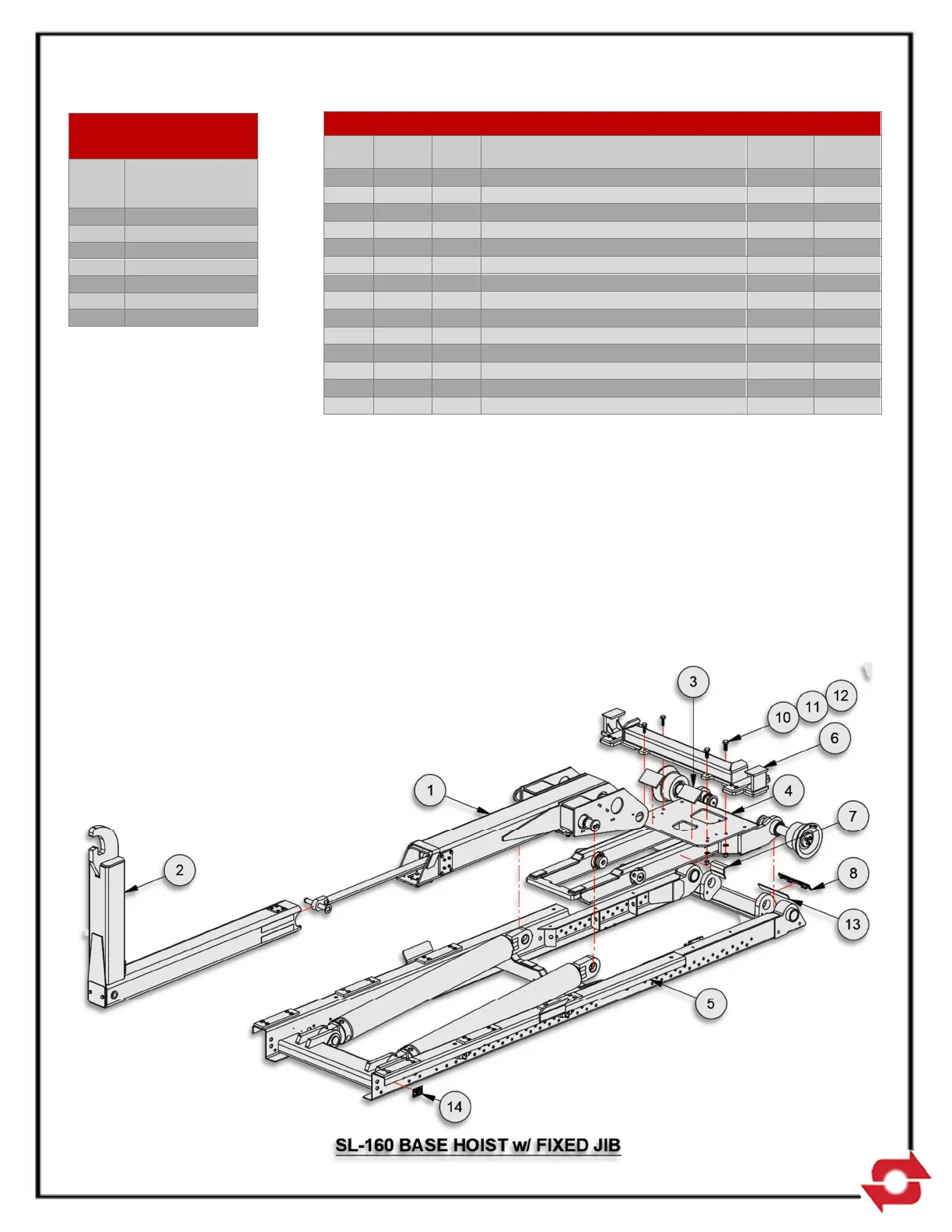

13H68 - BASE HOIST ASSEMBLY SL-160
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
13H05 1 Outer Tube Sub-Assembly 428.46 428.46
2
13H08 1 Fixed Jib Sub-Assembly 291.80 291.80
3
13H48
2
Tube Stop Sub-Wdmt, 50.5 Deg 3.02 6.04
4
13H65
1
Pivot Joint Sub-Assembly 397.11 397.11
5
13H67
1
Main Frame Sub-Assembly 948.23 948.23
6
13H74
1
Body Lock w/ Shelf Assembly 109.46 109.46
7 23H56 1 Lockout Valve Ramp 1.20 1.20
8
62H99
1
Logo Name Plate 0.29 0.29
9
90H89
1
Base Cylinder Circuit 21.44 21.44
10
00767
4
Washer, Lock - 5/8 Dia 0.01 0.04
11
00P24
4
Nut, Hex 5/8-11 UNC Gr8 0.09 0.36
12
00P91
4
HHCS 5/8 - 11 x 1-3/4 Gr8 0.31 1.24
13
90P90
1
Name Plate Insert 0.09 0.09
14
91P35
1
Serial Tag 0.02 0.02
5-1
