swaploader SL-160 - Optional Equipment; Adjustable Jib & Cylinder Options

VI: Options
6.0.OPT.SL-160

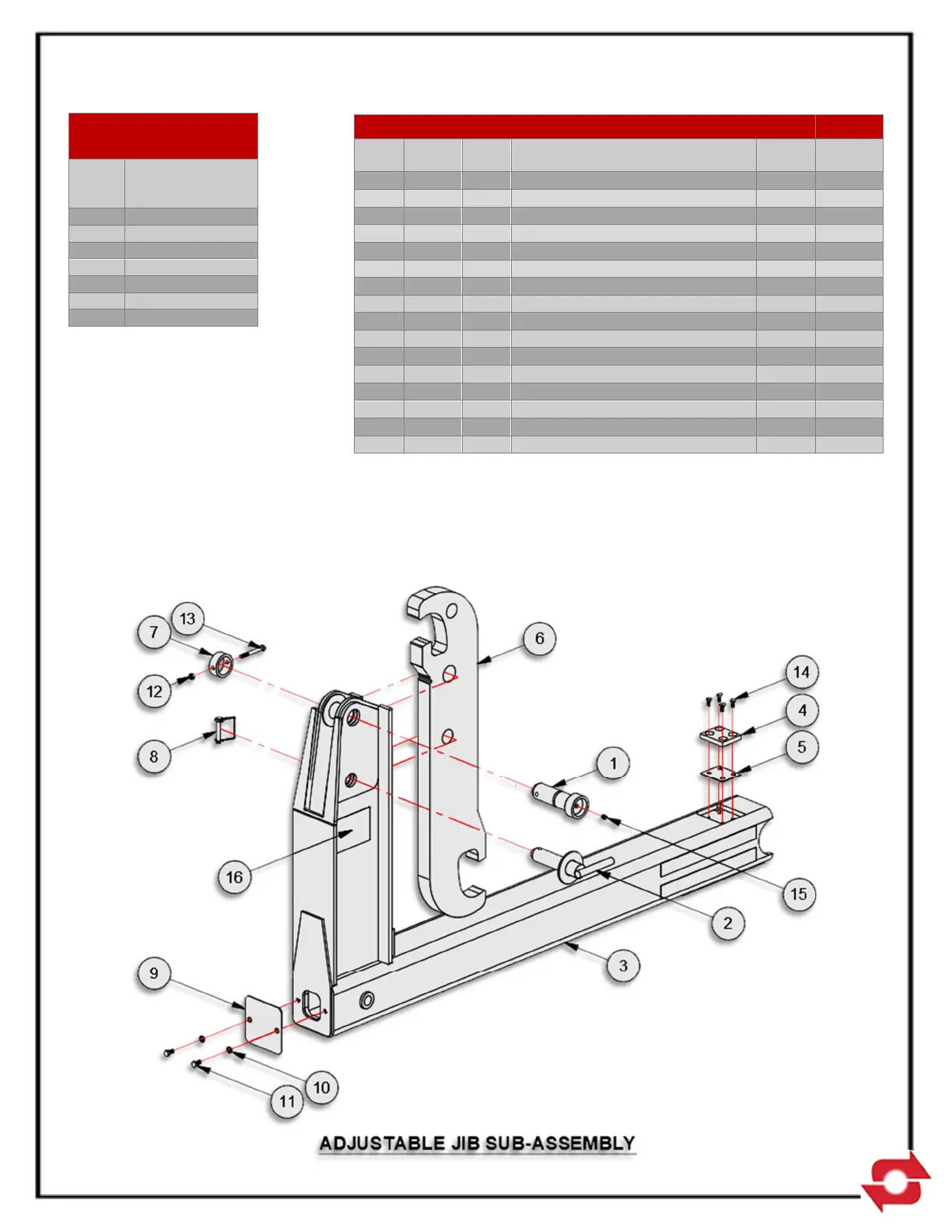

13H07 – ADJUSTABLE JIB SUB-ASSEMBLY SL-160
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
12H35
1
Pivot Pin
3.20
3.20
2 12H36 1
Lock Pin
3.00 3.00
3 13H18 1 Adj. Jib Wdmt 36"/54" 328.09 328.09
4
23H54
1
Wear Pad, 2-3/4x1/2x3-1/4
0.19
0.19
5
24H67
1
Shim, Jib 2-3/4 x 14GA x3-1/4
0.20
0.20
6
24H80
1
Hook, Adj Jib, 36/54
120.40
120.40
7
24H83
1
Tube 2-1/2OD x 1
0.30
0.30
8
53586
1
Safety Snap Pin, 3/8 Dia x 2-1/2 Lg
0.14
0.14
9
62H11
1
Cover, Jib 5-1/4x11GAx5-1/4
0.90
0.90
10
00755
2
Washer, Lock - 3/8 Dia
0.03
0.06
11
00P03
2
HHCS 3/8-16 UNC x 3/4
0.04
0.08
12
00P34
1
Nut, Lock 3/8-16
0.02
0.02
13
01P01
1
HHCS 3/8-16 UNC x 3-1/4
0.01
0.01
14 01P50 4
FHCS 5/16-18 UNC x 3/4
0.02 0.08
15 90P03 1 Zerk, Grease - 1/8 NPT 0.01 0.01
16
90P91
2
Decal, Adjustable Jib Operation
0.01
0.02
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
6-1
