swaploader SL-160 - Page 84

VI: Options
6.0.OPT.SL
-
160

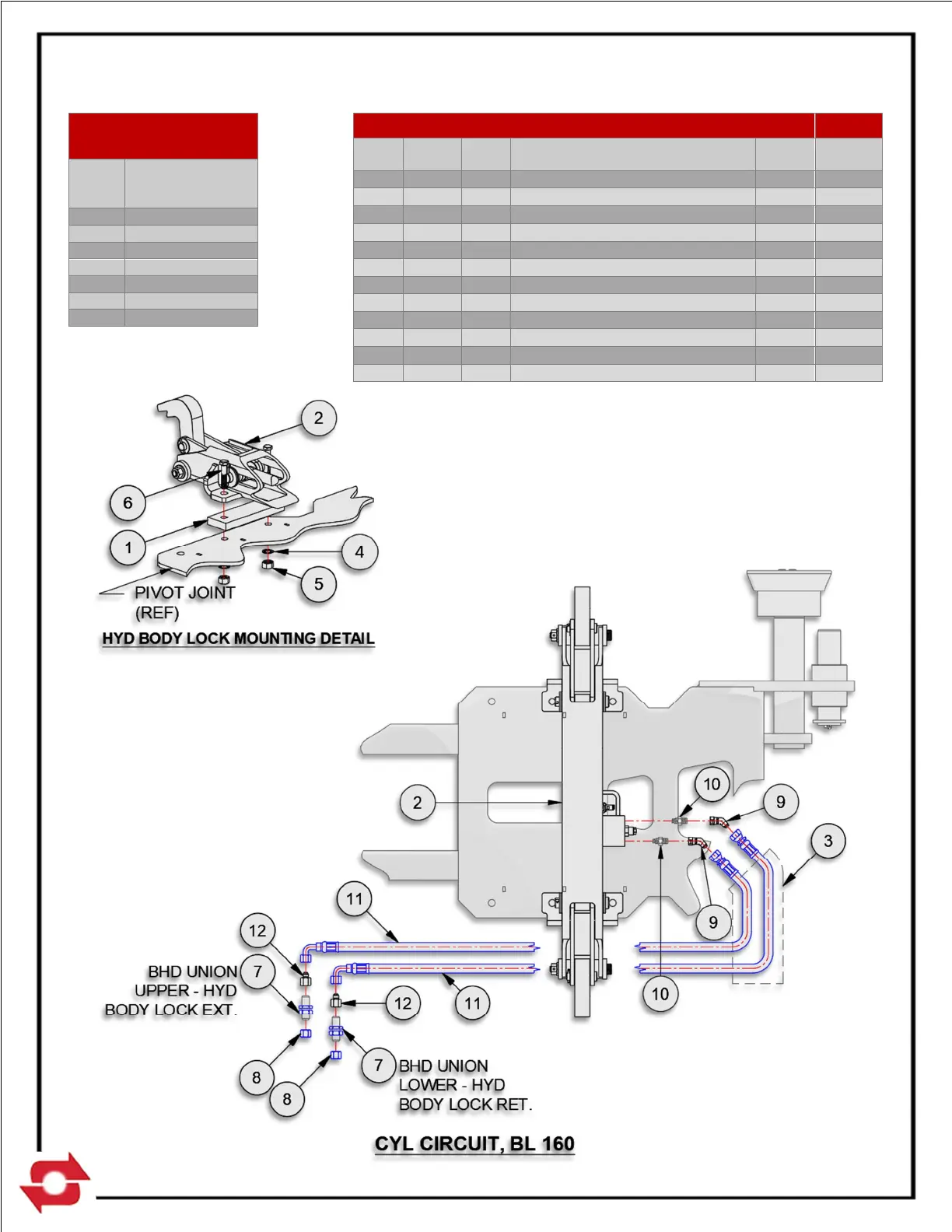

91H46– CYLINDER CIRCUIT, BL 160 SL-160
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
27H14
2
Body Lock Mount Shim
4.11
8.22
2
44H76
1
Body Lock Assy, Hyd 100
84.58
84.58
3
90H74
1
Nylon Hose Sleeve x 60”
0.25
0.25
4 00767 4 Washer, Lock - 5/8 Dia 0.04 0.16
5
00P24
4
Nut, Hex 5/8-11 UNC Gr8
0.09
0.3
6
6
01P40
4
HHCS 1/2-13 UNC x 2-1/2 Gr8
0.19
0.76
7
10P43
2
Adp Hyd 08MJ/08MJ BHD
0.30
0.60
8
13P14
2
Adp Hyd 08FJ Cap
0.03
0.06
9
13P50
2
Adp Hyd 06FJ/06MJ45
0.30
0.60
10
13P77
2
Adp Hyd 06MJ/06MP .062 Rstr.
0.30
0.60
11
13P84
2
Hose Assy 62 06-06FJ/06FJ90
3.36
6.72
12
13P87
2
Adp Hyd 08FJ/06MJ
0.30
0.60
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
6-2
