Section II: Installation
2.0.INS.SL
-
160

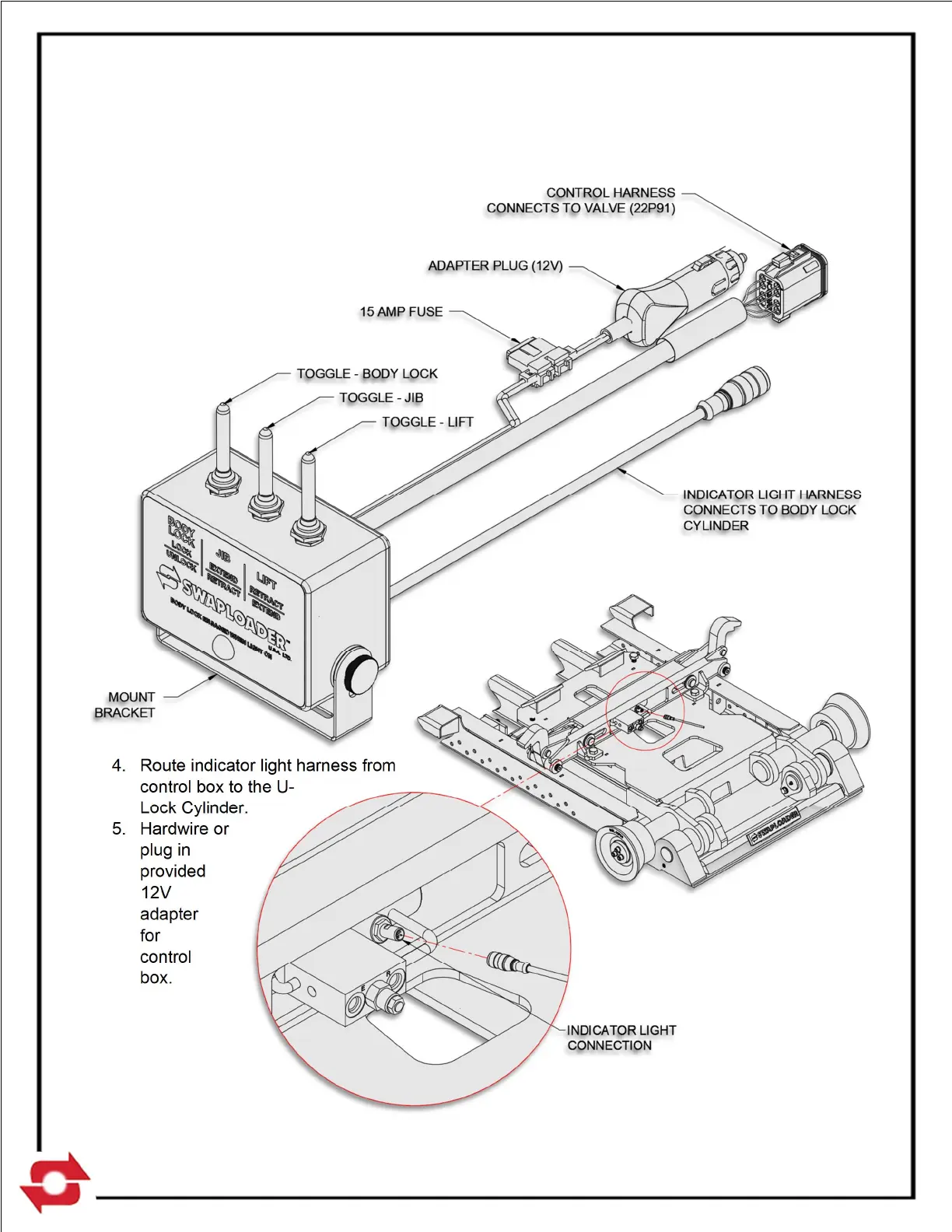

3. Route control harness from valve into the truck cab. Determine the best location in the cab
for the control box location and install with mounting screws (included). The location should
be such that the controls (Pt. No. 22P95) can be easily reached while operating the truck.
4. Route indicator light harness from
control box to the U-
Lock Cylinder.
5. Hardwire or
plug in
provided
12V
adapter
for
control
box.
2-10
