swaploader SL-160 - Page 32

Section II: Installation - Accessories
2.2.INS.ACC.52H13

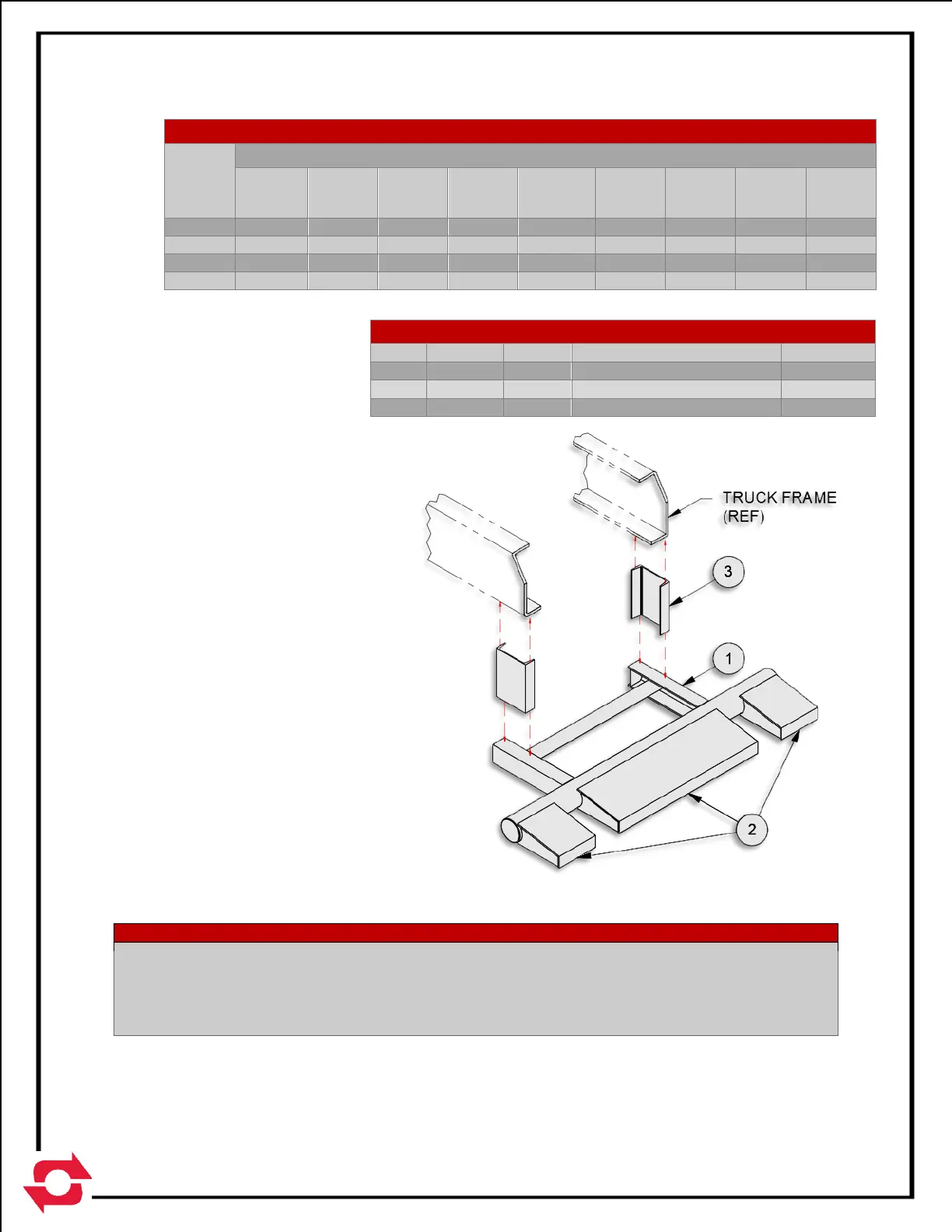

MATERIAL LIST FOR 52H13
ITEM
PART #
QTY
DESCRIPTION
WT-lb/ea.
1
52H12
1
Rear Bumper Weldment
95.66
2
52H13
1
Rear Bumper Extensions
58.42
3
63H94
2
Vertical Channel
9.58
Figure C
NOTE:
1. PRIOR TO ANY WELDING, CONSULT THE TRUCK MANUFACTURE FOR ANY SPECIAL PRECAUTIONS THAT MAY
NEED TO BE TAKEN. TYPICALLY THE BATTERIES MUST BE DISCONNECTED AND THE GROUND LEAD FROM
THE WELDER SHOULD BE AS CLOSE TO THE PART BEING WELDED TO AVOID THE POSSIBILITY OF ARCING
ACROSS BEARINGS, GEARS, ETC.
2. ALL WELDS SHOULD BE DONE UTILIZING A LOW HYDROGEN WELDING PROCESS.
BUMPER LOCATION CHART
DIM. A
DIMENSION B (MAX)
SL-105
SL-145
SL-160
SL-212
SL-214
SL-220
SL-222
SL-240
SL-2418
SL-330
SL-400
SL-412
SL-406
SL-518
SL-520
SL-650
24 5/8”
1 3/4"
22 1/2"
21 3/4"
25 1/4”
21 3/4"
* 21 1/2”
* 21
1/4"
* 24 1/4”
27”
22 5/8”
18 1/2"
21"
20 1/2”
23 3/4"
20 1/2”
* 20"
* 19 3/4”
* 22 3/4”
20 5/8”
17 1/4”
19 1/2”
1 1/4"
22 1/4"
19 1/4"
18 5/8”
16"
18 1/4"
18"
 *Dimensions assume 6” tall longsills. For 8” tall longsills add 2 1/4" to the dimension shown
2-20
