swaploader SL-160 - Page 40

Section II: Installation - Accessories
2.7.INS.ACC.10H93

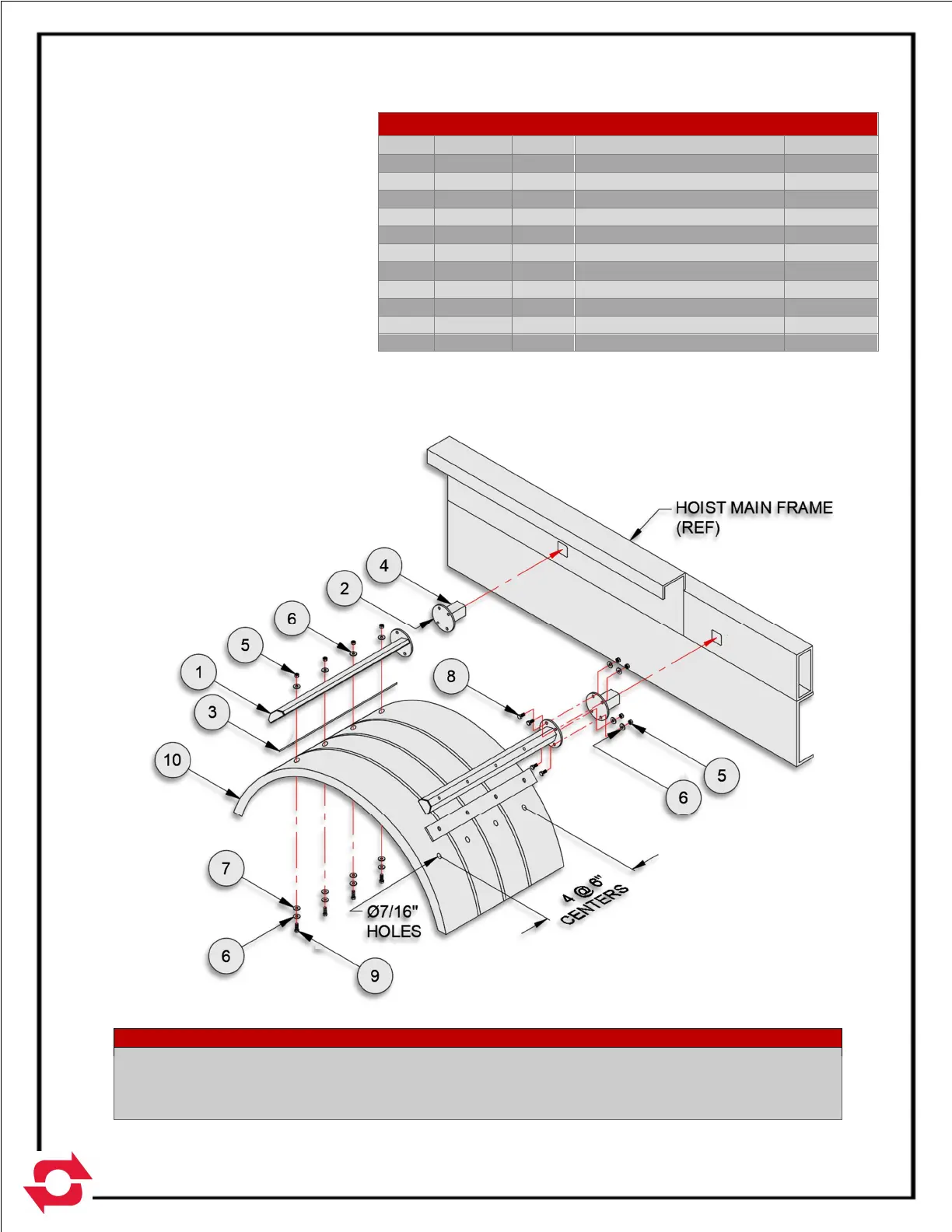

MATERIAL LIST FOR 10H93 OR 11H13
ITEM
PART #
QTY
DESCRIPTION
WT
-
lb/ea.
1
10H74
4
Fender Bracket Wdmt.
8.05
2
21H37
4
Mounting Plate
1.09
3
21H42
4
Rubber Spacer
0.85
4
21H61
4
Fender Tube
1.26
5
00P34
32
3/8
-
16 UNC
Locking Nut
0.02
6
00
771
48
3/8 Dia. Flat Washer
0.05
7
00P78
16
3/8 Dia. Nylon Washer
-
8
00P44
16
3/8
-
16 UNC x
1
-
1/2
HHCS
0.07
9
01P21
16
3/8
-
16 UNC x
2
-
1/2
HHCS
0.09
10
90P24
2
Fender
–
Aluminum
19
.00
10
90P25
2
Fender
–
Steel
35
.00
Note: Will include either (2) 90P24 aluminum fender or (2) 90P25
steel fender depending on order. Installation is the same for both
aluminum and steel fender.
NOTE:
1. PRIOR TO ANY WELDING, CONSULT THE TRUCK MANUFACTURE FOR ANY SPECIAL PRECAUTIONS THAT MAY
NEED TO BE TAKEN. TYPICALLY THE BATTERIES MUST BE DISCONNECTED AND THE GROUND LEAD FROM THE
WELDER SHOULD BE AS CLOSE TO THE PART BEING WELDED TO AVOID THE POSSIBILITY OF ARCING ACROSS
BEARINGS, GEARS, ETC.
Figure
C
2-28
