swaploader SL-160 - Page 73

Section V: Parts
5.0.PAR.SL-160

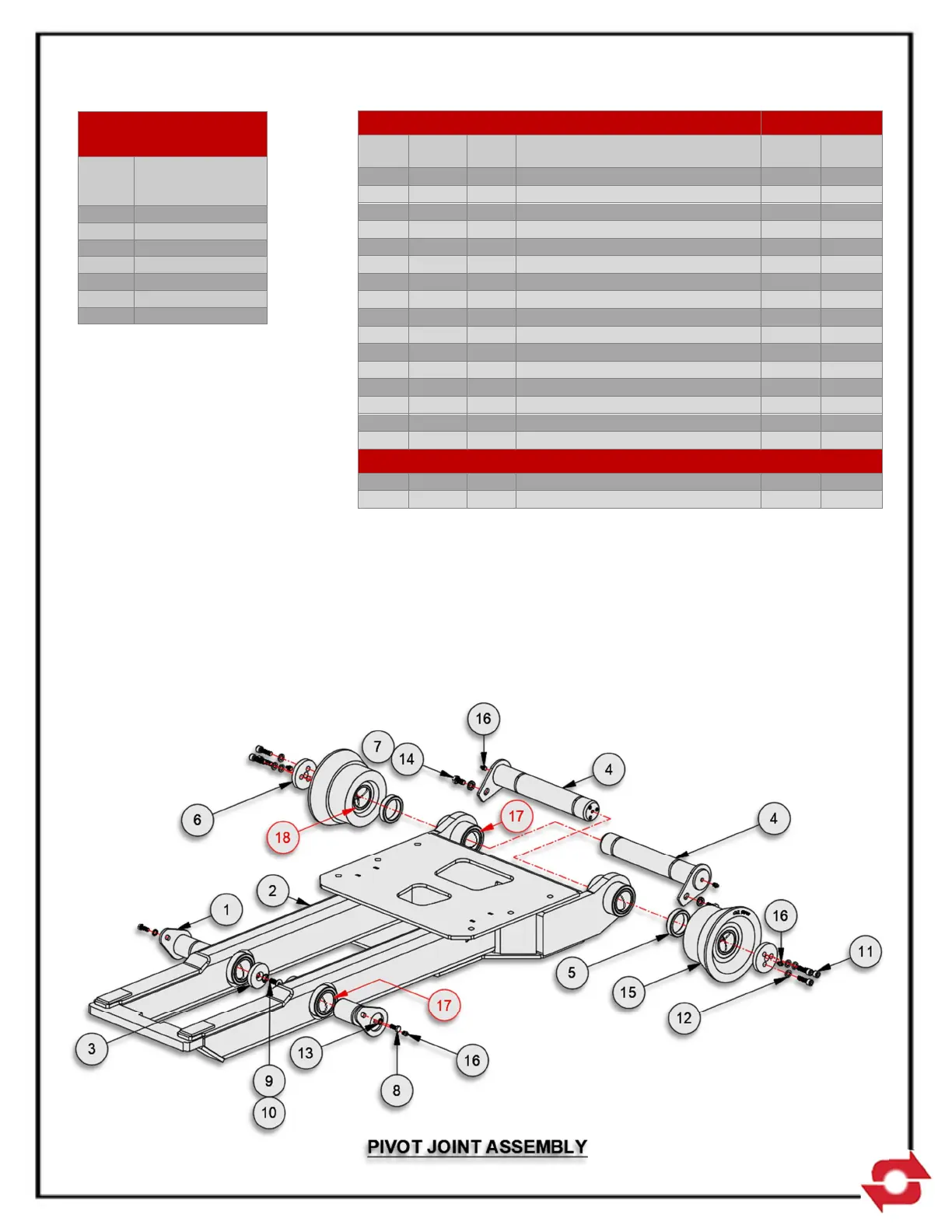

13H65 – PIVOT JOINT SUB-ASSEMBLY SL-160
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
13H23
2
Pin, PJ/OT 2-1/4 x 5-1/2
6.42
12.84
2
13H64
1
Pivot Joint Weldment
246.45
246.45
3 22H76 2 Pin Cap, 1/2 x 2-3/4 0.70 1.40
4
51H
70
2
Pin, PJ/MF 2-1/4 x 13-7/8
16.39
32.78
5
61H94
2
Roller Spacer, 2-1/4 OD x 11/16
0.60
1.20
6
85H21
2
Pin Cap, 3-1/4 x 1/2
1.04
2.08
7
00
P09
2
HHCS 1/2-13 UNC X 1
0.15
0.30
8
00P62
2
HHCS 3/8-16 UNC x 1 Gr8
0.05
0.10
9
00P73
2
FHCS 1/2-13 UNC x 1-1/4 Gr8
0.11
0.22
10
00P86
2
Washer, Lock, Countersunk 1/2
0.06
0.12
11
01P25
6
SHCS 7/16-14 UNC x 1-1/2 Gr8
0.05
0.30
12
01P26
6
Washer, Lock 7/16
0.01
0.06
13
01P28
2
Washer, Lock, Disc 3/8 Pr
0.01
0.02
14
01P30
2
Washer, Lock, Disc 1/2 Pr
0.02
0.04
15 80P09 2 Roller Assy, 6-1/4"x2-1/4ID 37.03 74.06
16
90P03
6
Zerk, Grease - 1/8 NPT
0.01
0.06
BEARINGS
17
23H08
4
Brz Brg, 2-1/4IDx4x2-3/4OD
6.56
26.60
18
23H07
2
Brz Brg, 2-1/4IDx3x2-3/4OD
3.42
6.84
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-3
