Section II: Installation
2.0.INS.SL-212

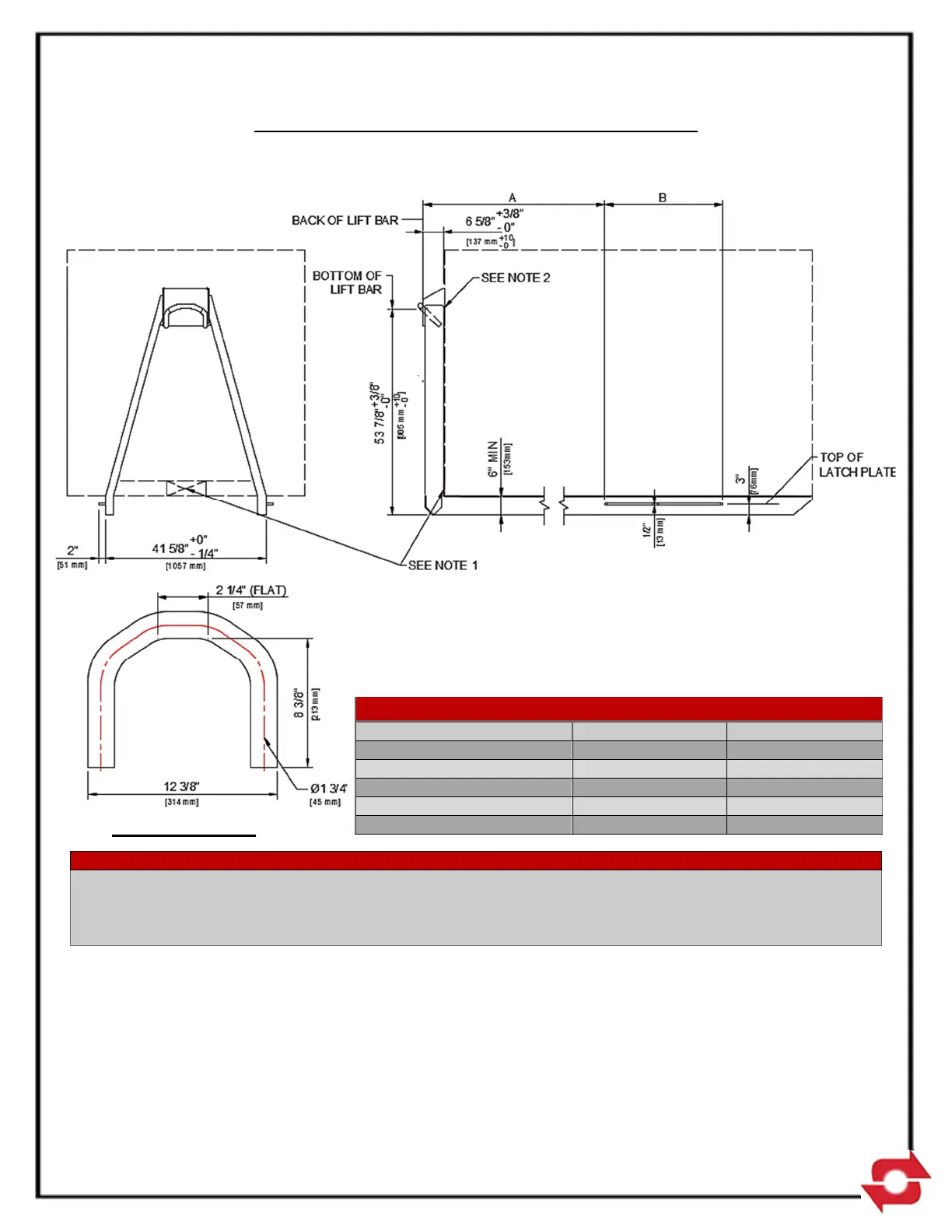

200 SERIES SUB-FRAME CRITIICAL DIMENSIONS
LIFT BAR DETAIL
NOTE:
1. A STRUCTURAL JIB CONTACT POINT LOCATED AS LOW AS ALLOWABLE ON THE CONTAINER FRONT IS REQUIRED.
2. THIS DRAWING PROVIDES THE CRITICAL SUB-FRAME DIMENSIONS FOR COMPATABILITY WITH THE SWAPLOADER HOOK
LIFT HOIST. IT IS THE SUB-FRAME SUPPLIER’S RESPONSIBILITY TO PROVIDE A SUB-FRAME OF SUFFICIENT CAPACITY
WHICH PROPERLY SUPPORTS THE BODY/CONTAINER WHEN USED WITH THE HOOK LIFT HOIST.
200 SERIES SUB-FRAME DIMENSIONS
HOIST COMPATABILITY
A
B
SL-2418HD 84 1/8” [2137 mm] 24” [610 mm]
SL-225 110 3/4” [2813 mm] 36” [915 mm]
SL-180/185/212/240 111 3/4" [2839 mm] 48” [1220 mm]
SL-205 122 3/4" [3118 mm] 36” [915 mm]
SL-220/222 123 3/4" [3143 mm] 48” [1220 mm]
2-13
