Section II: Installation - Accessories
2.5.INS.ACC.50H99

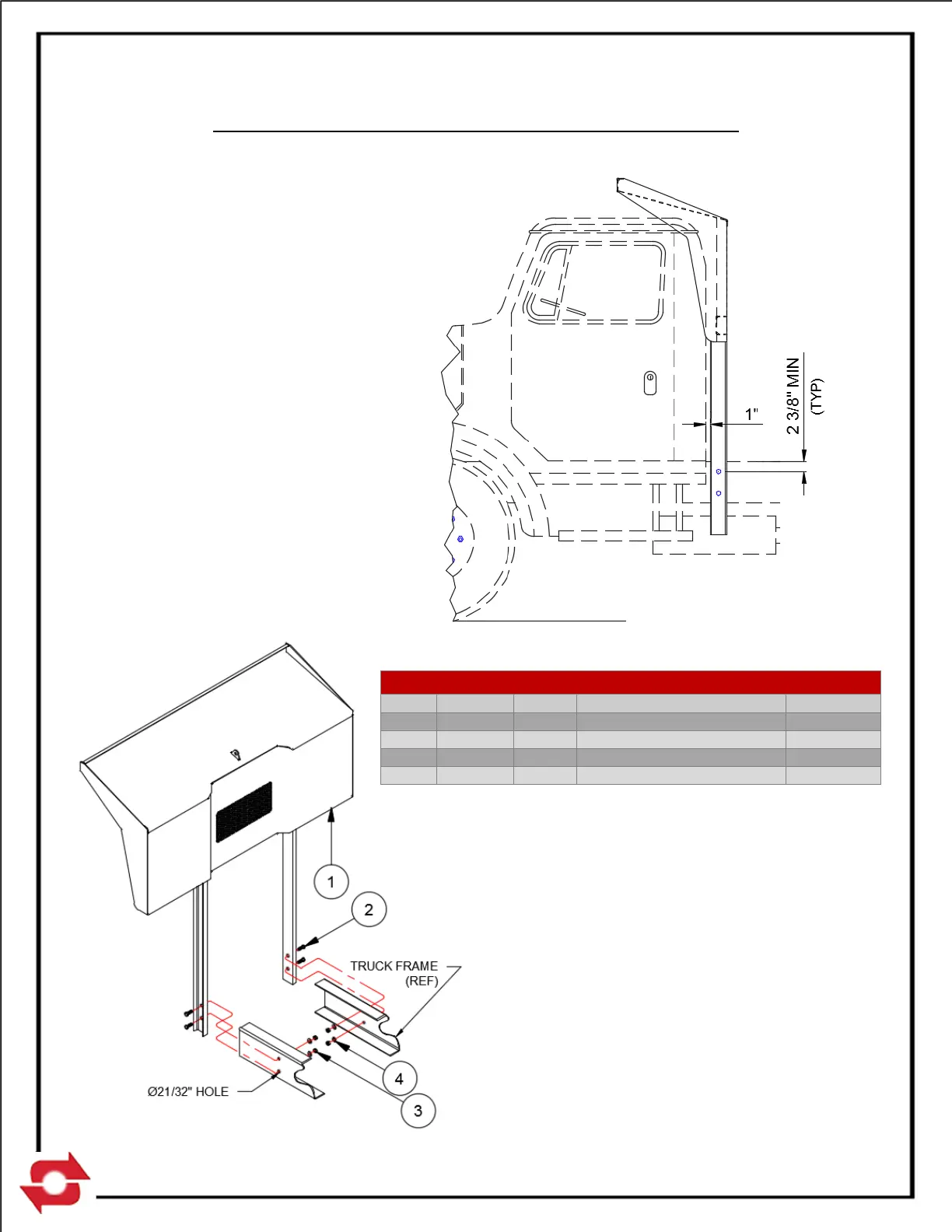

INSTALLATION INSTRUCTIONS – CAB GUARD ASSEMBLY
1. Review all directions and diagrams
provided before starting cab guard
installation.
2. Position cab guard weldment [Pt.
No. 50H95] on frame with sufficient
clearance between cab and cab
guard.
3. Determine location for mounting
holes. Mounting holes should not
be located within 2 3/8” of the truck
frame edge (see Fig. A). Drill
Ø21/32” mount holes through cab
guard channels.
4. Mark mounting holes through the
cab guard weldment onto truck
frame. Remove cab guard
weldment and drill Ø2132” holes in
truck frame.
5. Attach cab guard weldment to truck
frame using fasteners provided
(see Fig. B).
MATERIAL LIST FOR 50H99
ITEM
PART #
QTY
DESCRIPTION
WT
-
lb/ea.
1
50H95
1
Cab Guard Wdmt
295.36
2
00P69
4
5/8
-
11 X 2
HHCS
0.33
3
00P55
4
5/8
-
11 Locking Hex Nut
0.18
4
00
785
4
Ø5/8” Washer Ht
0.08
Figure
A
Figure
B
2-22
