Section V: Parts
5.0.PAR.SL-212
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400

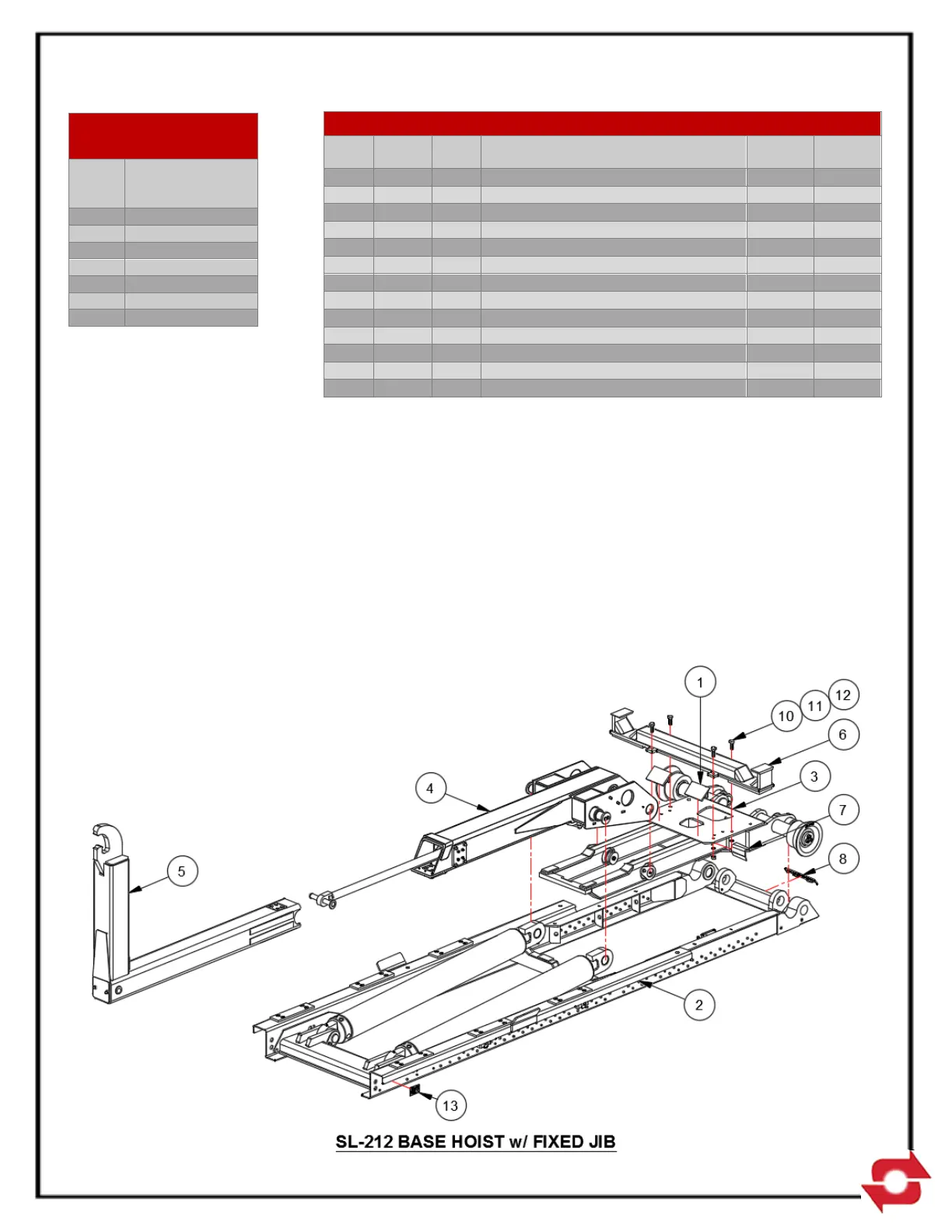

13H01 - BASE HOIST ASSEMBLY SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1 12H99 2
Tube Stop Weldment 3.14 6.28
2 13H03 1
Main Frame Assembly 1036.98 1036.98
3 13H04 1
Pivot Joint Assembly 452.82 452.82
4 13H05 1
Outer Tube Assembly 428.46 428.46
5 13H08 1
Fixed Jib Assembly 291.80 291.80
6 13H22 1
Body Lock Weldment 311.44 311.44
7 23H56 1 Lockout Valve Ramp 1.20 1.20
8 62H99 1
Logo Name Plate .29 .29
9 90H89 1
Base Cylinder Circuit 21.44 21.44
10 00767 4
Washer, Lock - 5/8 Dia 0.43 0.43
11 00P24 4
Nut, Hex 5/8-11 UNC Gr8 0.09 0.36
12 00P91 4
HHCS 5/8 - 11 x 1-3/4 Gr8 0.31 1.24
13 91P18 1
Serial Tag 0.02 0.02
5-1
