swaploader SL-212 - Hoist Installation Kit (EHV)

VI: Options
6.0.OPT.SL-212

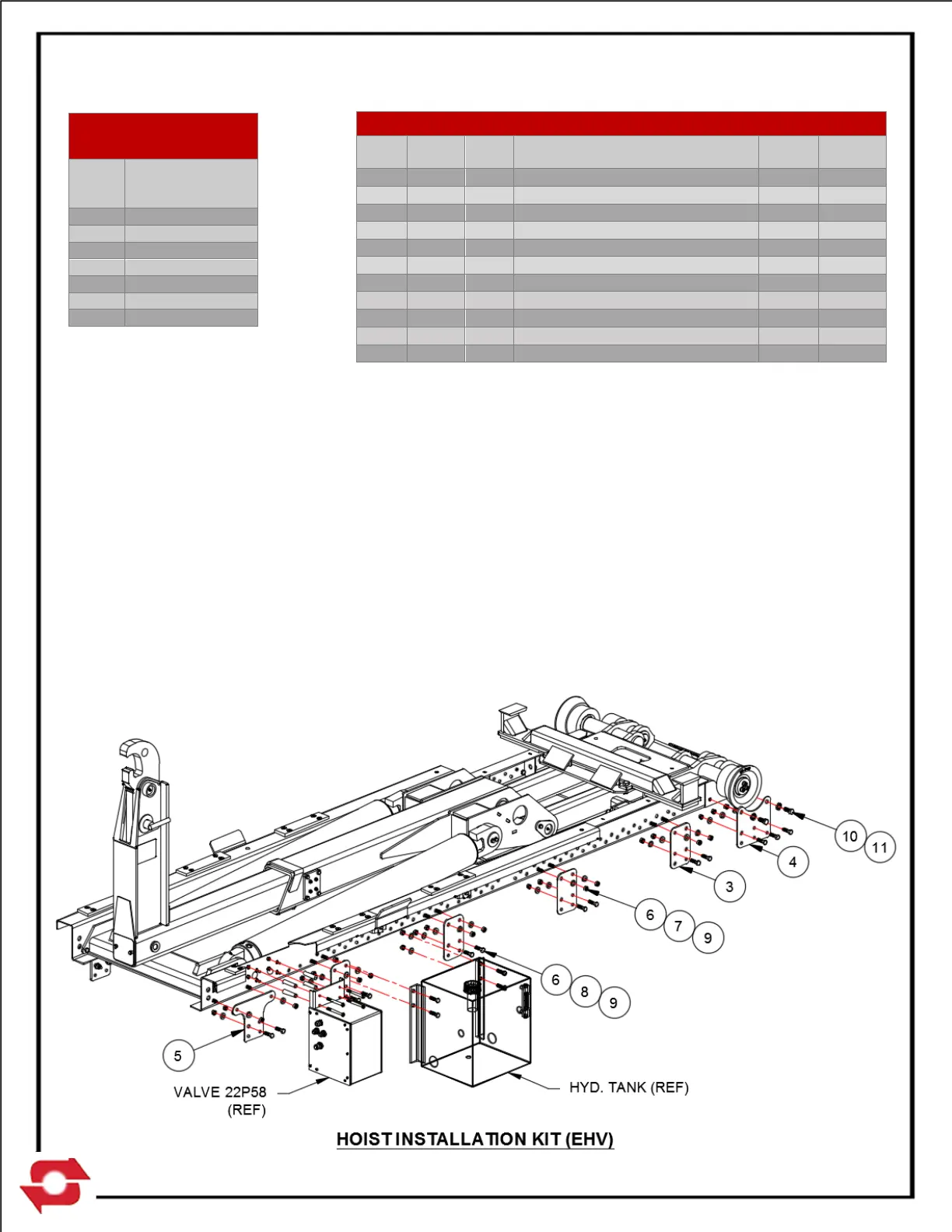

13H47 – HOIST INSTALLATION KIT (EHV) SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1 13H09 1
Parts & Op, SL-212
1.00 1.00
2 13H10 1
Decal Assembly, SL-212
0.74 0.74
3 25H89 8
Mount Bkt, 8 1/4 x 5
2.08 16.64
4 25H90 2
Mount Bkt, 8 1/4 x 8 3/4
4.41 8.82
5 25H91 2
Mount Bkt, 8 1/4 x 11
3.68 7.36
6 00784 50
Washer, Flat - 1/2 Dia HT
0.01 0.50
7 00P01 20
HHCS 1/2-13 UNC x 1-1/2 Gr8
0.21 4.20
8 00P15 30
HHCS 1/2-13 UNC x 1-3/4 Gr8
0.20 6.00
9 00P35 50 Nut, Lock 1/2-13 UNC 0.05 2.50
10 00P56 4
HHCS 5/8-11 UNCS x 1-1/2
0.18 0.72
11 01P31 4
Washer, Lock, Disc 5/8 Pr
0.03 0.12
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
6-4
