swaploader SL-212 - Page 68

Section V: Parts
5.0.PAR.SL
-
212

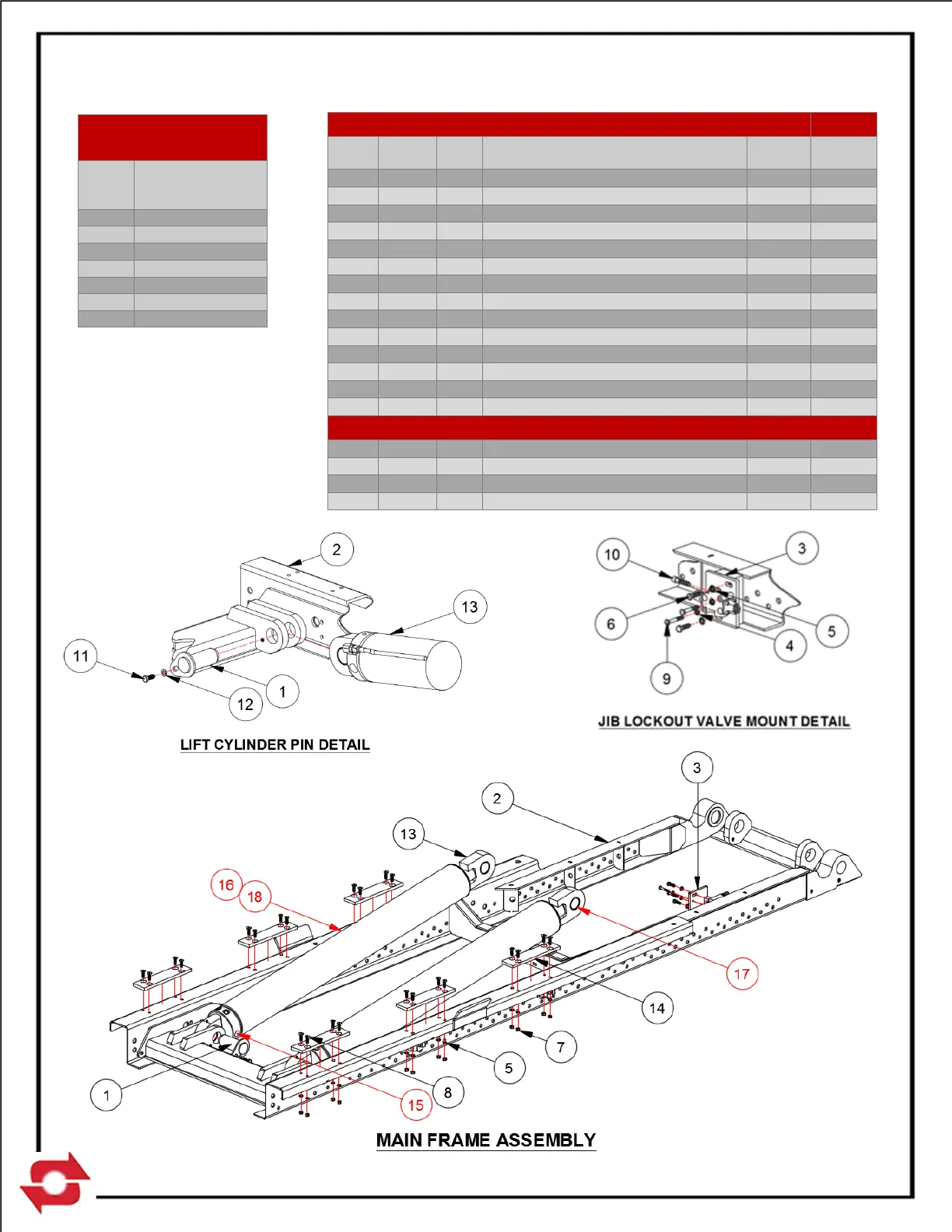

13H03 – MAIN FRAME SUB-ASSEMBLY SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1 12H29 2
Main Frame Pin
5.50 11.00
2 13H11 1
Main Frame Weldment
518.19 518.19
3 42H11 1
Jib Lockout Mount Weldment, 5x4-1/4
2.39 2.39
4 00752 2
Washer, Lock - 5/16 Dia
0.03 0.06
5 00755 26
Washer, Lock - 3/8 Dia
0.03 0.78
6 00P13 2 HHCS 3/8-16 UNC x 1-1/4 Gr8 0.10 0.20
7 00P14 24
Nut, Hex 3/8-16 UNC Gr8
0.02 0.48
8 00P68 24
FSCS 3/8-16 UNC X 1-1/4 SS
0.04 2.64
9 01P08 2
HHCS 5/16-18 x 2 Gr8
0.12 0.24
10 01P20 1
SHCS 3/8-16 UNC x 1-3/4 Gr8
0.07 0.07
11 01P30 2
Washer, Lock, Disc 1/2 Pr
0.02 0.04
12 00P31 2
HHCS 182-13 UNC x 1-1/4
0.14 0.28
13 22P63 2
Hyd Cyl 5.5x2.5x46
274.00 548.00
14 90P71 6
Wear Pad, 2-3/4x1/2x11-3/4
0.70 4.20
LIFT CYLINDER SERVICE PARTS
15 21P11 2
Counterbalance Valve Cartridge
16 22P69 1
Seal Kit
17 22P70 1
Spherical Bearing
18 22P13 1
Hydraulic Return Line
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
