swaploader SL-212 - Page 39

Section II: Installation - Accessories
2.4.INS.ACC.51H11

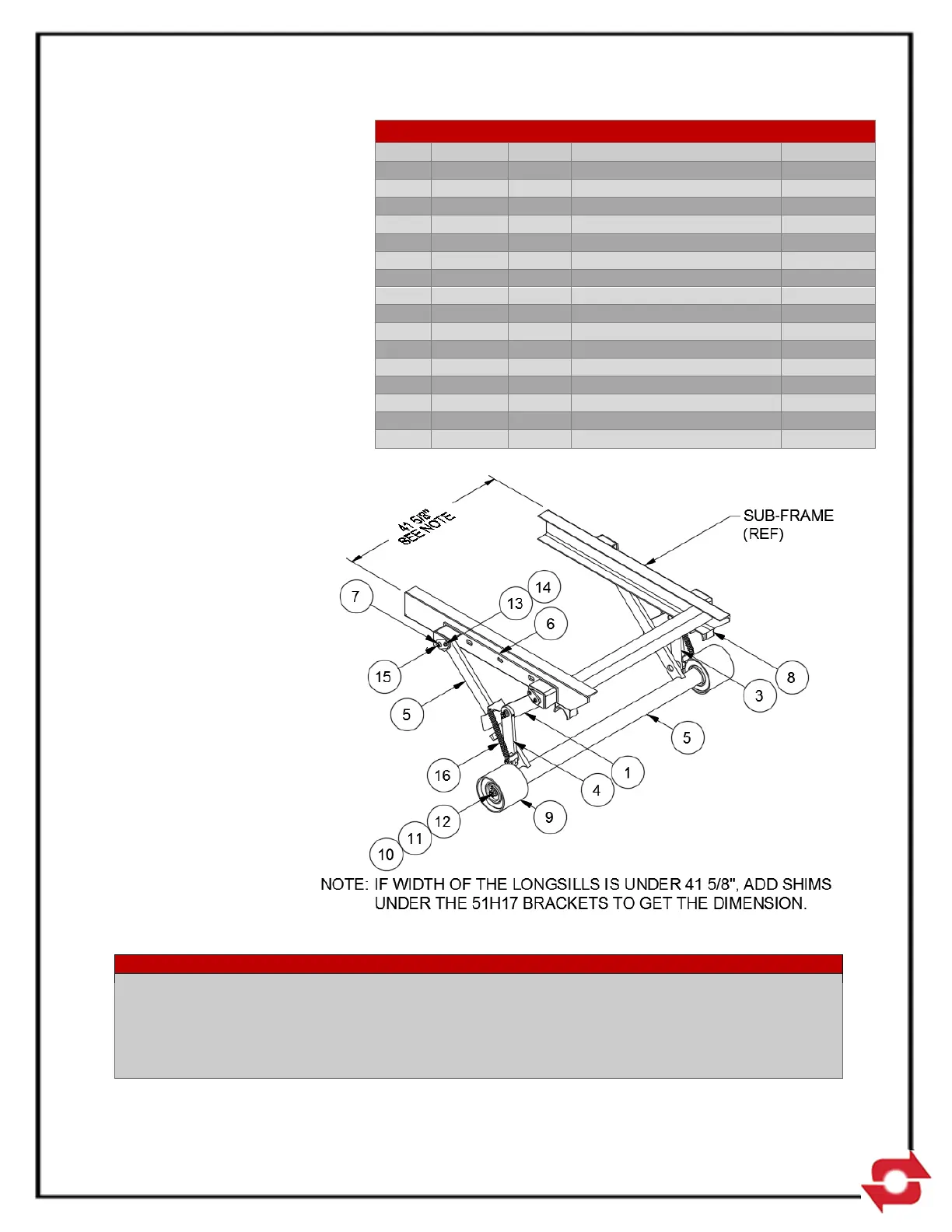

MATERIAL LIST FOR 51H11
ITEM
PART #
QTY
DESCRIPTION
WT
-
lb/ea.
1
51H12
1
Long Pivot Arm R.H
16.08
2
51H13
1
Long Pivot Arm L.H.
16.08
3
51H14
1
Short Pivot Arm R.H.
8.89
4
51H15
1
Short Pivot Arm L.H.
8.89
5
51H16
1
Bumper Tube
113.05
6
51H17
2
Mount Bracket
19.94
7
51H18
4
Bumper Pin
1.12
8
51H19
2
Bumper Cradle
1.64
9
51H20
2
Bumper Roller
27.07
10
01P06
6
3/4
-
10 Slotted Hex Nut
.22
11
00
786
6
Ø3/4 Flat Washer HT
.10
12
00P98
6
Ø5/32 x 1 1/2 Cotter
Pin
.01
13
00P03
4
3/8
-
16 x 3/4 HHCS
.11
14
00
755
4
Ø3/8 Lock Washer
.05
15
90P20
10
1/4
-
8 Grease Zerk
.01
16
90P3
3
2
1
-
1/8 O.D.
x
10 Spring
.60
NOTE:
1. PRIOR TO ANY WELDING, CONSULT THE TRUCK MANUFACTURE FOR ANY SPECIAL PRECAUTIONS THAT MAY
NEED TO BE TAKEN. TYPICALLY THE BATTERIES MUST BE DISCONNECTED AND THE GROUND LEAD FROM THE
WELDER SHOULD BE AS CLOSE TO THE PART BEING WELDED TO AVOID THE POSSIBILITY OF ARCING ACROSS
BEARINGS, GEARS, ETC.
2. DURING INSTALLATION OF THE BUMPER, CHECK TO MAKE SURE THAT THE POSITION OF THE BUMPER DOES
NOT INTERFERE WITH THE LOADING AND UNLOADING OF TRUCK BODIES.
Figure C
2-21
