swaploader SL-212 - Page 79

VI: Options
6.0.OPT.SL-212

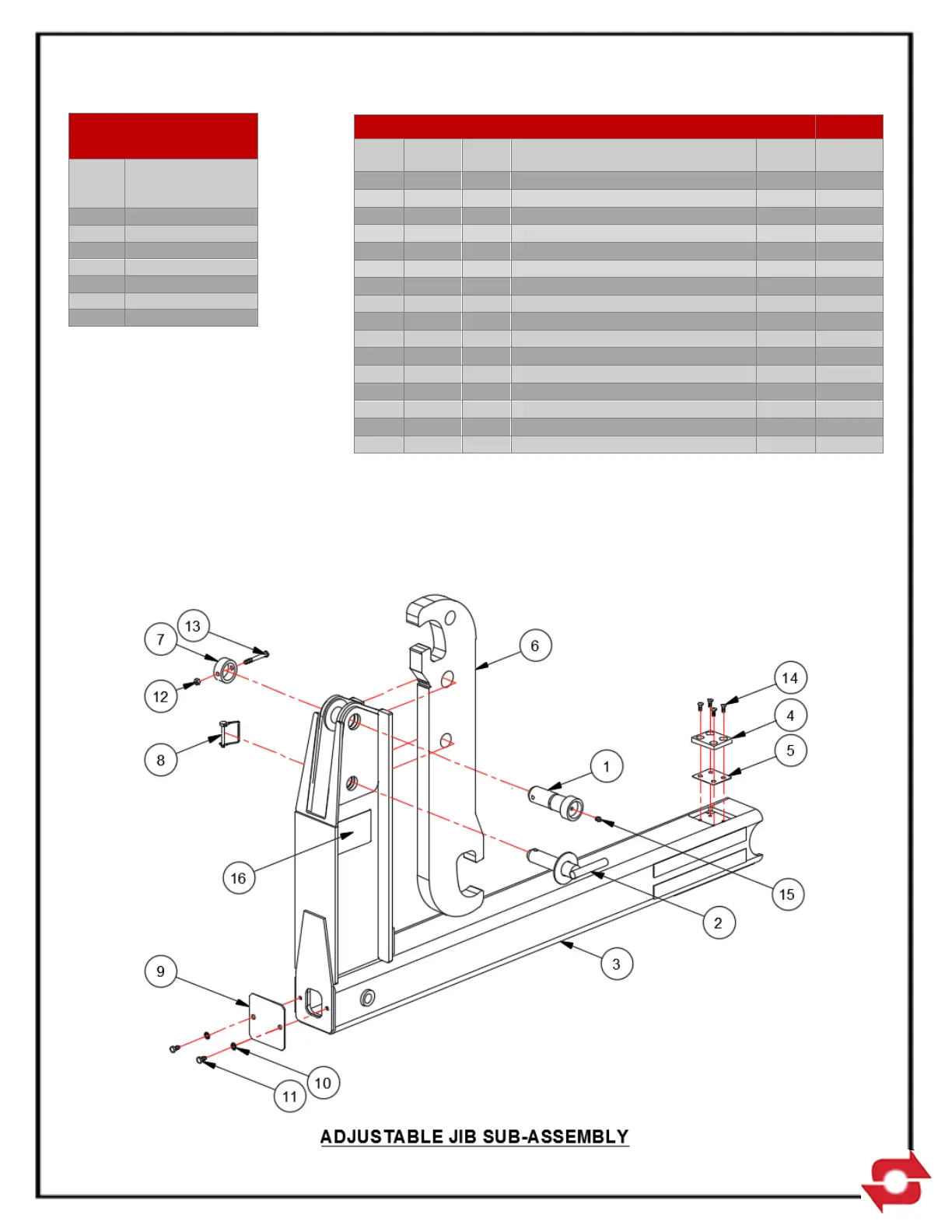

13H07 – ADJUSTABLE JIB SUB-ASSEMBLY SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1 12H35 1
Pivot Pin
3.20 3.20
2 12H36 1
Lock Pin
3.00 3.00
3 13H18 1 Adj. Jib Wdmt 36"/54" 328.09 328.09
4 23H54 1
Wear Pad, 2-3/4x1/2x3-1/4
0.19 0.19
5 24H67 1
Shim, Jib 2-3/4 x 14GA x3-1/4
0.20 0.20
6 24H80 1
Hook, Adj Jib, 36/54
120.40 120.40
7 24H83 1
Tube 2-1/2OD x 1
0.30 0.30
8 53586 1
Safety Snap Pin, 3/8 Dia x 2-1/2 Lg
- -
9 62H11 1
Cover, Jib 5-1/4x11GAx5-1/4
0.90 0.90
10 00755 2
Washer, Lock - 3/8 Dia
0.03 0.06
11 00P03 2
HHCS 3/8-16 UNC x 3/4
0.04 0.08
12 00P34 1
Nut, Lock 3/8-16
0.02 0.02
13 01P01 1
HHCS 3/8-16 UNC x 3-1/4
0.01 0.01
14 01P50 4
FHCS 5/16-18 UNC x 3/4
0.02 0.08
15 90P03 1 Zerk, Grease - 1/8 NPT 0.01 0.01
*
16 90P91 2
Decal, Adjustable Jib Operation
0.01 0.02
* Item not shown.
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
6-1
