Duct connections
1 2 3 4 5
Supply air
∅ 125
Extract air
∅ 125
Outdoor air
∅ 125
Exhaust air
∅ 125
Extract
air from
cooker
hood
∅ 100
599
700
719
361
369
293
45
201
91
239
364
508
79
157
207
217
235
263
1 23 45

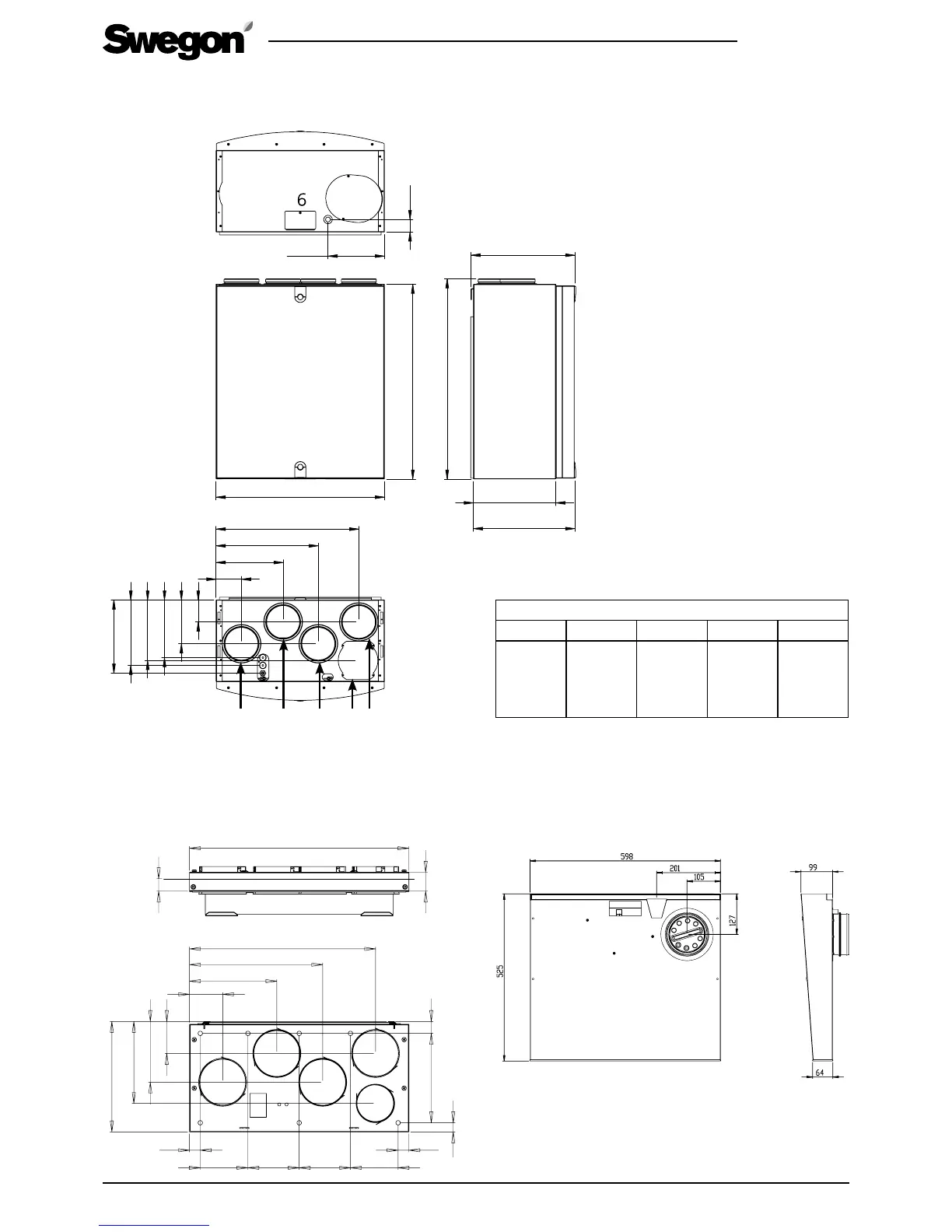

8.7 Measurements
Swegon CASA R3
Swegon CASA Jazz cooker hood
The illustration shows the right-hand version. On the left-hand
version, the duct connection is on the left-hand side.
Ceiling mounting frame, (R-model)
302
91
239
364
508
87
166
224
33 244
25
30
130 140 140 130
30
599
34
52
6: Condensate connection
