Swegon casa tango - Technical Data; Basic Ventilation Commissioning Diagram; Boosted Ventilation Diagram

EN
Swegon reserves the right to alter specifications.
37
www.swegonhomesolutions.com
7. Technical data
7.1.2 Boosted ventilation
a:
Extract air component
KSO-125

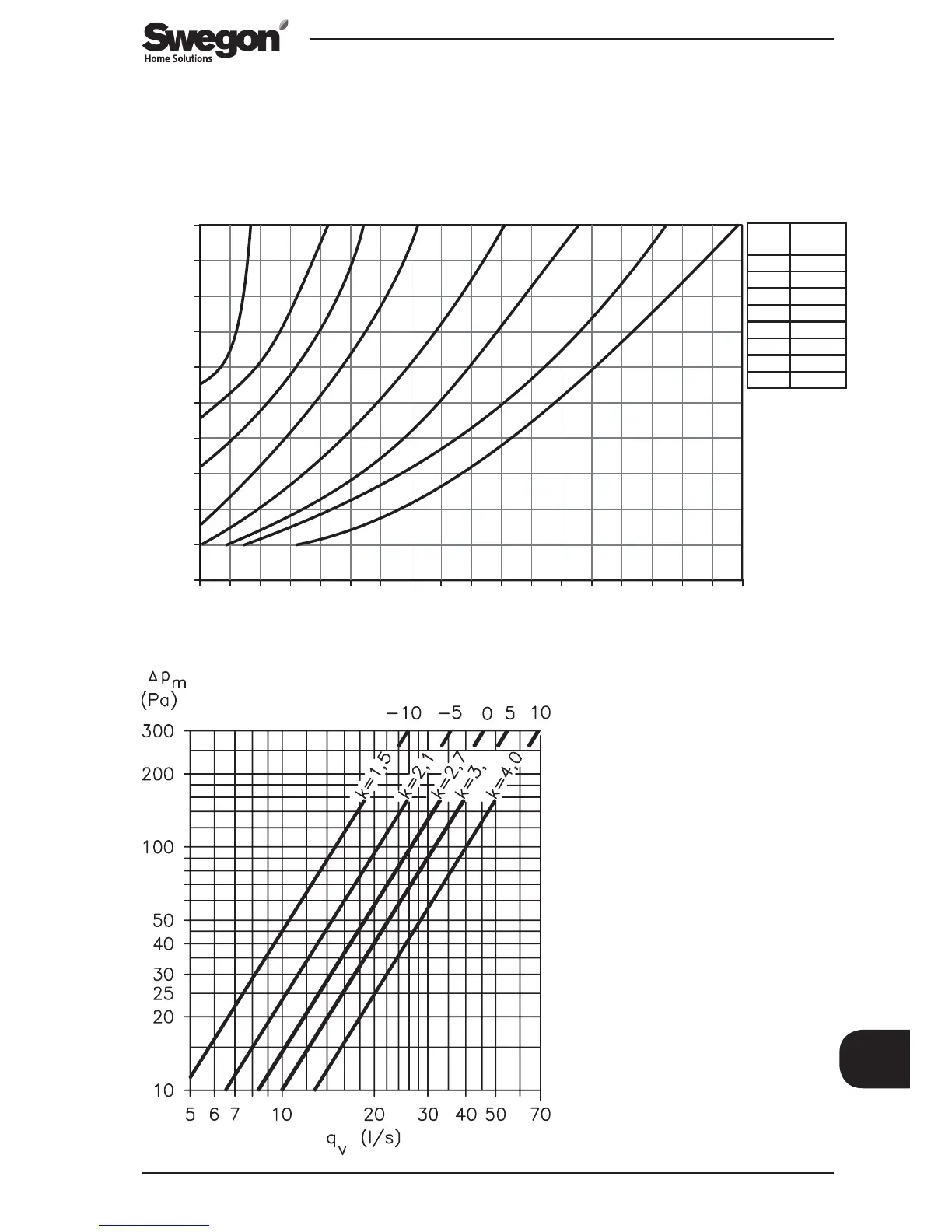

7.1 Commissioning diagram
7.1.1 Basic ventilation
Airflow rate ( l/s )
Pressure differential (Pa)
Open holes in the damper
1 2 3 4 5 6 7 8
0
25
50
75
10
0
12
5
15
0
17
5
20
0
22
5
250
3456789101112131415161718192021
Open
holes
K-value
1 0,31
2 0,44
3 0,53
4 0,65
5 0,80
6 0,98
7 1,17
8 1,31
