Swegon GLOBAL PX User Manual

15
Operation and maintenance instructions
1, 2 and 3 must be installed by an accredited electrician
Note: internal electrical coils, motorized dampers, internal fan-pressure sensors, exible connections and
slip-clamps have to be ordered initially and are all pre-mounted and factory wired. Internal heating water-
coil accessory is pre-mounted but has to be hydraulically and electrically connected by the installer.
GLOBAL RX TOP
GLOBAL RX
1
2
3
4
5
6
6
7
8
9
13
15
14
17
17
18
18
19

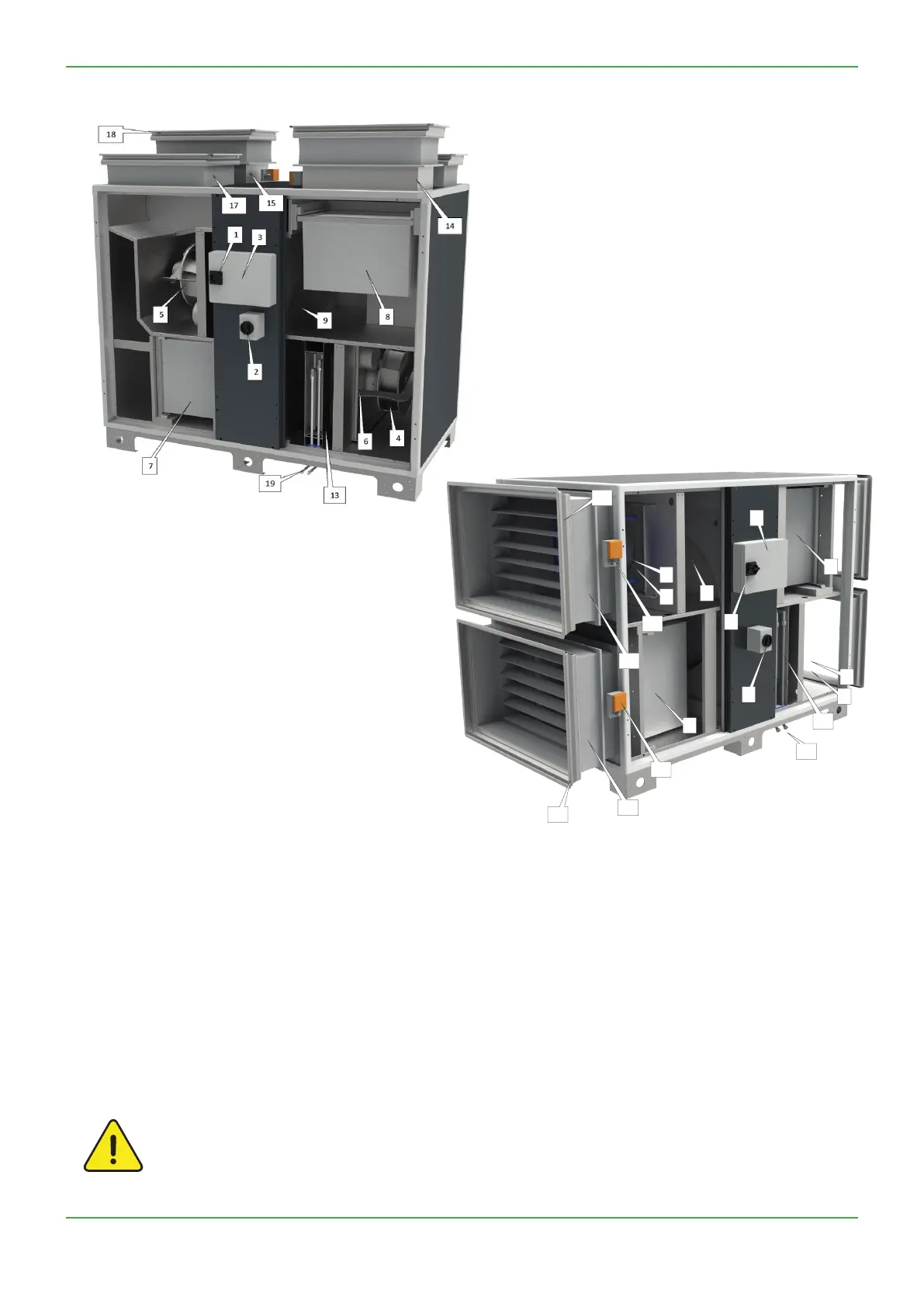

COMPONENTS GLOBAL RX
1. Main power switch
2. Main power switch for electrical coils
(both internal pre-hating and post-heating)
3. Wiring box TAC controller
4. Supply fan
5. Extract fan
6. Kit CA -airow measurement (option)
7. Outdoor air lter (bag)
8. Extract air lter (bag)
9. Heat exchanger (Rotary)
13. Internal post-heating water or electrical coil (accessory)
14. Motorized damper (at outdoor air side - accessory)
15. Motorized damper (at exhaust air side - accessory)
17. Flexible connection(accessory)
18. Slip Clamps (accessory)
19. Water connection for postheating (accessory)
