FIRE DAMPER - FD
PRODUCT OVERVIEW
DIMENSIONS
INSTALLATIONS
ACTUATORS
ACCESSORIES
REPLACEMENTS
MAINTENANCE AND OPERATION
Possible damper orientations
2
1
4

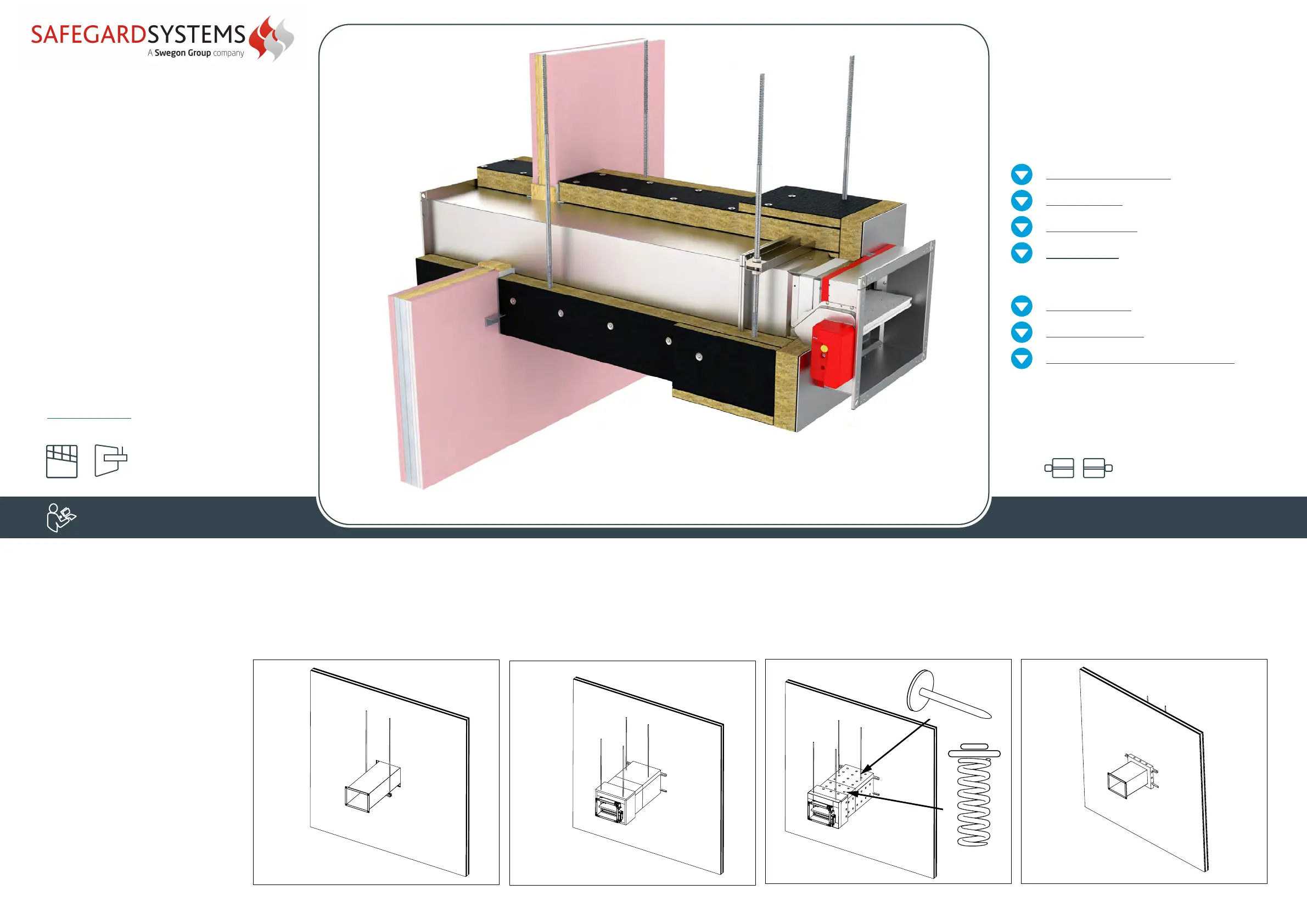

1. Place the damper in an opening
(B + 80) x (H + 80). Place ventilation
duct trough wall. Distance between
suspensions is max. 800 mm
(thickness of threaded rod for
suspension should be M12 or more.
Damper blade must be closed during
installation!
2. Install fire damper and secure it to
ventilation duct. Fill space between duct
and wall with mineral wool (Isover U protect).
Additionally, paint wool with Isover BSF in
thickness of 1 mm.
3. Close installation with L profiles
30x30x3 mm. Additionally fix profiles
to duct with self-tapping screws, and
screw them to wall with 4,5x50 screws
with 200 mm distance between them.
On connection wool-wall apply glue
Isover BSK in thickness of 2 mm.
Repeat the same procedure on the
other side.
4. Secure the wool with welding nails. Nails are placed 60 mm from the end of the plate and 150 mm
between each other. Isover Fire Protect Screw screws are additionally used on the corner on every
150 mm. Additionally place steel protection on place where insulation on damper ends. Place the wool on
ventilation duct in length of 80 mm and secure it with welding nails.
Test the operation of the damper blade!
3
Technical drawing
Installation remote
from flexible/rigid
wall
Flexible wall: The wall is composed of 2x2
plasterboard boards,12.5 mm thick, installed on a
steel construction. To fulfill the classification it is NOT
mandatory to use the mineral wool inside the wall
(mineral wool with density up to 60 kg/m³ can be
used).
RIgid wall: The wall is composed of concrete blocks
(minimumdensity of 550 kg/m³) or reinforced concrete
(minimum density of 2200 kg/m³) and with a minimum
thickness of 100 mm.
Installation only possible with FD40!
INSTALLATION
Always ensure the damper is sufficiently supported
