SWF E-Series User Manual

75 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Page #19 background image

14

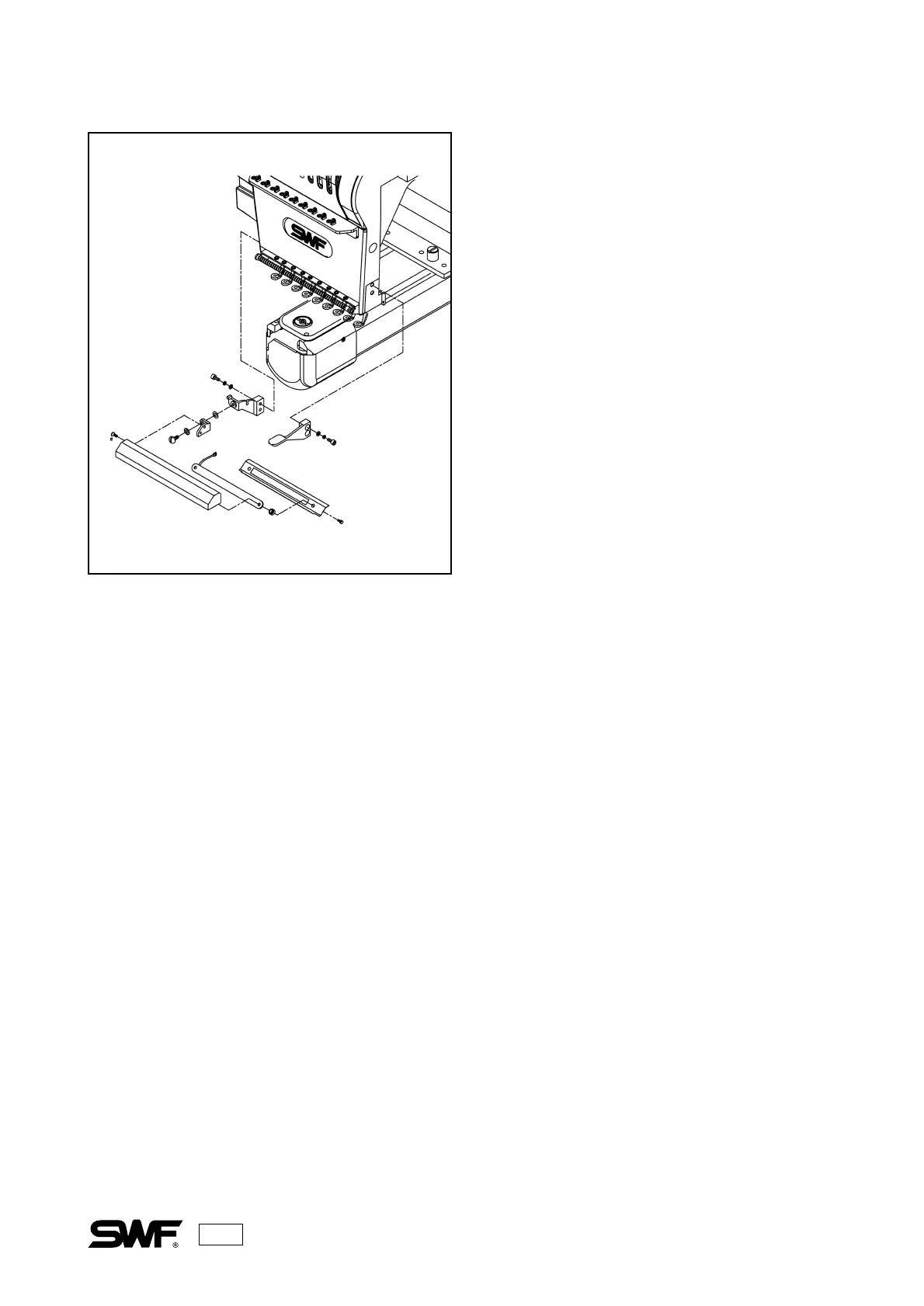

Installing Lamp (Optional)

1) Disassemble the cover on the left and install the

lamp as shown in the picture.

Lamp

Table of Contents

Other manuals for SWF E-Series

User Manual71 pages

Questions and Answers:

A
Anthony HammondSep 12, 2025
What causes thread break before trimming on SWF E-Series?
- S
  samantha50Sep 12, 2025
  A thread break before trimming on your SWF Sewing Machine can be caused by the upper thread being too short (adjust upper thread tension), a dent or damage to the movable blade (remove dent using whetstone or sandpaper or change movable blade), the lower thread being too short and not unwinding smoothly (adjust or change bobbin case spring), or the lower thread being too weak or too elastic (clean/check for dent in thread guide on the bobbin case, change lower thread).
C
Curtis ScottAug 22, 2025
Why is my SWF E-Series Sewing Machine showing operation failure?
- L
  Leslie OchoaAug 23, 2025
  Operation failure in your SWF Sewing Machine can be due to several reasons: loose belt tension or belt damage (adjust belt tension or change the belt), power failure or short-circuit of fuse (check and change the fuse in the main shaft motor), or failure to sense signals for needle position or 1 rotation (run manual color change and check if signal lamps blink at the correct needle position, adjust the half-turn film, address the cause and press RESET, then check if the lamp turns green). Also, check the connection of the START switch.
E
ericnewmanAug 25, 2025
What to do if my SWF E-Series has bad color change?
- J
  Joshua WhiteAug 25, 2025
  If your SWF Sewing Machine has a bad color change, it could be due to several factors. Refer to the user’s manual, run a manual color change, and check if the signal lamps (needle set lamp & needle position lamp) blink at the correct needle position. Adjust the half-turn film. Other potential causes include an incorrect position of the needle bar (set it to the correct position), an incorrect position of the take-up lever (adjust so take-up lever is in line with other levers in stop position, upper shaft angle: 100°), or a bad connection (change fuse F3 in the joint board or check the connection).
T
Tim MoralesAug 27, 2025
What causes bad stitch quality on SWF E-Series Sewing Machine?
- G
  griffithlisaAug 28, 2025
  Bad stitch quality on your SWF Sewing Machine can stem from several causes: bad tape (correct tape), inadequate tension on the X-Y belt (adjust tension), foreign substance in the X-Y rail (clean the rail), failure of the X/Y driver board (change circuit board), or a heavy load on the frame (reduce speed of main shaft).
A
Alyssa FloresAug 29, 2025
What causes poor stitch tension on my SWF E-Series Sewing Machine?
- M
  madison91Aug 29, 2025
  Poor stitch tension in your SWF Sewing Machine can be attributed to: weak upper thread tension (adjust tension), uneven upper thread tension due to foreign substances (clean main and sub tension adjusters in the thread tension adjusting plate), weak lower thread tension (adjust tension), uneven lower thread tension (clean bobbin case and check tension on bobbin spring), thread thickness (change to quality thread), poor timing of needle and hook (adjust timing), or insufficient oil in hook (oil the raceway of hook).
A
Arthur CherryAug 31, 2025
What causes needle breaks on my SWF Sewing Machine?
- D
  Danielle ZimmermanAug 31, 2025
  Needle breaks in your SWF Sewing Machine can occur due to: a bent needle (change needle), a bad quality needle (space the needle and the hook point), the tip of the needle being worn or bent (correct the installation), the needle touching the hook point (check if needle plate is unscrewed), incorrect installation of the needle (adjust the position of the needle bar), or the needle touching the needle hole on the plate.
K
karinacummingsSep 18, 2025
What causes failure to hold upper thread on SWF Sewing Machine?
- J
  Joseph CurrySep 18, 2025
  Failure to hold the upper thread on your SWF Sewing Machine can be caused by short strokes of the upper thread holder (adjust stroke), or the upper thread holder being overloaded (adjust the workload).
J
John PorterSep 13, 2025
What causes failure of upper thread holder solenoid on SWF E-Series?
- J
  Jennifer KimSep 13, 2025
  Failure of the upper thread holder solenoid on your SWF Sewing Machine can be due to a poor connection or quality of the solenoid (check/change solenoid & connection), a bad connection (check connection), or a poor quality circuit board (change thread detecting plate in sub controller).
N
Natalie FranklinSep 10, 2025
What causes trimmer return failure on SWF E-Series Sewing Machine?
- J
  johnspatrickSep 12, 2025
  Trimmer return failure on your SWF Sewing Machine may be due to a poor connection of the sensor (check connection), a bad circuit board (change circuit board), a bad sensor or sensor position (change sensor, clean around the sensor, or adjust the location of the sensor unit), or a dirty area around the sensor.
C
Charlotte MaysSep 6, 2025
What causes bad jump on SWF Sewing Machine?
- W
  wanda67Sep 7, 2025
  A bad jump on your SWF Sewing Machine can be caused by a bad motor and bad motor wiring (check wiring and change motor), a bad connection (check connection), switch failure on the tension adjusting board, or a bad circuit board (change switch and circuit board).
