52
CAUTION
Color changes must be done when the upper shaft angle is at 100 degrees. If the
needle is not in the center of the needle hole after adjustment, contact your
machine distributor for repair.

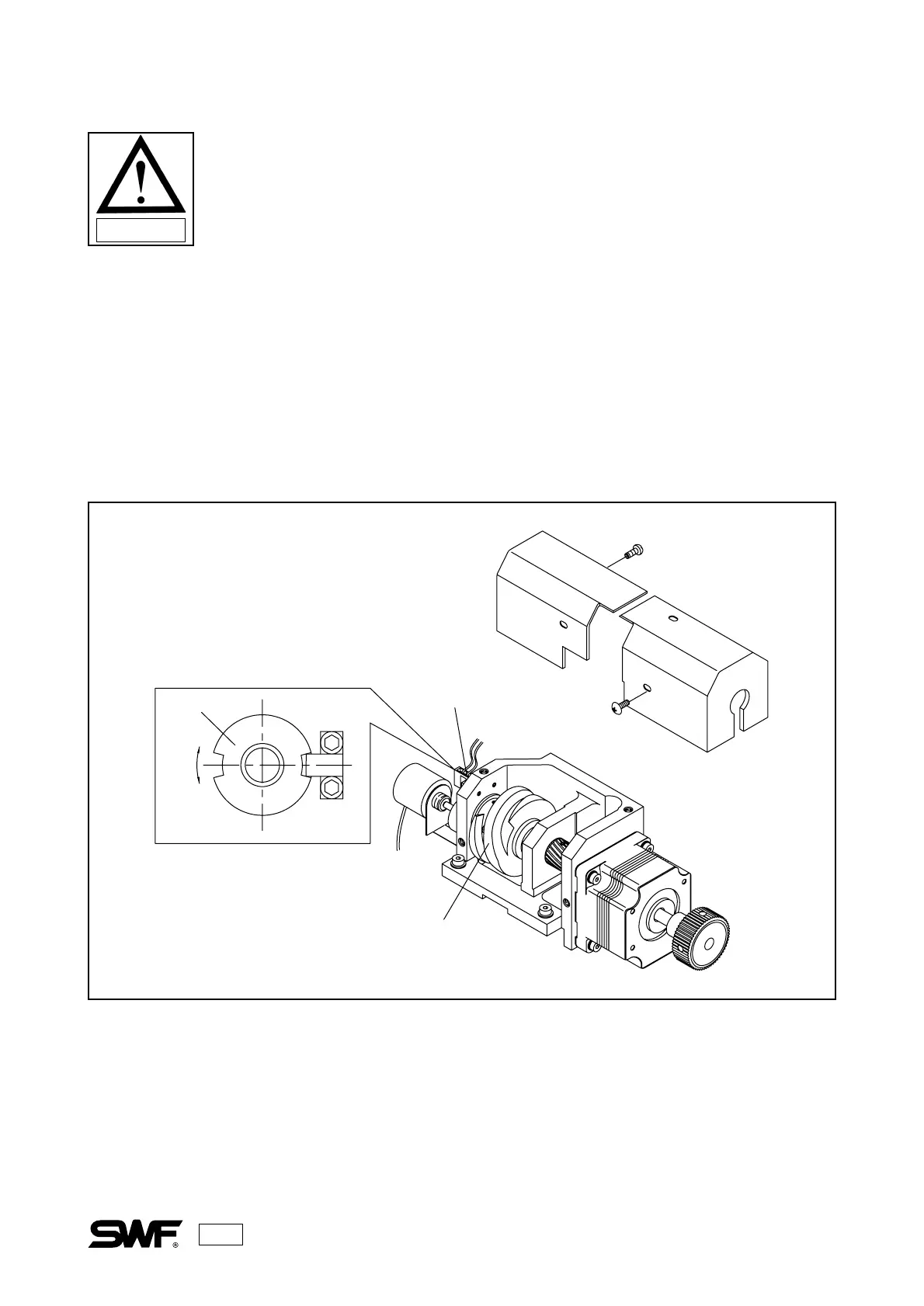

Color Change Adjustment
When the machine changes needles (color change) the needle should be in the center of the needle hole. If it
is not, manually adjust the cam so that the roller is located on the right center of the straight line of the cam.
Open the cover of the half turn sensor and adjust so that the center is lined up with the center of the half-turn
film.
Half-Turn Film
Half-Turn Sensor
Color Change Cam
Half-Turn Sensor
To Next Page
