20

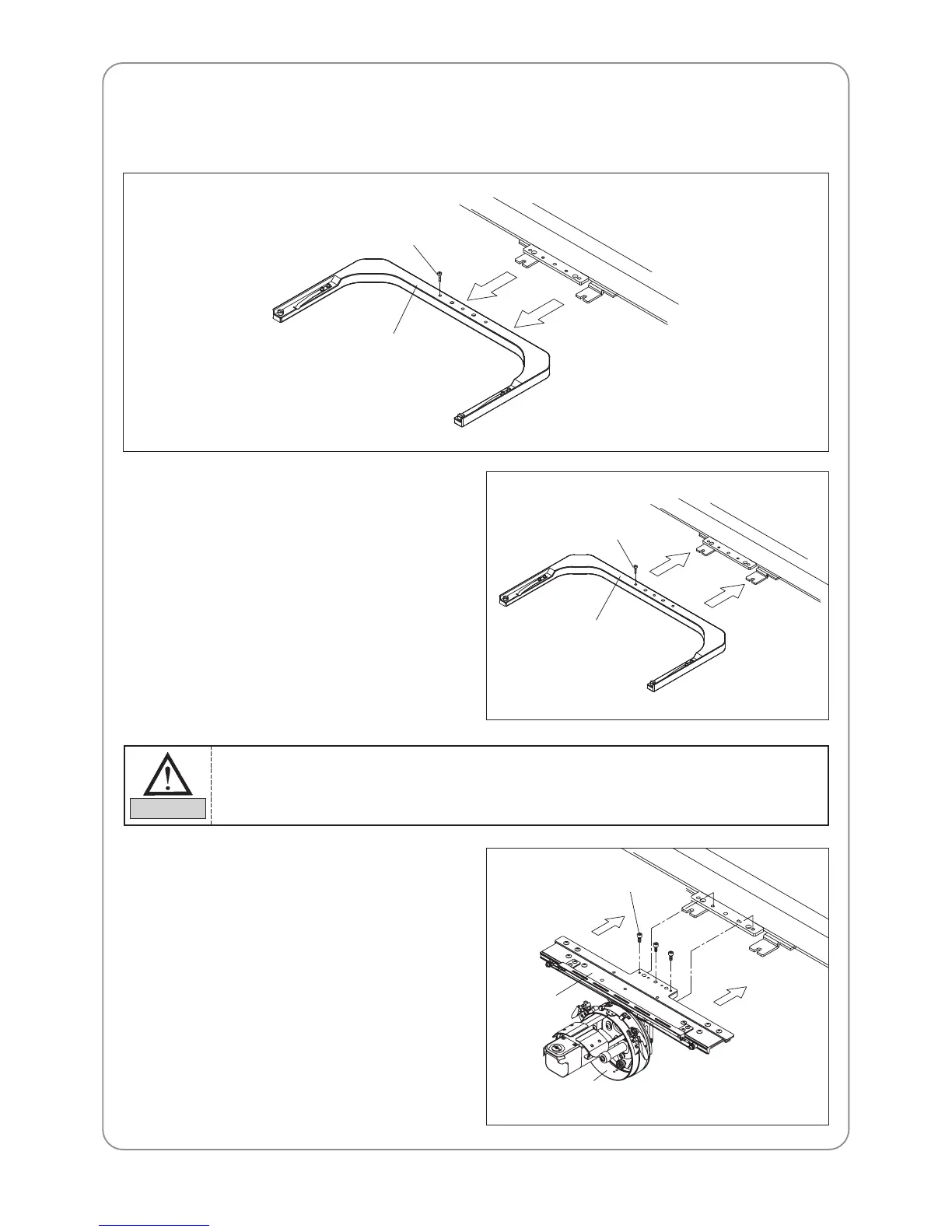

7.2.2) Assembling tubular frame plate
Use the fixing bolts to fix the tubular frame tightly to the frame connecting plate.
Fixing bolts
Tubular plate
Frame connecting plate
7.2.3) Changing tubular to cap
1) Disassembling the tubular plate
Unscrew the fixing bolts to separate the tubular
plate from the frame connecting plate.
2) Assembling the cap driving set
Use the fixing bolts to fix the cap driving set
tightly to the frame connecting plate.
Fixing bolts
Fixing bolts
Frame
connecting
plate
Driver ring
Cap frame
unit
Tubular plate
Frame connecting
plate
You will need the fixing bolts when installing the cap driving set. Keep them safe.
CAUTION
To Next Page
