3) Greasing the X, Y drive guide rail
– Disassemble the X-drive frame cover and body covers L-A, R-A.
– Push the guide block farthest to one side.
– Lift the timing belt with one hand and grease the entire part of the drive guide rail
– After greasing, assemble the cover back in the reverse order.

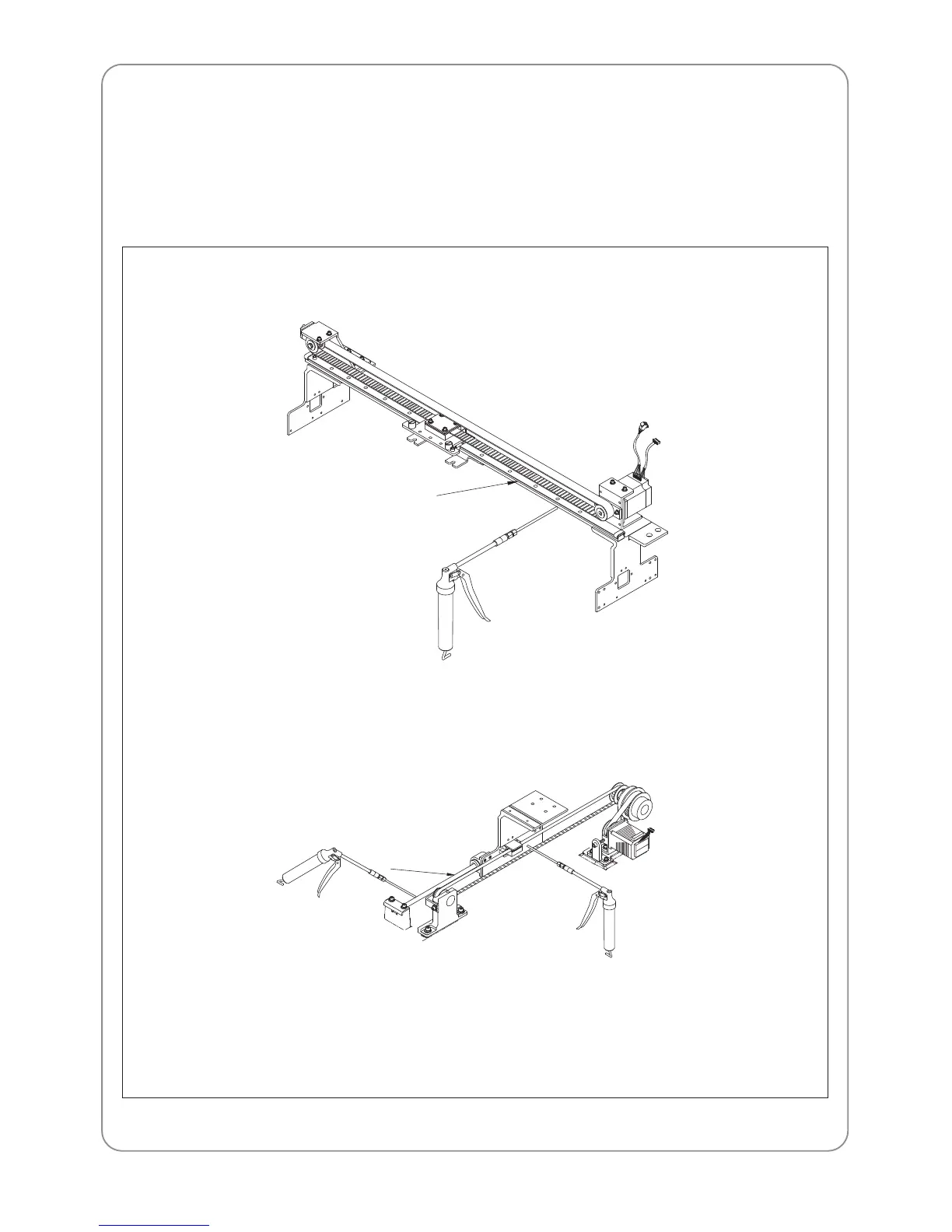

■ Layout of X, Y drive guide rail
■ Zoom-in the guide rail layout
Y-drive
②
②
