58

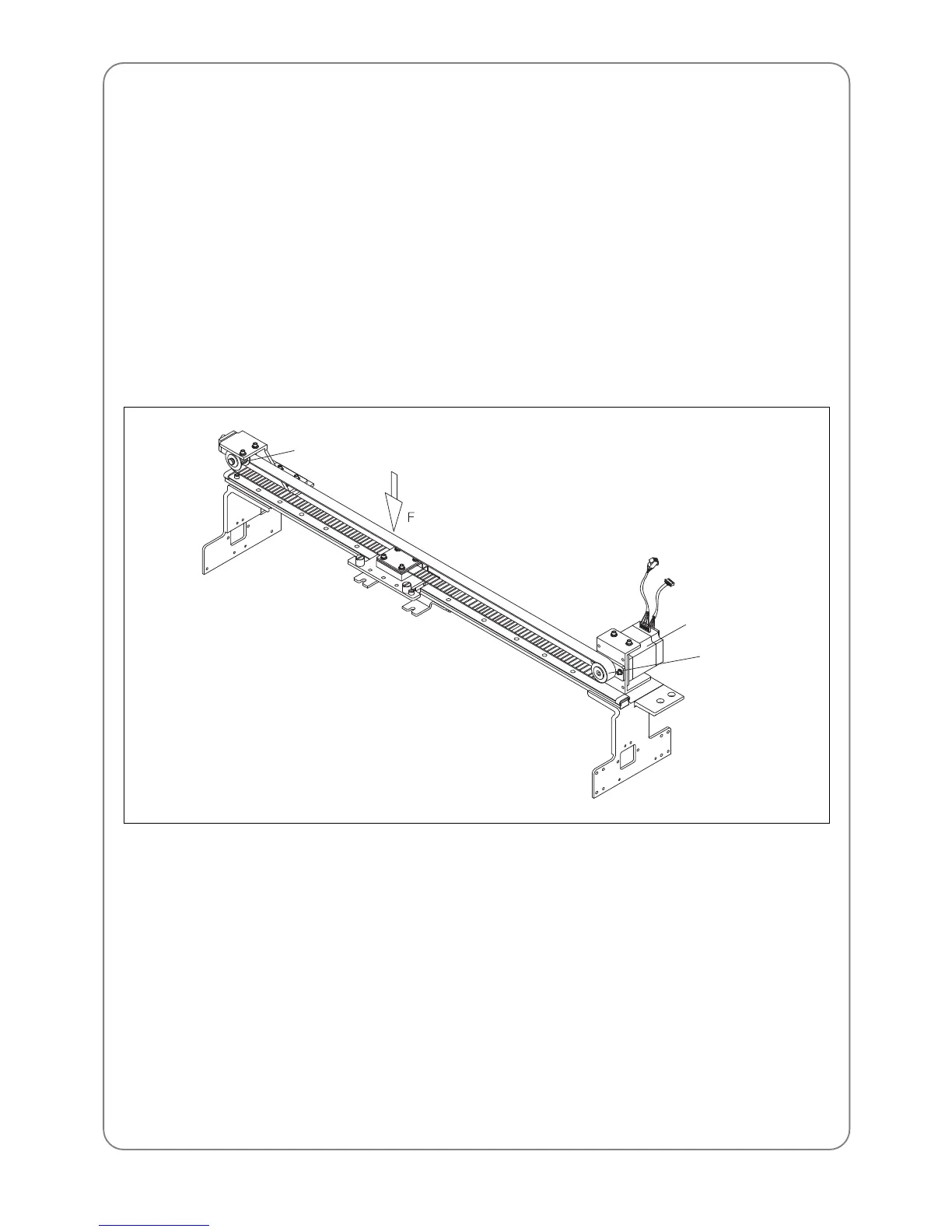

10.8.3) X-axis timing belt
– Push the frame plate fully to the right. Check the timing belt tension on X-axis using the sound wave tension
gauge.
– Tension on the X-axis timing belt should measure 14-15kgf on the sound wave gauge when you pluck the
middle of the belt with your finger or with a similar tool.
– Input data for the sound wave tension measurer
• Weight : 003.8gf/m
• Width : 015.0mm/#R
• Span : 583mm
– To adjust tension on the X-axis timing belt, unfasten the adjusting shaft nut of tension and adjusting nut.
And turn the tension adjusting bolt. Turn the bolt clockwise to increase the tension and counterclockwise to
decrease the tension.
Drive pulley
Driving Part
Driven pulley
To Next Page
