FITTED EQUIPMENT
99
! WARNING: Care should be taken to
ensure adequate ventilation of the flue at all
times. It is inadvisable to inhale exhaust fumes.
! WARNING: If 2 or 3 extensions
measuring 15cm are used, these must
be removed before a journey so that they
are not lost (risk of accident). A remaining
extension must be screwed down tight and
secured with a screw.
If a canopy is mounted to the motorhome, it
is compulsory that the exhaust cowl is guided
through the roof. Please use cowl leadthrough
UEK (part no. 30630 - 04)!
The heat exchanger, the exhaust duct and
all connections must be regularly inspected
by an expert, and always after deflagration
(misfiring).
The exhaust duct must:
• Be connected tight and fixed to the cowl
• Be made of one piece (without separators)
• Without cross-section narrowing and laid
rising along the whole length
• Mounted tight together with the insulating
duct with several clamps
No objects may be placed on the exhaust duct
as this could lead to damages.
! WARNING: Heating systems with
incorrectly mounted, a damaged exhaust
duct or a damaged heat exchanger may not
continue to be used!
Steps must be taken to ensure that the
warm air outlet of the heating system is
never obstructed. Therefore never place
textiles or similar to dry in front of or on the
heating system. Such misuse could cause
major damages to your heating system and
the textiles caused by overheating. Do not
place any flammable objects near the heating
system!
! WARNING: The heating system case
becomes hot during operation due to the
construction. The operator is responsible
for due diligence towards others (especially
small children).
It is compulsory to pay attention to the
operating instructions and ‘Important
Operating Notes’ when commissioning!
The vehicle owner is responsible for operation
of the device taking place correctly.

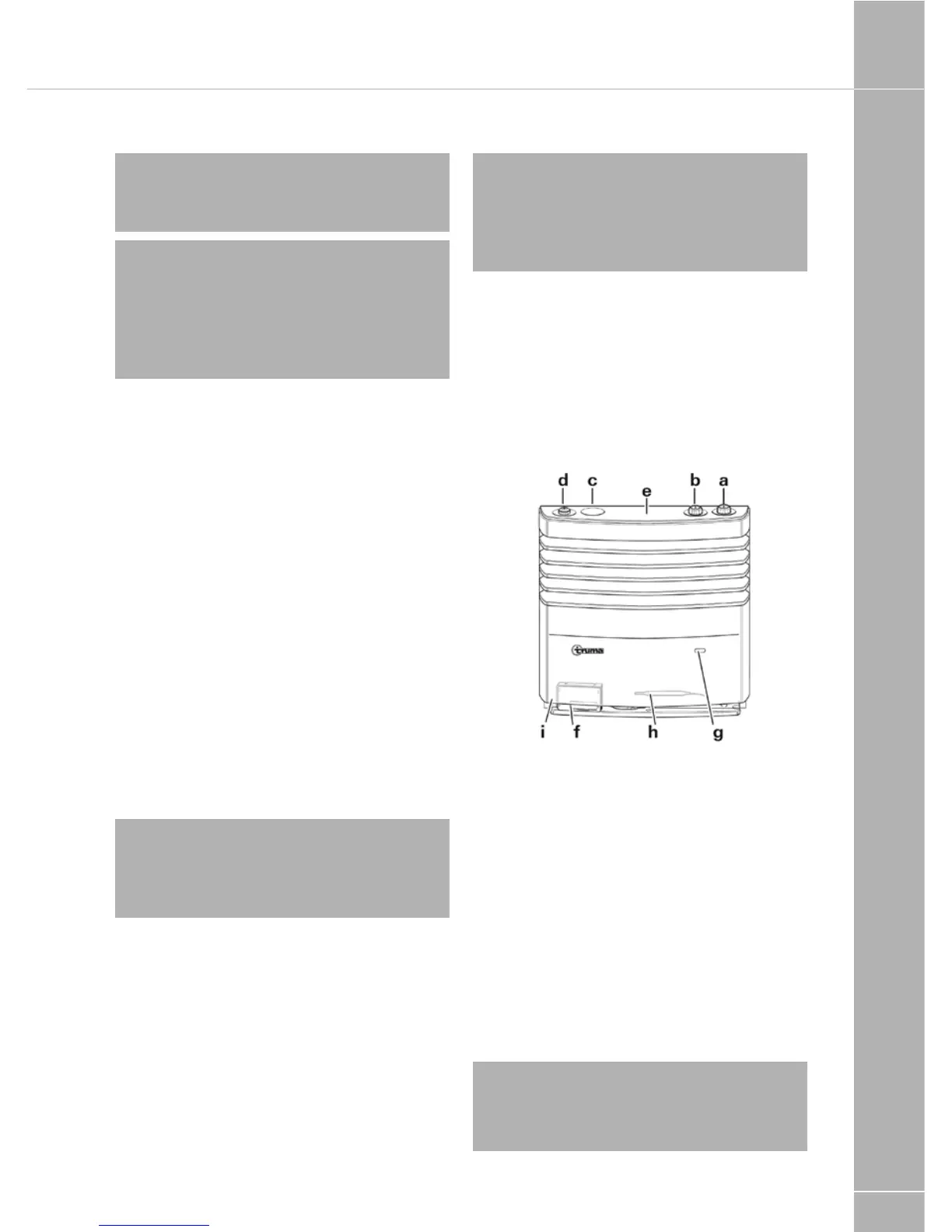

Operating instructions
S 3004 (P) heating system
a = Operating handle (thermostat)
b = Piezo pressure switch (S 3004 P)
c = Blind cover
d = Integrated panel for a Truma fan TEB-3
e = Sensor button to switch on the lighting
(optional)
f = Auto ignitor with battery compartment (S
3004)
g = Mica window to observe the flame
h = Thermostat sensor
i = Type plate (removable case!)
Note: The illustration shows installation
on the right. For installation on the left, the
parts are arranged on the other side (mirror-
image).
