SERVICES
62

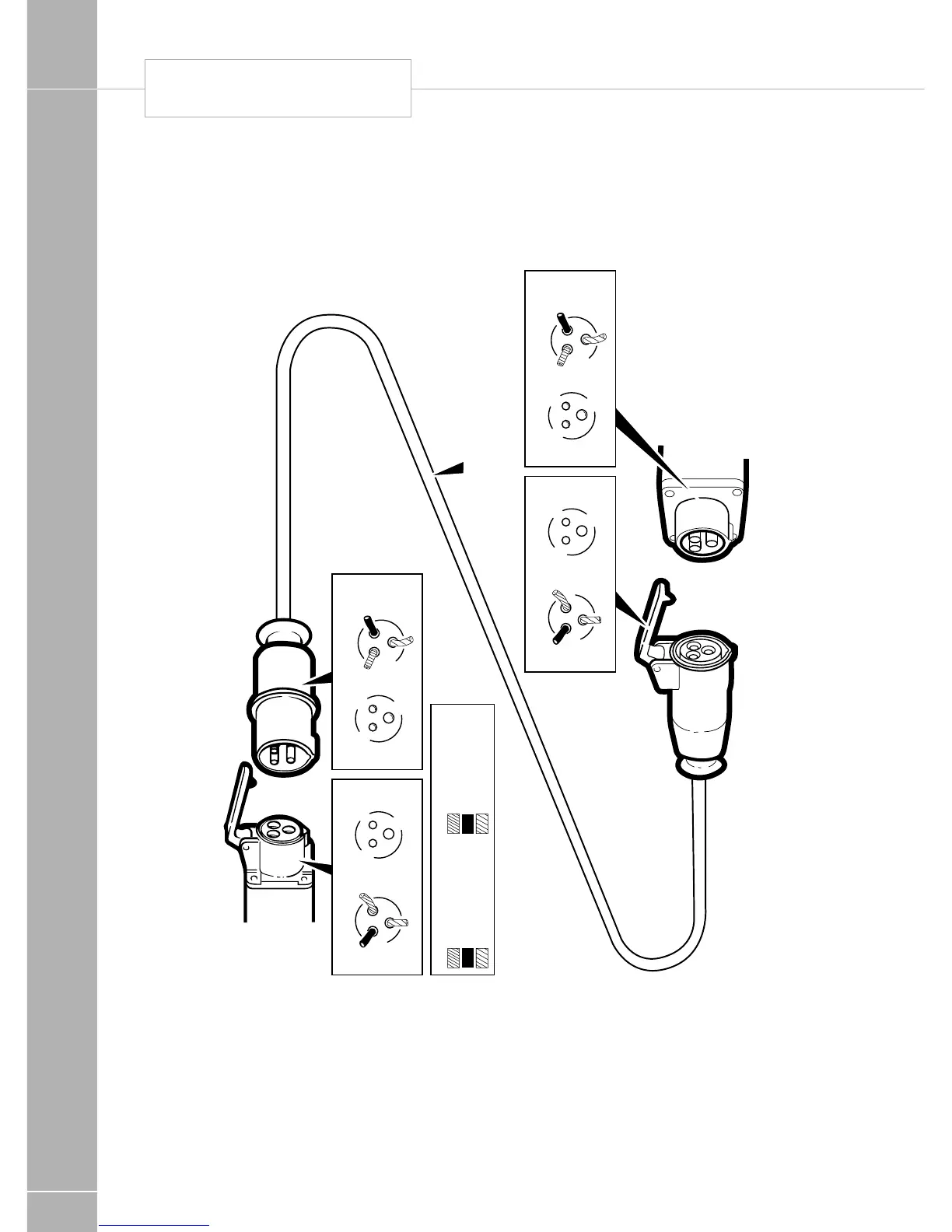

WIRING DIAGRAM
PITCH SUPPL
Y
OUTLET
CABLE COUPLER
MOTORHOME MAINS INLET
FLEXIBLE 3 CORE CABLE 2.5mm
2
VIEW OF
TERMINALS
FLEXIBLE WIRING
FIXED WIRING
VIEW OF
SOCKET TUBES
VIEW OF
PINS
VIEW OF
TERMINALS
BLACK
NEUTRAL
EARTH
GREEN &YELLOW
NEUTRAL BLUE
LIVE BROWN
EARTH GREEN & YELLOW
NEUTRAL BLACK
LIVE RED
EARTH GREEN & YELLOW
RED
LIVE
LIVE
LIVE
EARTH
EARTH
BROWN
LIVE
BLUE
NEUTRAL
EARTH
YELLOW & GREEN
NEUTRAL
NEUTRAL
VIEW OF
TERMINALS
VIEW OF
SOCKET TUBES
VIEW OF
PINS
VIEW OF
TERMINALS
BLUE
NEUTRAL
EARTH
GREEN &YELLOW
BROWN
LIVE
LIVE
LIVE
EARTH
EARTH
BROWN
LIVE
BLUE
NEUTRAL
EARTH
YELLOW & GREEN
NEUTRAL
NEUTRAL
Wiring of connecting cable and motorhome mains inlet
The legal length of the mains inlet cable is 25 ± 2 metres. When in use it must be fully uncoiled and protected from traffic.
62
64
