OMNISTEP SINGLE STEP / SIDE AWNING
Omnistep single step
Operation
The OMNISTEP is operated by the lever
switch.
Important: when extending the step, hold the
switch until the step is completely extended.
Never mount the step if retracted of if not fully
extended, because then the blocking is not
working and the motor can be damaged.
Check if the step is retracted before departure.
Maintenance
Dirt and frost can prevent the step from
operating properly. In this case the moving
parts should be cleaned or defrosted.
All points of movement are layered in
maintenance-free bearings.
In case of electrical failure
If the step does not retract by motor: Loosen
the square connection according to fig. 5
(actions 1, 2 and 3), push the footboard in (4)
and tie it to the frame.
Current drawn
5 A. When fully extended or retracted: 14-18 A

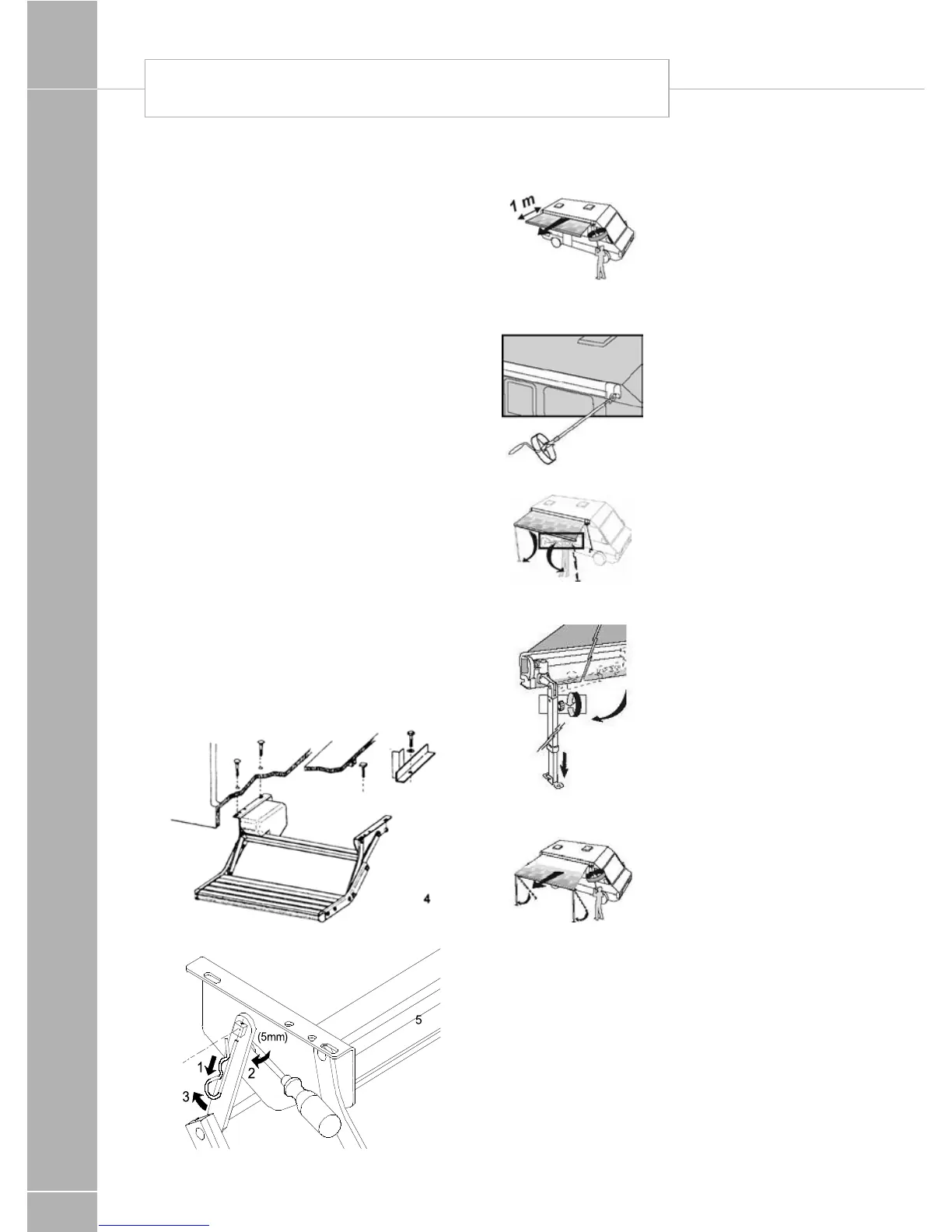

Fig. 4
Fig. 5
Fiamma F45S/F45L side awning
In order to avoid
unnecessary strain on the
awning as well as on the
vehicle side, we suggest
that the legs be extended
about 1m from the
opening.
Unscrew the leg knob to
slide the leg out of its
seat.
Grasp the leg near its
hingejoint and pull it in a
horizontal direction.
Lower the leg as shown
in the figure.
After unrolling the awning
completely, adjust the
legs at the chosen
height.
To avoid that the awning is lifted up by an
unexpected gust of wind, it is necessary
to secure the legs to the ground with the
provided hooks. For greater safety, we strongly
advise you also use some storm cords in the
upper part of each support leg or anchor the
awning with the Fiamma Tie-Down Kit strap.
